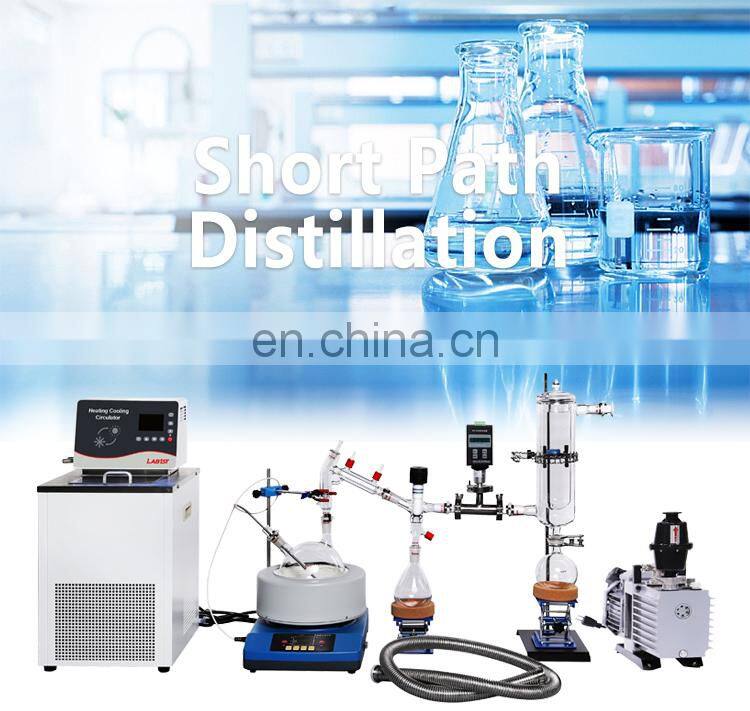

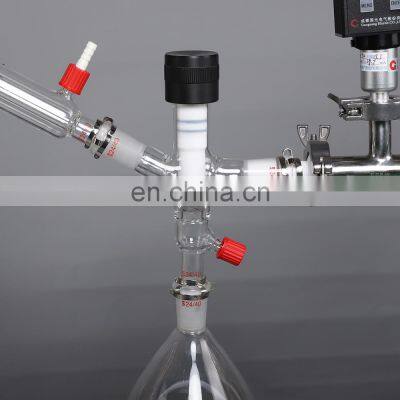

Stock Available Lab Shortpath 2L 5L 10L 20L Short Path Distillation Kit

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.

Our Team

Office in China

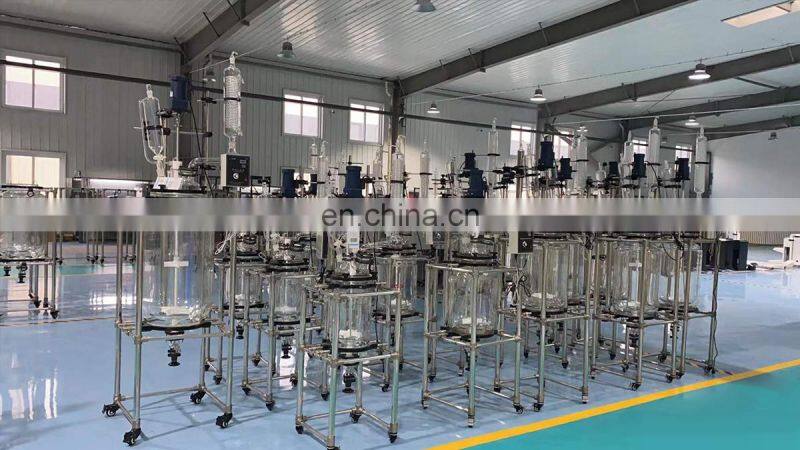

Warehouse in USA

Warehouse in China

Products Description

Model			SPD-02N	SPD-05N	SPD-10N	SPD-20N
Material			Borosilicate Glass 3.3				Borosilicate Glass 3.3
Heating Temperature			Ambient to 300℃				Ambient to 300℃
Working Pressure			Around 5 Pa				Around 5 Pa
Distillation Vessel Volume (L)			2	5	10	20
Receiving Vessel	Volume (mL)	2 x 500mL	2 x 1000mL	2 x 2000mL	4 x 2000mL
Receiving Vessel		Interface specification	24/40 joint				24/40 joint

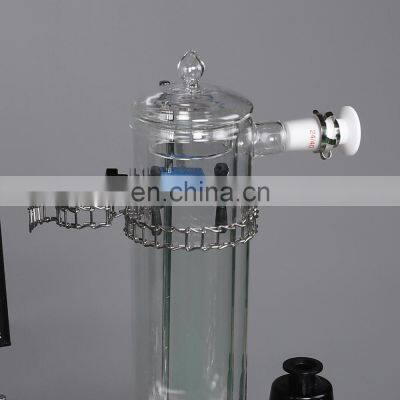

Cold Trap	Dry Ice Volume	1L			1L		2 x 1L

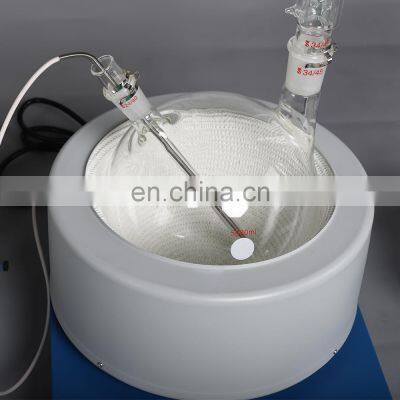

Heating Mantle	Heating Power (w)	600	1100	2100	3000
		Rotating Speed (r/min)	50-1800				50-1800
		Motor Power (w)	40				40
		Dimension (WxHxD mm)	460x190x280	460x270x340	440x240x340	515x515x340
		Inner sleeve Diameter (mm)	170	235	300	375
		Inner sleeve Depth (mm)	105	140	185	215
Vacuum Pump	Model	EV Series Vacuum Pump				EV Series Vacuum Pump
	Vacuum Pump	Pumping Rate (CFM)	5	5	10	2x10
		Ultimate Vacuum	Better than 5 Pa				Better than 5 Pa
Cooling Circularor	Model	DC-05-06L		DC-05-06L	DC-05-15L
		Cooling Temperature	-5℃ ~ 85℃				-5℃ ~ 85℃
		Thermally Conductive Liquid	Anhydrous ethanol or ethylene glycol:Water = 55:45				Anhydrous ethanol or ethylene glycol:Water = 55:45
General	Voltage	110V 60Hz or 220V 50/60Hz, 1-Phase				110V 60Hz or 220V 50/60Hz, 1-Phase

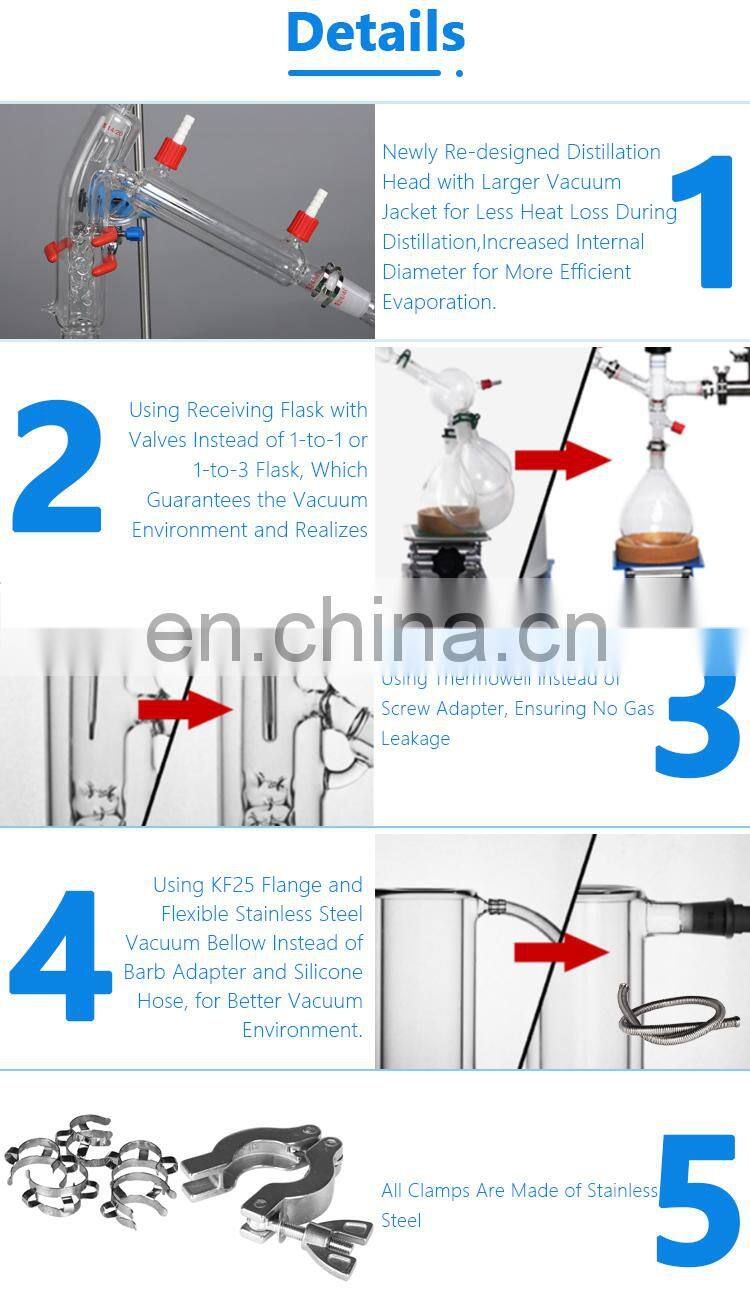

Details

Customer Reviews

Recommend Products

About Us

FAQ

1.How many ports on the lid? There are 6 standard ports on the lid of 10L to 200L reactors, including thermometer, vacuum suction, solid inlet, constant pressure funnel, reflux and stirring port. For 1L to 5L reactors, only 5ports on the lid without solid inlet port. 2.Can you provide other type impellers/blades? Yes, different kinds of blades for your choices, such as pitch blade, anchor blade, sprial propeller blade, ribbon blade, pitch-blade, angled pitch blade, rushton blade, etc. 3.Can I make some changes on this reactor? No problem, we provide customization service. 4.What’s size of the adapters of the vessel? They are standard barb or male thread adapters. Please refer to our detailed data specification. 5.Can this reactor make isolate? Yes, you can use it for isolation by high experienced operators. If you are not familiar with the operation technology, our special designed isolation/crystallization reactor will be your best choice.
