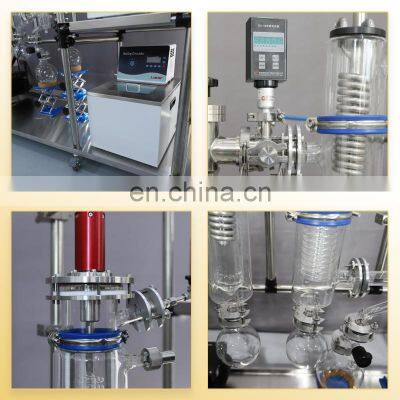

Lab Glass Wiped Film Short Path Molecular Distillation Unit
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Glass Wiped Film Short Path Distiller Molecular Distillation Unit for SaleNegotiableMOQ: 1 -
Short Path Glass Vacuum Wiped Film Evaporator Molecular Distillation System EquipmentNegotiableMOQ: 1
-
Laboratory Vaccum Glass Short Path Rolled Film Thin-Film Mulecular Evaporator Distillation EquipmentNegotiableMOQ: 1
-
Fast Shipping Thin Film Short Path Molecular Distillation EquipmentNegotiableMOQ: 1
-
Lab Fully Jacketed Pipelines Glass Wiped Film Evaporator Molecular Distillation for SaleNegotiableMOQ: 1
Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Our Office
Warehouse in USA
Warehouse in China
Clients Cases
Products Description
Model | GMD-100 | GMD-150 | GMD-200 | ||
General Feeding Rate (kg/h) | 0.75~7.5 | 1.25~12.5 | 1.75~17.5 | ||
Throughput - CBD Oil (kg/h) | 1.5 - 3 | 2.5 - 5 | 3.5 - 7 | ||
Effective Evaporationn Area (㎡/sqft) | 0.15/1.6 | 0.25/2.7 | 0.35/3.8 | ||
Evaporator Internal Diameter (mm/inch) | 100/4.0 | 150/6.0 | 200/7.9 | ||
Feeding Funnel Volume (L) | 2 | 3 | 5 | ||

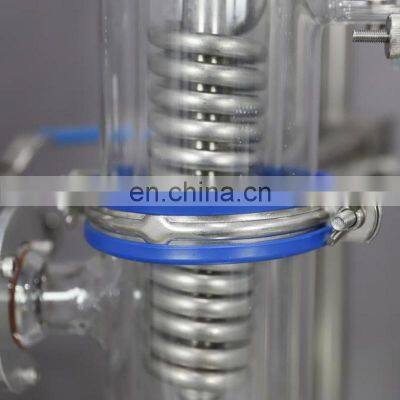

Internal Condenser Area (㎡) | 0.3 | 0.4 | 0.5 | ||
Distillate Receiving Vessel Volume (L) | 2 | 5 | 5 | ||
Residue Receiving Vessel Volume (L) | 1 | 3 | 5 | ||
Wiping Motor Power (W) | 120 | ||||
Maximum Speed (rpm) | 400 | ||||
Stirrer Seal | Oil-less Magnetic, High Vacuum | ||||
Wiper | PTFE Scraper | ||||
Material | Borosilicate Glass 3.3 / SS316L (wet parts) / SS304 (frame) | ||||
Vacuum Gauge | Pirani Style | ||||
Operation Temperature | Up to 250℃ | ||||
Vacuum Degree | Better than 10 Pa | ||||
Voltage | 220V-Single Phase / Customizable | ||||
Dimension (LxWxH mm) | 2120 x 1740 x 628 | 2270 x 1940 x 628 | 2420 x 2040 x 628 | ||

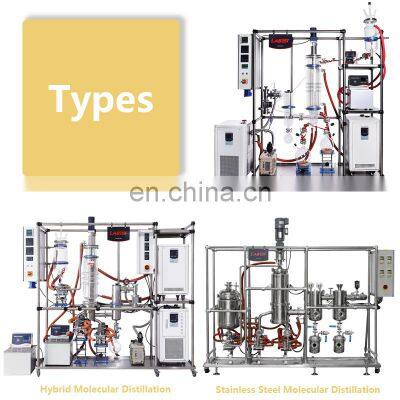

Optional

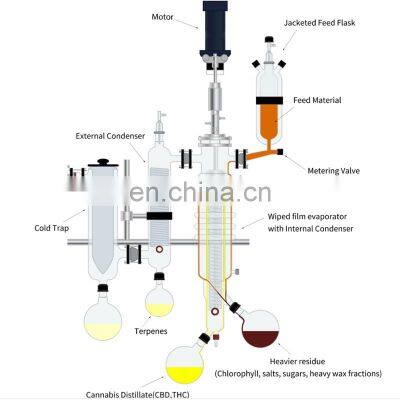

Standard Wiped Film Distillation Unit
1.Evaporator Unit : Standard with Dewar-style Cold Trap
2.Main Heater: 5kw Heating Power, Up to 300c
3.Pre-heater Heater/chiller for Internal Condenser: 1.5kw Heating Power, Up to 300c
4.Rotary Vane Pump: 6l/s Gas Displacement
1.Evaporator Unit : Standard with Dewar-style Cold Trap
2.Main Heater: 5kw Heating Power, Up to 300c
3.Pre-heater Heater/chiller for Internal Condenser: 1.5kw Heating Power, Up to 300c
4.Rotary Vane Pump: 6l/s Gas Displacement
5.Peristaltic Pump Module for Continuous Inlet
6.Glass Valve Module for Continuous Outlet
7.Diffusion Pump:80l/s Gas Displacement for Higher Vacuum
1.Evaporator Unit with Dewar-style Cold Trap;
2.Main Heater: Up to 300℃
3.Pre-heater: Up to 300℃
4.Heater/chiller for Internal Condenser: -25℃ to 180℃
5.Rotary Vane Pump: 6l/s Gas Displacement
6.Additional Terpene Condenser
7.Chiller for Terpene Condenser: Down to -20℃
8.Peristaltic Pump Module: for Continuous Inlet
9.Glass Valve Module: for Continuous Outlet
10.Diffusion Pump Chiller for Cold Trap: Down to -80℃
