Lab1st Short Path Shortpath Molecular Distillation Distiller Machine

Lab1st Short Path Shortpath Molecular Distillation Distiller Machine thumbnail-1
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine thumbnail-2
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine thumbnail-3
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine thumbnail-4
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine thumbnail-5
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine photo-1
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine photo-2

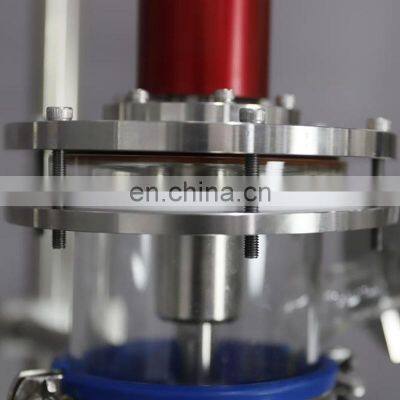

Lab1st Short Path Shortpath Molecular Distillation Distiller Machine photo-3

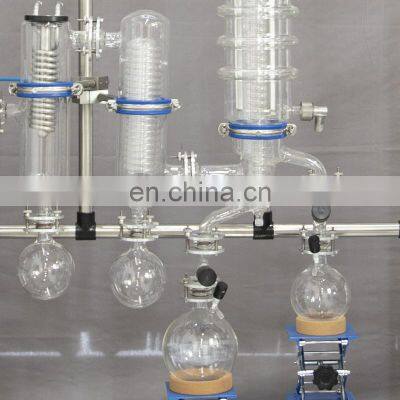

Lab1st Short Path Shortpath Molecular Distillation Distiller Machine photo-4
Lab1st Short Path Shortpath Molecular Distillation Distiller Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Labfirst Scientific Instruments (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Our Office
Warehouse in USA
Warehouse in China
Clients Cases
Products Description
Model
GMD-100
GMD-150
GMD-200
General Feeding Rate (kg/h)
0.75~7.5
1.25~12.5
1.75~17.5
Throughput - CBD Oil (kg/h)
1.5 - 3
2.5 - 5
3.5 - 7
Effective Evaporationn Area (㎡/sqft)
0.15/1.6
0.25/2.7
0.35/3.8
Evaporator Internal Diameter (mm/inch)
100/4.0
150/6.0
200/7.9
Feeding Funnel Volume (L)
2
3
5
Internal Condenser Area (㎡)
0.3
0.4
0.5
Distillate Receiving Vessel Volume (L)
2
5
5
Residue Receiving Vessel Volume (L)
1
3
5
Wiping Motor Power (W)
120
Maximum Speed (rpm)
400
Stirrer Seal
Oil-less Magnetic, High Vacuum
Wiper
PTFE Scraper
Material
Borosilicate Glass 3.3 / SS316L (wet parts) / SS304 (frame)
Vacuum Gauge
Pirani Style
Operation Temperature
Up to 250℃
Vacuum Degree
Better than 10 Pa
Voltage
220V-Single Phase / Customizable
Dimension (LxWxH mm)
2120 x 1740 x 628
2270 x 1940 x 628
2420 x 2040 x 628
Optional






Standard Wiped Film Distillation Unit
1.Evaporator Unit : Standard with Dewar-style Cold Trap 2.Main Heater: 5kw Heating Power, Up to 300c 3.Pre-heater Heater/chiller for Internal Condenser: 1.5kw Heating Power, Up to 300c 4.Rotary Vane Pump: 6l/s Gas Displacement



Upgraded Wiped Film Distillation Unit
1.Evaporator Unit : Standard with Dewar-style Cold Trap 2.Main Heater: 5kw Heating Power, Up to 300c 3.Pre-heater Heater/chiller for Internal Condenser: 1.5kw Heating Power, Up to 300c 4.Rotary Vane Pump: 6l/s Gas Displacement 5.Peristaltic Pump Module for Continuous Inlet 6.Glass Valve Module for Continuous Outlet 7.Diffusion Pump:80l/s Gas Displacement for Higher Vacuum

Fully Upgraded Wiped Film Distillation Unit
1.Evaporator Unit with Dewar-style Cold Trap; 2.Main Heater: Up to 300℃ 3.Pre-heater: Up to 300℃ 4.Heater/chiller for Internal Condenser: -25℃ to 180℃ 5.Rotary Vane Pump: 6l/s Gas Displacement 6.Additional Terpene Condenser 7.Chiller for Terpene Condenser: Down to -20℃ 8.Peristaltic Pump Module: for Continuous Inlet 9.Glass Valve Module: for Continuous Outlet 10.Diffusion Pump Chiller for Cold Trap: Down to -80℃
