Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator

Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator thumbnail-1
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator thumbnail-2
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator thumbnail-3
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator thumbnail-4
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator thumbnail-5
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator photo-1
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator photo-2
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator photo-3
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator photo-4
Turnkey Solution Short Path Fractional Vacuum Distillation Unit in Evaporator photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Labfirst Scientific Instruments (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Office in China
Warehouse in USA
Warehouse in China
Products Description
Model

SPD-02N
SPD-05N
SPD-10N
SPD-20N
Material

Borosilicate Glass 3.3
Borosilicate Glass 3.3


Heating Temperature

Ambient to 300℃
Ambient to 300℃


Working Pressure

Around 5 Pa
Around 5 Pa


Distillation Vessel Volume (L)

2
5
10
20
Receiving Vessel
Volume (mL)
2 x 500mL
2 x 1000mL
2 x 2000mL
4 x 2000mL
Interface specification
24/40 joint
24/40 joint


Cold Trap
Dry Ice Volume
1L
1L

2 x 1L




Heating Mantle
Heating Power (w)
600
1100
2100
3000
Rotating Speed (r/min)
50-1800
50-1800


Motor Power (w)
40
40


Dimension (WxHxD mm)
460x190x280
460x270x340
440x240x340
515x515x340
Inner sleeve Diameter (mm)
170
235
300
375
Inner sleeve Depth (mm)
105
140
185
215

Vacuum Pump
Model
EV Series Vacuum Pump
EV Series Vacuum Pump


Vacuum Pump
Pumping Rate (CFM)
5
5
10
2x10
Ultimate Vacuum
Better than 5 Pa
Better than 5 Pa

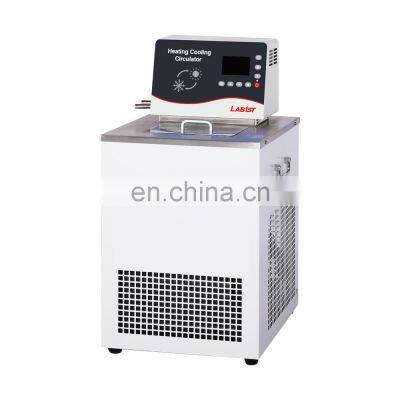

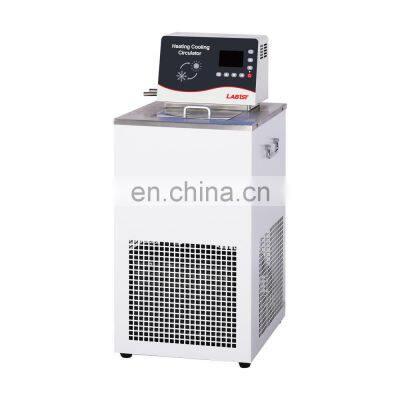

Cooling Circularor
Model
DC-05-06L
DC-05-06L
DC-05-15L

Cooling Temperature
-5℃ ~ 85℃
-5℃ ~ 85℃


Thermally Conductive Liquid
Anhydrous ethanol or ethylene glycol:Water = 55:45
Anhydrous ethanol or ethylene glycol:Water = 55:45


General
Voltage
110V 60Hz or 220V 50/60Hz, 1-Phase
110V 60Hz or 220V 50/60Hz, 1-Phase


Details
Customer Reviews
Recommend Products
About Us
FAQ
1.How many ports on the lid? There are 6 standard ports on the lid of 10L to 200L reactors, including thermometer, vacuum suction, solid inlet, constant pressure funnel, reflux and stirring port. For 1L to 5L reactors, only 5ports on the lid without solid inlet port. 2.Can you provide other type impellers/blades? Yes, different kinds of blades for your choices, such as pitch blade, anchor blade, sprial propeller blade, ribbon blade, pitch-blade, angled pitch blade, rushton blade, etc. 3.Can I make some changes on this reactor? No problem, we provide customization service. 4.What’s size of the adapters of the vessel? They are standard barb or male thread adapters. Please refer to our detailed data specification. 5.Can this reactor make isolate? Yes, you can use it for isolation by high experienced operators. If you are not familiar with the operation technology, our special designed isolation/crystallization reactor will be your best choice.
