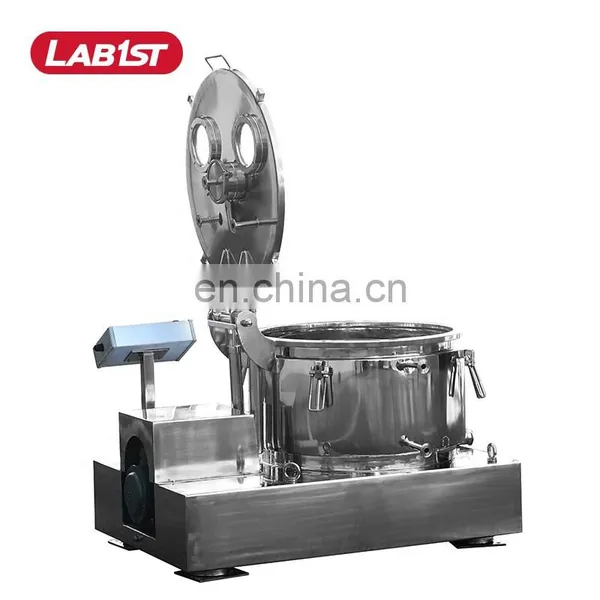

Ethanol Extraction Equipment Cooling Centrifuge Extractor

Name: Ethanol Extraction Equipment Cooling Centrifuge Extractor
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Description

Products Description

Product Paramenters

Model	LXJ-450	LXJ-600	LXJ-800	LXJ-1000	LXJ-1200
Basket Diameter (mm)	450	600	800	1000	1200
Basket Volume (L)	60	110	180	290	530
Biomass per Batch (lbs)	15	30	50	90	150
Biomass per 8Hr Shift (lbs)	300	600	1000	1800	3000
Liquid Volume (L/Gal)	100/26	170/45	340/90	570/150	870/230
Temperature Rating (oC)	-60
Max Speed (rpm)	1900	1250	1200	1000	950
Motor Power (kW)	2	4	7.5	11	18.5
Weight (kg)	400	810	1700	2500	3300
Centrifuge Dimension (LxWxH mm)	1000x750x800	1300x900x1010	1750x1250x1080	2000x1450x1140	2300x1600x1470
Control Cabinet Dimension	500x400x1200 (LxWxH mm)
Control	PLC Touch Screen
Certification	GMP Standard, UL Optional
Electricity	240V, 3 Phase, 60Hz or Customizable

Details Images
