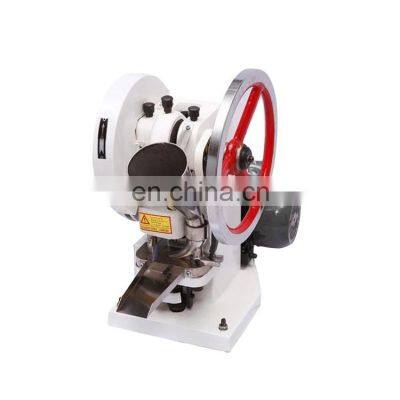

Tdp Series Table Top Tablet Press Machine
Product introduction
Native to the wafer various granular materials, applicable to lab test or small batch production of tablets, sugar tablets, calcium tablet, abnormity, etc.Its characteristic is a small desk-top continuous tabletting machines, electric hand.Can be installed on a pair of punching die, the depth of the filling material, the thickness of the tablet can be adjusted.
Technical parameters
|
Model |
TDP-0 |
TDP-1.5 |
TDP-2 |
TDP-3 |
TDP-4 |
|
Max. Production Capacity (pc/h) |
6000 |
6000 |
6000 |
6000 |
6000 |
|
Max. Diameter of Tablet (mm) |
10 |
12 |
13 |
14 |
15 |
|
Max. Thickness of Tablet (mm) |
6 |
6 |
6 |
6 |
6 |
|
Max. Filling Depth (mm) |
12 |
12 |
12 |
12 |
12 |
|
Max. Main Pressure (KN) |
10 |
15 |
20 |
30 |
40 |
|
Motor (V) |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
|
Power (KW) |
0.37 |
0.37 |
0.37 |
0.55 |
0.55 |
|
Length (mm) |
530 |
530 |
530 |
680 |
680 |
|
Width (mm) |
340 |
340 |
360 |
440 |
450 |
|
Heigh (mm) |
570 |
570 |
570 |
740 |
740 |
|
Weight (kg) |
35 |
60 |
75 |
80 |
95 |
