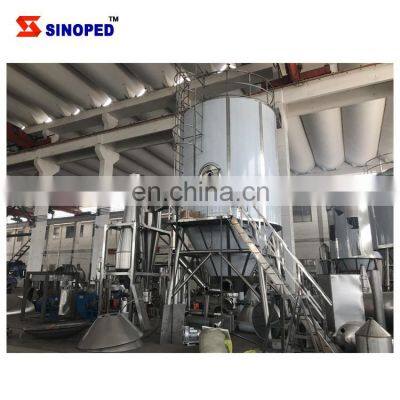

LPG100 High Speed Centrifugal Spray Drying Equipment for Tea Milk Egg Coffee
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FL120 Fluid Bed Hot Air Dryer Granulator Drying Equipment for Instant ElectuaryNegotiableMOQ: 1 -
Vertical Conical Stainless Steel Food Powder Rice Grain Ribbon Agitating Mixing MachineNegotiableMOQ: 1
-
100-1000ml Cream Cosmetic Cream Filling Packaging MachineNegotiableMOQ: 1
-
Semi-Auto Empty Powder Capsule Filler Filling Machine PLC ScreenNegotiableMOQ: 1
-
LPG-5 Spray Dryingl Equipment Powder Coffee Egg Vegetable Centrifugal Spray Dryer AtomizerNegotiableMOQ: 1
Product Description
The spray drying is the technology widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing the powder, particle or block solid products from the materials, such as: solution, emulsion, soliquoid and pumpable paste states. For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies.
Detailed Images
Spiral-shaped hot air evenly into the drying chamber. By passing through the high-speed centrifugal spray at the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through the very short time of contacting the heat air,the materials can be dried into the finished products. The finished products will separator. The waste gas will be discharged from blower.
Features
At a high speed of drying, after the spraying of the liquid material , the surface area of the material will be increased greatly. In the hot-air flow, 95%-98%of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
Products with good uniformity, mobility and solubility, high purity, good quality.
The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40-60%(for special materials, The contents may reach 90%).can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
Technical Parameters
Flow chart
Notes:Customers can choose the way of heat in accordance with the conditions of local energy source and the way of dust removing in accordance with the conditions of raw material.
Type
Parameter
Item
|
LPG |
||||||||||
5 |
25 |
50 |
100 |
150 |
200-2000 |
||||||
Inlet temperature(°C) |
140-350
automatically controlled
|
||||||||||
Outlet temperature(°C) |
80-90 |
||||||||||
Max.water evaporation capacity(kg/h) |
5
|
25
|
50
|
100
|
150
|
200-2000
|
|||||
Way of atomizing |
Compressed air transmission |
Mechanical transmission
|
|||||||||
Rotation speed(rpm) |
25000 |
18000 |
18000 |
18000 |
15000 |
8000-15000 |
|||||
Diameter of atomizing tray(mm) |
50
|
100
|
120
|
140
|
150
|
180-340
|
|||||
Heat supply |
Electricity |
Electricity+
steam
|
Electricity+steam, fuel oil and gas |
Settled by users themselves |
|||||||
Max Electric heating power(kw) |
9
|
36
|
63
|
81
|
99
|
||||||
L*W*H(m) |
1.8*0.93*2.2 |
3*2.7*4.26 |
3.7*3.2*5.1 |
4.6*4.2*6 |
5.5*4.5*7 |
Decided according to be concrete conditions |
|||||
Dried powder restoring rate(%) |
≥95 |
||||||||||
Product Application
