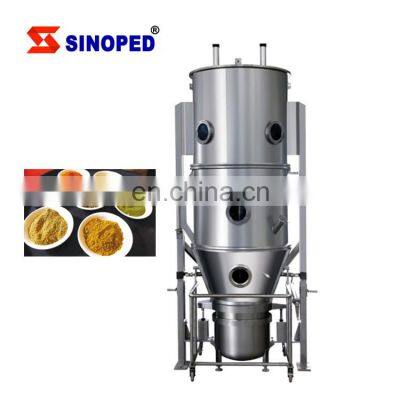

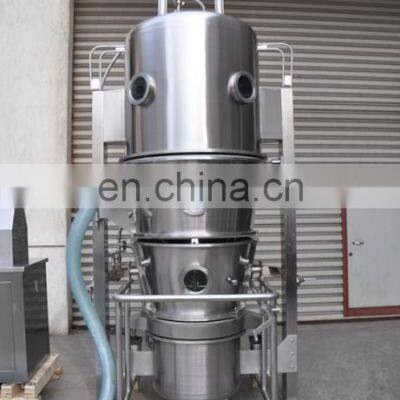

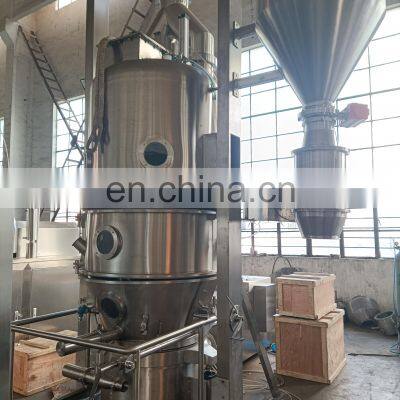

Cheap Drying Equipment Powder Fluid Bed Bottom Spray Coater Granulator Dryer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pharmaceutical Grade Fluid Bed Dryer Big Capacity Sea Salt Fluid Bed Dryer Machine Salt DryerNegotiableMOQ: 1 -
High Efficiency Milk Cheese Protein Powder Desiccated Coconut Fluid Bed Dryer for FoodNegotiableMOQ: 1
-
ZPS-8/10 High Speed D Tolling Rotary Milk Sugar Salt Tablet Press MachineNegotiableMOQ: 1
-
ZPS-8 ZPS-10 High Speed Effervescent Tablet Press Machinery With High QualityNegotiableMOQ: 1
-
ZP8 ZP10 Max.23mm Diameter Big Tablet Rotary Tablet Press High Speed Rotary Tablet Press MachineNegotiableMOQ: 1
Product Description
Machine Introduction:
The fluid bed boiling granulation dryer is also called a one-step granulator, which uses the bonding effect of the binder during granulation to bridge and agglomerate solid powders, thereby gradually forming granules.
Process Introduction:
The powder material for granulation is put into the fluidized bed, the cold air enters through the filter, is heated by the heater, the temperature of the cold air rises to the process temperature, enters the fluidized bed, so that the powder circulates in a fluidized state and sprays at the same time into the mist-like binder, the powder in the container is moistened, so that the powder agglomerates into loose small particles. At the same time as the granules, the water continuously evaporates, and the dust rises to the dust collector. The dust is isolated and continued, and the water is removed from the hot air. take away. After the particles meet the process requirements, stop spraying the adhesive, and continue to dry to the requirements, stop the material to complete the entire production process.
Technical Parameters
Items |
Parameters |
Unit |
Model |
FL-120 High efficiency fluidized bed dryer |
- |
Capacity |
120 |
kg/batch |
Volume |
420 |
L |
Power |
20 |
kw |
Steam heater |
60 |
m2 |
Pressure of steam |
0.4-0.6 |
Mpa |
Consumption of steam |
210 |
kg/h |
Related Products
Packaging & Shipping
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd.
(SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Our Service & FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
