Disposable Syringe Manufacturing Line

Disposable Syringe Manufacturing Line thumbnail-1
Disposable Syringe Manufacturing Line thumbnail-2
Disposable Syringe Manufacturing Line thumbnail-3
Disposable Syringe Manufacturing Line thumbnail-4
Disposable Syringe Manufacturing Line thumbnail-5
Disposable Syringe Manufacturing Line photo-1
Disposable Syringe Manufacturing Line photo-2
Disposable Syringe Manufacturing Line photo-3
Disposable Syringe Manufacturing Line photo-4
Disposable Syringe Manufacturing Line photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Product Application

What we can provide to you is the complete production line,and any parts of the the line. Tell us what production you want,and then let us to deal with it. choose us you will get a good quantity produvtion line. Choose us you will get a considerable service. Choose us you don't need to worry about anything. Here are the details of the producion line.

Item Unit Data




                                                                       Syringe shaper
Item
Unit
 Data
Max. clamping force
KN
 2400
Max. opening force
mm
530
Mould height(min-max)
mm
200-570
Max. daylight
mm
1100
Theoretical shot volume
cm3
665
791
929
Plasticising weight(PS)
g
605
720
845
Injection pressure
Mpa
210
176
150
Theoretical injection rate(PS)
g
176.5
210
245
Plasticising capacity(PS)
g/s
26.4
32.5
40
Pump motor power
KW
22
Pump pressure
Mpa
16
Heating power
KW
18.5

Tips

1) Simple structure type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly with filling machine .

Detailed Images

Production line Parts

Name: Disposable syringe automic assembling machine

Brand: Sinoped

Original: China

1 Product specifications: 1ml 3ml 5ml 10ml
2 Production capacity: 12,000 pieces/hour
3 Device dimensions: 4800x2300x2200 (mm);
4 Personnel: an operator / station;
5 Feeding: the silo to mention material, automatic centrifugal material, there is the material no material automatic control;

Name: Syringe automatic round screen printing machine
Brand: Sinoped
Original: China
1 Product specifications: 0.5 ml, 1ml, 2ml, 5ml, 10ml, 20ml, 30ml, 50ml, 60ml
2 The production capacity of not less than 5,000 / hour: normal production state;
3 Device dimensions: 3600X2700X2200mm;
4 Temperature regulation: the inside temperature at room temperature up to -100 ℃ temperature control automatically thermostatically controlled cabinet surface temperature ≤ 40 ° C;
5 Personnel: an operator / station;

Name:  Disposable syringe pillow type packaging machine
Brand: Sinoped
Original:China
Maximum film width 450mm
Packing speed 30-180pack/min
Bag cutting length 75-350mm
Product width 20-130mm
Product height 1-35mm
Total power 380v 4kw
Overall size 5050*960*1710mm

Name:Name: Oxirane sterilizing machine
Brand: Sinoped
Original: China
Technical parameter:
Volume: 1000L
Effective size: 101×101×100 cm
Overall size: 120×170×120 cm

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

Training :We provide whole technology training in our factory free .
Installation: if you request ,we can send engineer to your factory for installation and training ,you need pay round trip tickets,visa fees,salary usd80/day .it takes about 20days.

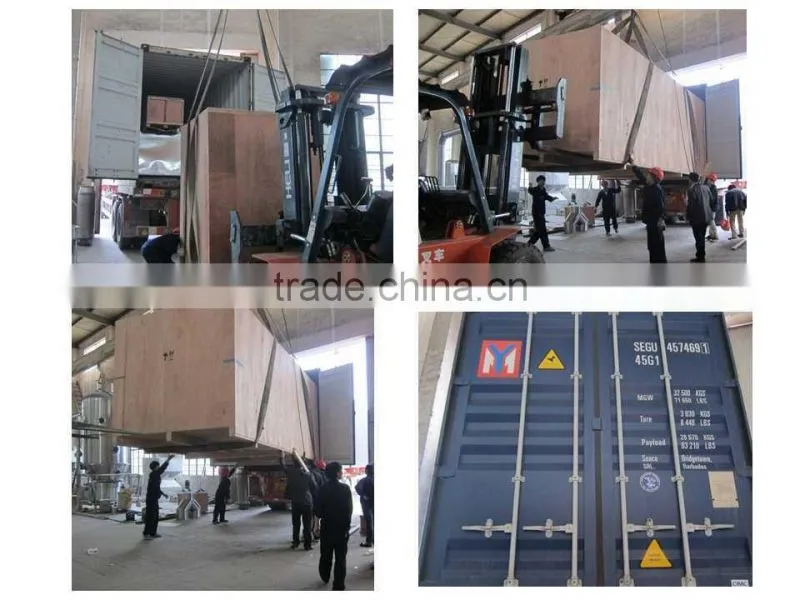

Packing & Delivery


Packaging Details
Package: wooden case

Delivery time: 60 days after receive down payment.

Guarantee time: 12monthes after machines running in buyer's factory.

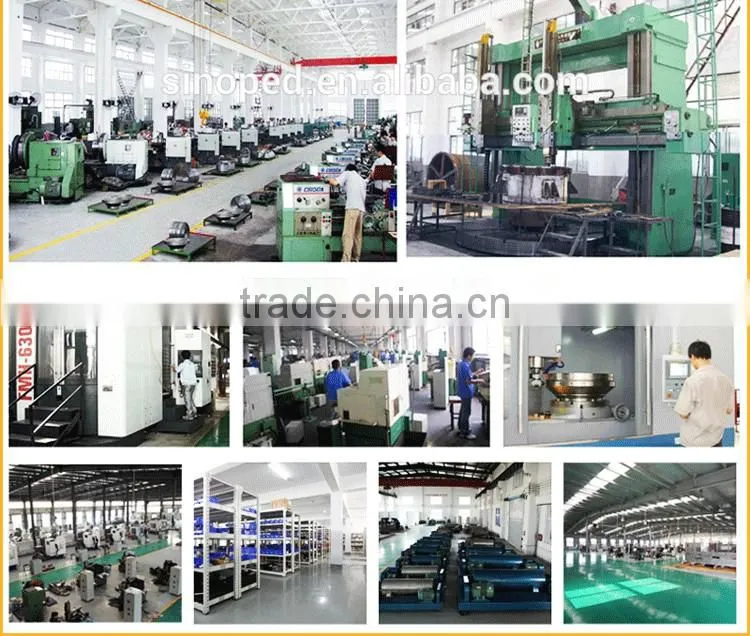

Our company
