Semi-Auto One Head Liquid Ointment Paste Cream Filling Machine G1WG Model
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100 1000 Ml Liquid Soap Semi Auto Filling Machine Lotion Ointment Thick Paste Piston Filling Cream FillerNegotiableMOQ: 1 -
Small Two Heads Pneumatic Filler Detergent Mineral Water Drinks Soda Liquid FillerNegotiableMOQ: 1
-
Semi Auto Glass Bottle Beer Filling Machine Piston Gel Vegetable Oil Liquid Filler ManufacturerNegotiableMOQ: 1
-
Softgel Production Line Automatic Softgel Encapsulation Machine Soft Gelatin Capsule Filling MachineNegotiableMOQ: 1
-
Soft Gelatin Fish Oil Capsule Filling and Counting Making MachineNegotiableMOQ: 1
Product introduction
Paste Filling Machine
The machine is mainly for liquid, semi-liquids , paste . packing filling in vial , bottle, jar , can , pail ,barrel,drum and other various shape container. apply to food,pharmaceutical,chemical industrial, etc. This machine adopts the pneumatic components and its pistion are made of the poly vinyl choride and 304 stainless steel material(316 ss is as choice);filling volume and filling speed can be adjusted. Filling valve adopts anti-drop, anti down drawing and filling equipment .The machine can be modified according to the customer's requirements , and it can be redone ,such as multi-heads,explosion-proof type , overflow filling system.The machine works on the three-way principle to adjust the filling quantity that a cylinder drives a pistion and a rolling valve to draw out and output the fluid,and then the magnetic switch controls the journey of the pistion.
Advantage
1.Made of fine steel, stable and durable, large capacity hopper can work continuously, durable and wear resistant, longer life.
2.Solid ball rotary valve, exquisite shape, smooth delivery, no leakage.
3.Imported high power cylinder.
4.Tetrafluoron piston, good sealing and durable.
1.Made of fine steel, stable and durable, large capacity hopper can work continuously, durable and wear resistant, longer life.
2.Solid ball rotary valve, exquisite shape, smooth delivery, no leakage.
3.Imported high power cylinder.
4.Tetrafluoron piston, good sealing and durable.
Technical parameters
Model |
G1WG |
Filling Speed |
5-25 pcs/min |
Air pressure |
0.4Mpa |
Filling volumes range |
5-50ml; 10-300ml;50-500ml;100-1000ml;300-2500ml;1000-5000ml |
Filling Accurancy |
≤±1% |
Package size |
620*300*540mm |
Nozzle |
1 |
Power |
20W |
Power supply |
AC 220V / 110V 50HZ/60HZ |

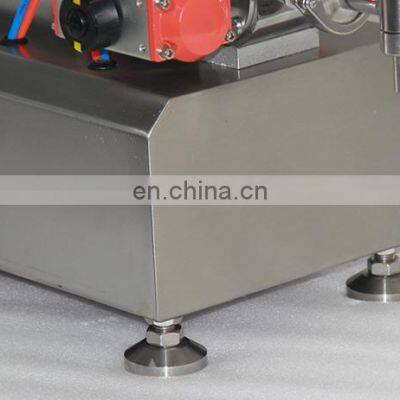

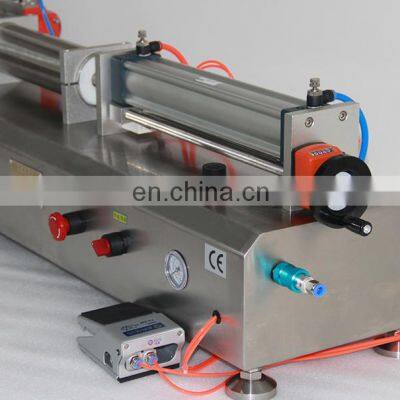

Detailed Images
