Automatic Ampoule Bottle Filling and Sealing Line
Product Description
Application

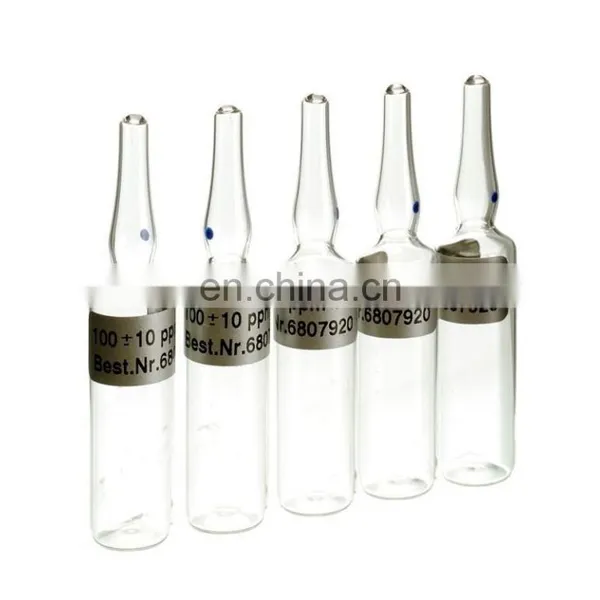

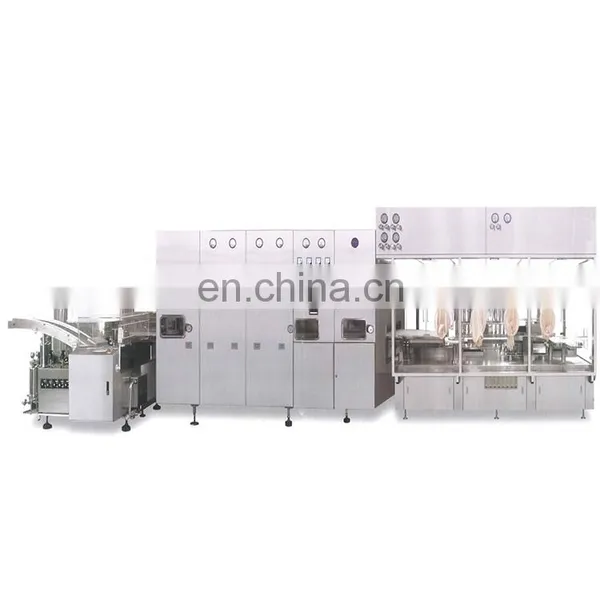

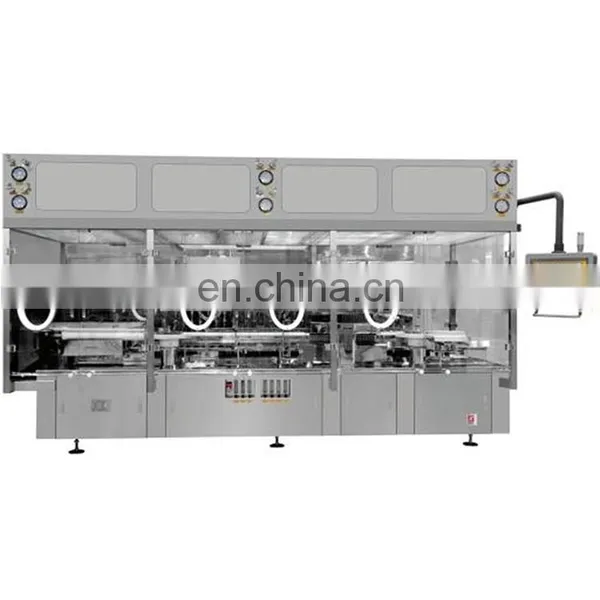

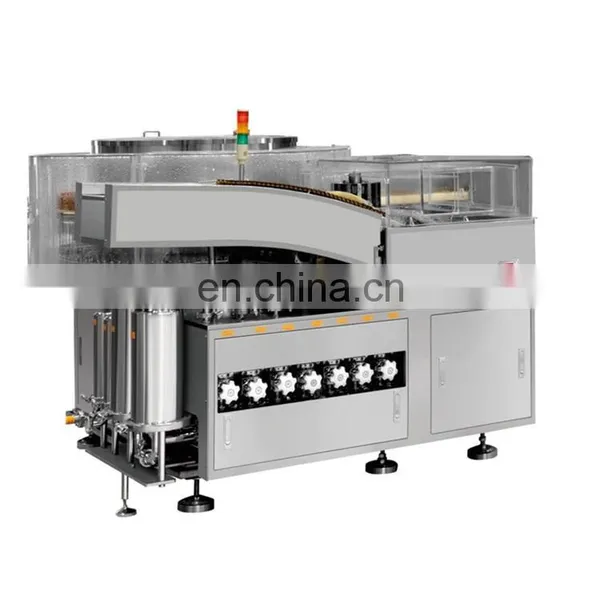

This production line is composed of QCL series Vertical Ultrasonic Bottle Washing Machine, ASMR series Circulating Hot Air Tunnel Sterilization Oven and AGF series Vertical Fill-Seal Machine. It is used for the production of 1-20ml ampoule injection and includes three working area including washing area, drying and sterilization area, filling and sealing area, which can be used separately. The whole production line is mainly used for the small volume injection production and is composed of more than 20 procedures, such as water spraying, ultrasonic washing, manipulator taking bottles, bottle turnover, swashing (inner and outer surface of bottles), blowing (inner and outer surface of bottles), preheating, drying and sterilizing, cooling, (nitrogen filling), filling, (nitrogen filling), preheating and sealing.
Features
* Ampoule Wash-Dry-Fill-Seal Production Line is used the washing, sterilization, filling and sealing of small volume ampoule injection in workshop. It features advanced design, reasonable structure, high degree of automation, stable and reliable operation, high production efficiency and mechanical and electrical integration. The parts contacted with drug liquid are made of AISI316L and the other are made of AISI304. The materials used have no pollution on drug and environment.
* Ampoule Wash-Dry-Fill-Seal Production Line is composed of Vertical Ultrasonic Washing Machine, Drying and Sterilization Oven,and Ampoule Fill-Seal Machine. It features coordination interaction, stepless speed regulation and accurate control and can meet production process requirements.
* It features high production speed, high qualification rate, no impact, no wrong action, no squeezing and on broken bottles.
* It is equipped with various safety devices to ensure the safety of the operator and machine.
* Validation ports are reserved on main parts.
* It features PLC control, touch screen operation and programmed production.
* Buffer devices are installed on the connection point between three units of the production line, thus able to ensure reliable and stable operation.
* It has the function of no bottle no filling.
* It has centralized oil supply system which can easily add oil on lubrication points.
* Ampoule Wash-Dry-Fill-Seal Production Line is composed of Vertical Ultrasonic Washing Machine, Drying and Sterilization Oven,and Ampoule Fill-Seal Machine. It features coordination interaction, stepless speed regulation and accurate control and can meet production process requirements.
* It features high production speed, high qualification rate, no impact, no wrong action, no squeezing and on broken bottles.
* It is equipped with various safety devices to ensure the safety of the operator and machine.
* Validation ports are reserved on main parts.
* It features PLC control, touch screen operation and programmed production.
* Buffer devices are installed on the connection point between three units of the production line, thus able to ensure reliable and stable operation.
* It has the function of no bottle no filling.
* It has centralized oil supply system which can easily add oil on lubrication points.
Specification
Model |
QCL100+ASMR620+AGF8/1-20 |
QCL100+ASMR620+AGF10/1-20 |
QCL100+ASMR620+AFG12/1-10 |
QCL100+ASMR620+AGFD12/1-20 |
QCL100+ASMR620+AGF16/1-5 |
Filling range |
1-20ml |
1-20ml |
1-10ml |
1-20ml |
1-5ml |
Capacity(pcs/h) |
1-2ml:22,000
5ml:16,000
10ml:11,000
20ml:6,000
|
1-2ml:24,000
5ml:18,000
10ml:15,000
20ml:8,000
|
1-2ml:28,000-30,000
5ml:20,000
|
1-2ml:12,000-30,000 |
1-5ml:38,000-40,000 |
Clarity（%） |
> 99 |
> 99 |
> 99 |
> 99 |
> 99 |
Qualified rate（%） |
≥ 99（standard solution） |
≥ 99（standard solution） |
≥ 99（standard solution） |
≥ 99（standard solution） |
≥ 99（standard solution） |
Filling Precision（%） |
≤±2.5 |
≤±2.5 |
≤±2.5 |
≤±2.5 |
≤±2.5 |
Water consumption and pressure |
Consumption:0.4-1.0cbm/h
Pressure:0.2mpa
|
Consumption:0.4-1.0cbm/hPressure:0.2mpa |
Consumption:0.4-1.0cbm/hPressure:0.2mpa |
Consumption:0.4-1.0cbm/hPressure:0.2mpa |
Consumption:0.4-1.0cbm/hPressure:0.2mpa |
Pressed air consumption and pressure |
Consumption:30-75cbm/h
Pressure:0.15mpa
|
Consumption:30-75cbm/hPressure:0.15mpa |
Consumption:30-75cbm/hPressure:0.15mpa |
Consumption:30-75cbm/hPressure:0.15mpa |
Consumption:30-75cbm/hPressure:0.15mpa |
Sterilization temperature（℃） |
300-350 |
300-350 |
300-350 |
300-350 |
300-350 |
Exhausted air volume（m³/h） |
4100 |
4100 |
4100 |
4100 |
4100 |
Gas consumption and pressure |
Consumption:1.5-2.5cbm/h
Pressure:0.2-0.3mpa
|
Consumption:1.5-2.5cbm/hPressure:0.2-0.3mpa |
Consumption:1.5-2.5cbm/hPressure:0.2-0.3mpa |
Consumption:1.5-2.5cbm/hPressure:0.2-0.3mpa |
Consumption:1.5-2.5cbm/hPressure:0.2-0.3mpa |
Oxygen consumption and pressure |
Consumption:1.2-1.5cbm/h
Pressure:0.2-0.3mpa
|
Consumption:1.2-1.5cbm/hPressure:0.2-0.3mpa |
Consumption:1.2-1.5cbm/hPressure:0.2-0.3mpa |
Consumption:1.2-1.5cbm/hPressure:0.2-0.3mpa |
Consumption:1.2-1.5cbm/hPressure:0.2-0.3mpa |
Dimension(L*W*H)(mm) |
9940*2003*2445 |
10100*2260*2455 |
10100*2260*2455 |
10100*2260*2455 |
10600*2260*2455 |
Weight(kg) |
7500 |
7500 |
7500 |
7500 |
7500 |
Power Supply |
380V 50Hz,71kw |
380V 50Hz,71kw |
380V 50Hz,71kw |
380V 50Hz,71kw |
380V 50Hz,71kw |
