Factory Direct Sale HEPA Fan Filter Unit 2x4 DC FFU for Different Type Clean Rooms

Factory Direct Sale HEPA Fan Filter Unit 2x4 DC FFU for Different Type Clean Rooms photo-1

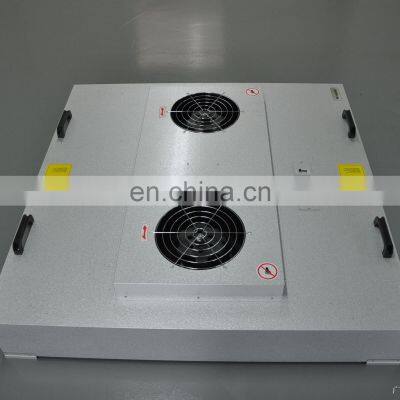

Factory Direct Sale HEPA Fan Filter Unit 2x4 DC FFU for Different Type Clean Rooms photo-2
Factory Direct Sale HEPA Fan Filter Unit 2x4 DC FFU for Different Type Clean Rooms photo-3
Factory Direct Sale HEPA Fan Filter Unit 2x4 DC FFU for Different Type Clean Rooms photo-4

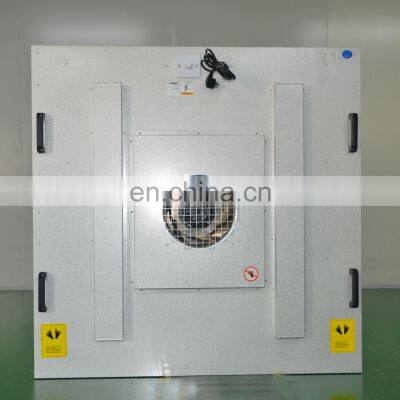

Factory Direct Sale HEPA Fan Filter Unit 2x4 DC FFU for Different Type Clean Rooms photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1997
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

H14 HEPA filter unit FFU Fan filter Unit

Product Description

Sinoped Factory H14 FFU HEPA Filter Fan Motorized Cleanroom Fan Filter Unit FFU



H14 HEPA filter unit FFU Fan filter Unit can be used with modular linkage, and is widely used in the clean room with turbulent layer or laminar flow. It can be continuously run. And the air flow can reach to 0.45mm/s±20%. Long-life service, low noise, maintenance-free, small vibration, and adjustable speed. It can control thousands of units together. Before packing, it must pass the test according to the standard. The product is widely used in industries of semi-conductor, electronics, flat-panel screen, disc drive, optics and bio-engineering,etc. Customized design is available.



Factory direct sale HEPA fan filter unit 2x4 DC FFU for different type clean rooms





FFU Technical Parameters
ModelSINO-875/1SINO-920/1SINO-1175/1SINO-1225/1
Module Size(LxWxHmm) 875x575x250920x615x250 1175x575x250 1225x615x250
Plenum Chamber MaterialCold rolled steel with epoxy powder / Galvanized steel / Stainless steel
Air Flow(m³/h)800 900 1000 1200
Average Velocity(m/s)0.3-0.5  0.3-0.5  0.3-0.5 0.3-0.5
Pressure(Pa) 97(10mmAq) 97(10mmAq) 97(10mmAq)  97(10mmAq)
Power(W) 100 100100 100
Weight(Kg) 2527.5 34 37.5
Noise (db) 52 52 5252
HEPA Filter Size(LxWxH) 870x570x69 915x610x691170x570x69 1220x610x69
HEPA Filter Efficiency99.997% 0.3µm  99.997% 0.3µm99.997% 0.3µm 99.997% 0.3µm
HEPA Filter Frame High-quality aluminumHigh-quality aluminum High-quality aluminum High-quality aluminum
HEPA Filter Pressure180pa 0.45m/s  180pa 0.45m/s 180pa 0.45m/s  180pa 0.45m/s
HEPA Filter CharacteristicsPatented no-gap technology to make PU gasket
Motor Parameter Power supply(V/Hz)220/50  220/50 220/50   220/50
Motor Parameter Type Aluminum turbine motor
Motor Parameter Vibration quotients(mm/s) 0.2-0.5 0.2-0.5 0.2-0.5  0.2-0.5



There will no further notification if the appearance or parameters of our products are modified. Thanks.
