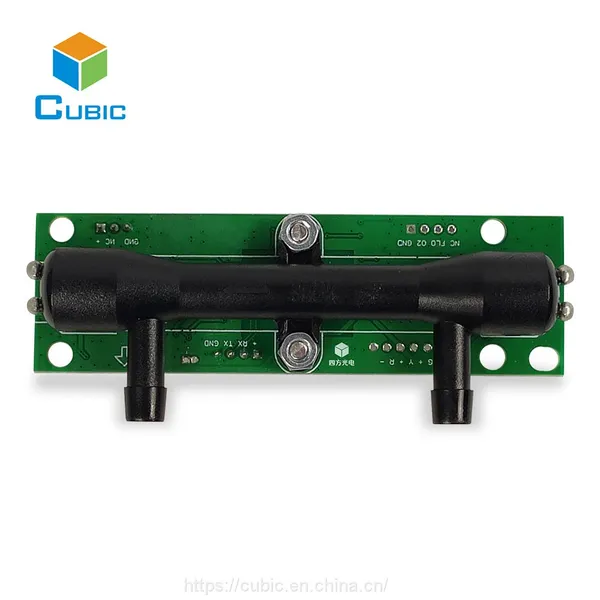

RoHS, REACH, CMC, CE Ultrasonic Oxygen Sensor Gasboard-7500H Series
- 30000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
Ultrasonic Flow Sensor Gasboard-7500H-OPC Measure Air Flow Rate 0~5L/min
-
Excellent Stability, High Accuracy, Fast Response Ultrasonic Oxygen Sensor Gasboard-8500FS-L40
-
Small Size, Flexible Installation Ultrasonic Oxygen Sensor Gasboard-8500FS-L240
-
Mini USB CO2 Detector USB Plug-in Carbon Dioxide Detector
-
Remote Online Particle Counter OPC-6510 RS485
-
China Manufacturer High Quality Air Fuel Ratio Sensor Lambda Wideband Sensor Oxygen O2 Sensor
Product Details
| Brand Name | Cubic | Place of Origin | China | |
| Model Number | Gasboard-7500H Series |
Product Description
Introduction
Gasboard-7500H series are a type of ultrasonic oxygen gas sensors, which can realize accurate and stable measurements for oxygen concentration and flow rate. Gasboard-7500H series provide a new, economical, durable option for system designers who is seeking for medical oxygen sensor for PSA oxygen generator, medical ventilator, respiratory device, anesthetic machine and vaporizer. By adopting ultrasonic detecting technology and principle of TOF (time of flight) measurement , Gasboard-7500H series have great performances: excellent stability, high accuracy, fast response, continuous monitoring, no drift, no need routine calibration, maintenance-free, etc.
Features
1.Ultrasonic measurement technology, for both oxygen concentration and flow rate
2.Based on principle of TOF (time of flight) measurement, continuous monitoring, no drift, no need routine calibration, maintenance-free.
3.Excellent stability, high accuracy, fast response
4.Full scale matrix temperature compensation(humidity is also available)
5.No-consuming parts, long Lifespan
6.Small size, flexible installation
7.High performance-cost-ratio
8.Support serial port and analog output accurate measurements
9.Enhanced EMC performance
10.RoHS, REACH, CMC, CE certificated
Specifications
| Detect Principle | Ultrasonic Technology |
| Detection Range | O2 Concentration:20.5%-95.6%； O2 Flow Rate:0~10L/min |
| Detection Accuracy | O2 Concentration: ±1.5%FS@ (5~45)℃ O2 Flow Rate: ±0.2L/min@ (5~45)℃ |
| Resolution | O2 Concentration: 0.1% O2 Flow Rate: 0.1L/min |
| Response Time | O2 Concentration:<1.5S; O2 Flow Rate<0.3S |
| Work Condition | -5~50℃;0~95%RH（Non-condensing） |
| Storage Condition | -20~60℃;0~95%RH（Non-condensing ） |
| Work Voltage | DC 4.75-12.6V, Ripple Wave <50mV |
| Average Work Current | <35mA |
| Communication Interface | UART_TTL (3.3V) |
Applications
Medical and Healthcare
Ventilator
Oxygen Generator
