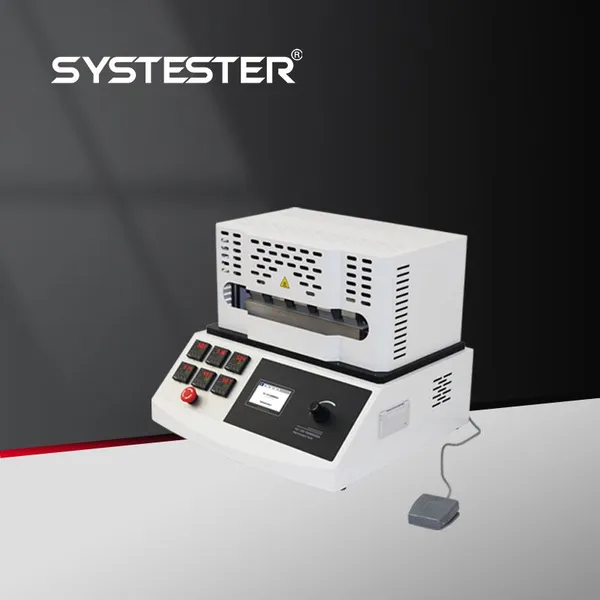

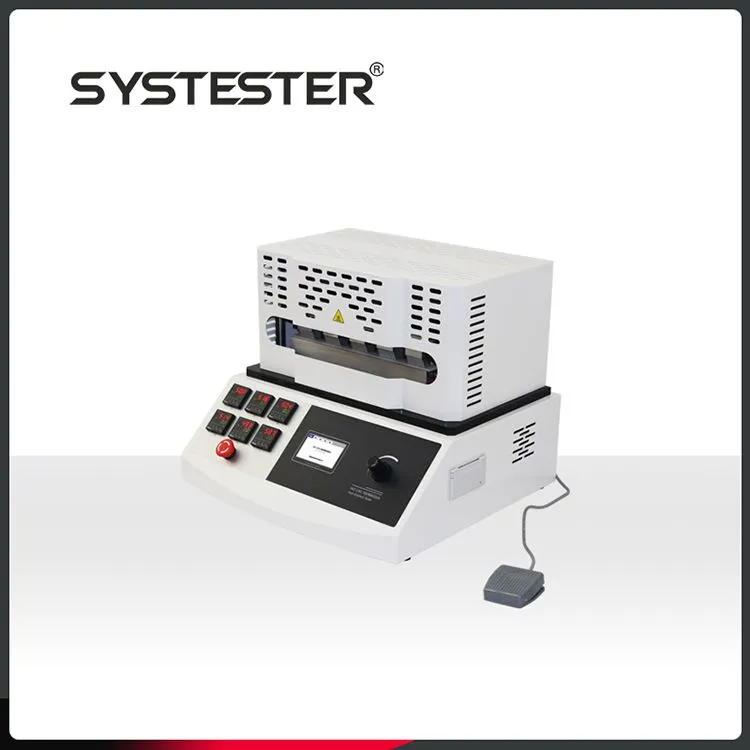

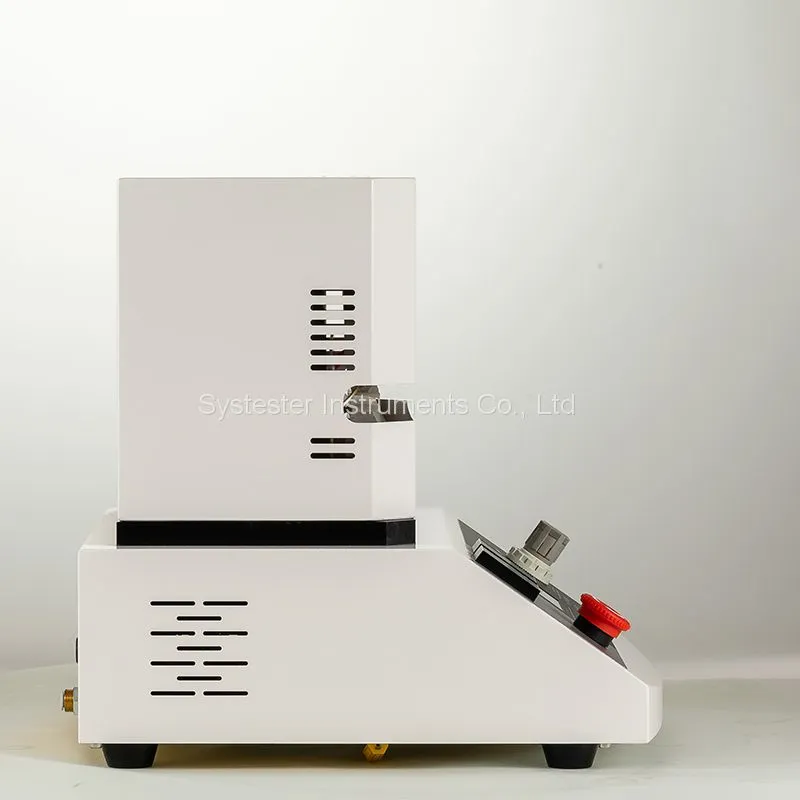

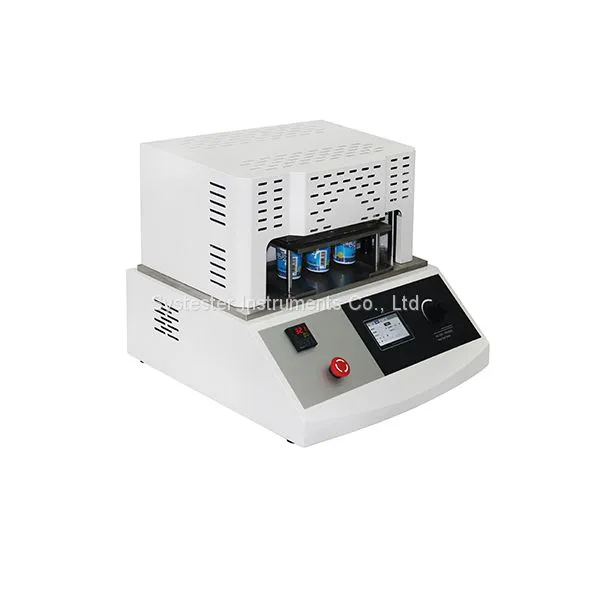

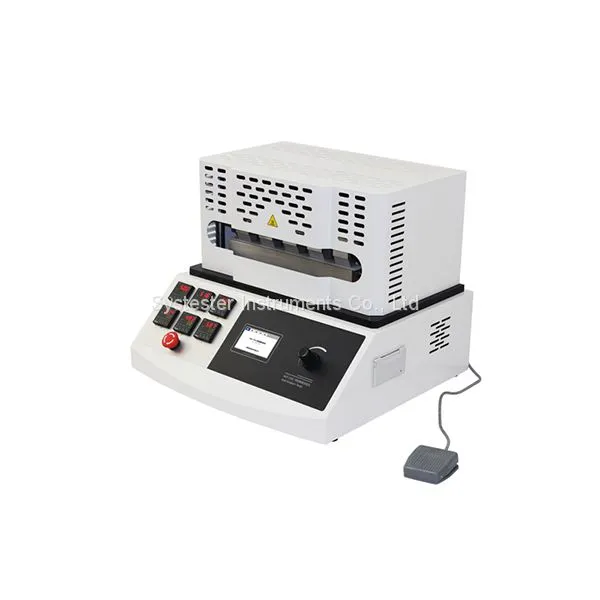

Heat Gradient Tester Five Points Heat Seal Test Plastic Package
Product Details
Application:
Applies to best parameters determination of heat sealability of various kinds of film. Heat sealability of film depends on temperature, pressure and heat time and the HSL-6001 Heat Seal Tester is widely used in food and pharmaceutical packaging industries.
Heat Gradient Tester Five Points Heat Seal Test Plastic Package
Features:
1: Embedded system control
2: Own technology
3: Touch screen operation, easy to operate
4: TFT LCD display, UI flattening design
5: 6 temperature controllers , controlled independently
6: Micro-printer prints mini-report
7: Pressure easy to adjust, heat temperature and time touch screen input.
8: Emergency stop button, safety design to prevent burns
9: Over temperature protection, over pressure protection
10: Silence working
11: DB9 RS232 communication port.
12: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.
Heat Gradient Tester Five Points Heat Seal Test Plastic Package
Technical Indexes:
| Heat temperature | Room temperature+6 ~ 300℃ |
| Accuracy | ±0.2 ℃ |
| Dell time | 0.1~ 999.9s |
| Pressure | 0.05 MPa~1.0MPa |
| Heat surface | (40mm × 10 mm) × 5 |
| Heat jaws | 6, controlled independently |
| Gas source pressure | 0.05MPa ~ 1.0MPa (self-provide) |
| Gas source interface | Ф6mm |
| Outer dimension | 570 mm (L)×500 mm (W)×470 mm (H) |
| Work noise | 0db |
| Power supply | AC 220V 50Hz |
| Net weight | 63kg |
