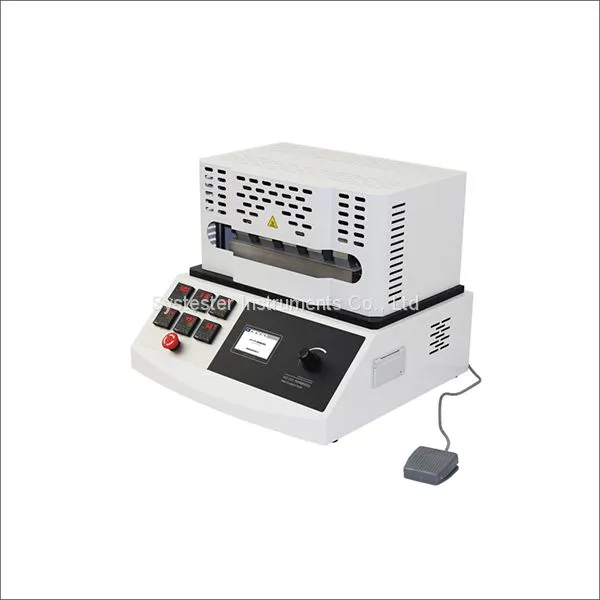

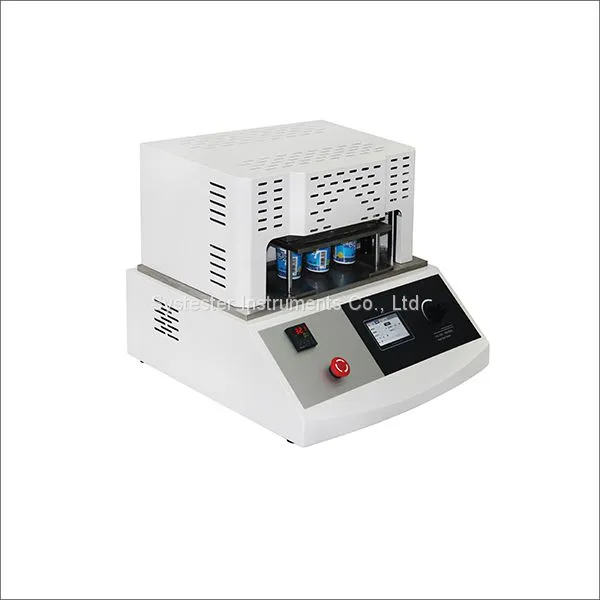

Heal Gradient Tester Heat Sealing Testing Instruments
- Jinan
- T/T L/C
- 8 days
You May Like
-
FST-3101 Film Free Shrink Tester
-
Laboratory Equipment Water Vapor Permeability Tester White WVTR-398B
-
50 Cm2 Plastic , Rubber Water Vapor Permeability Analyzer WVTR-2103
-
Aluminum Foil Water Vapor Permeation Rate Tester With Weighing Method WVTR-2501
-
WVTR-2502 Water Vapor Permeability Tester
-
WVTR-2503 Water Vapor Permeability Tester
Product Details
| Place of Origin | China | Model Number | HGT-2301 | |
| Power | Electronic | Usage | Auto Testing Machine |
Product Description
Product Details
Application:
Applies to best parameters determination of heat sealability of various kinds of film. Heat sealability of film depends on temperature, pressure and heat time and the HSL-6001 Heat Seal Tester is widely used in food and pharmaceutical packaging industries.
Features:
1: Embedded system control
2: Patent technology
3: Touch screen operation, easy to operate
4: TFT LCD display, UI flattening design
5: 6 temperature controllers , controlled independently
6: Micro-printer prints mini-report
7: Pressure easy to adjust, heat temperature and time touch screen input.
8: Emergency stop button, safety design to prevent burns
9: Over temperature protection, over pressure protection
10: Silence working
11: DB9 RS232 communication port.
12: DSM system is optional(Laboratory Management Information System), easy to manage and share test data.
Technical Indexes:
| Heat temperature | Room temperature+6 ~ 300℃ |
| Accuracy | ±0.2 ℃ |
| Dell time | 0.1~ 999.9s |
| Pressure | 0.05 MPa~1.0MPa |
| Heat surface | (40mm × 10 mm) × 5 |
| Heat jaws | 6, controlled independently |
| Gas source pressure | 0.05MPa ~ 1.0MPa (self-provide) |
| Gas source interface | Ф6mm |
| Outer dimension | 570 mm (L)×500 mm (W)×470 mm (H) |
| Work noise | 0db |
| Power supply | AC 220V 50Hz |
| Net weight | 63kg |
