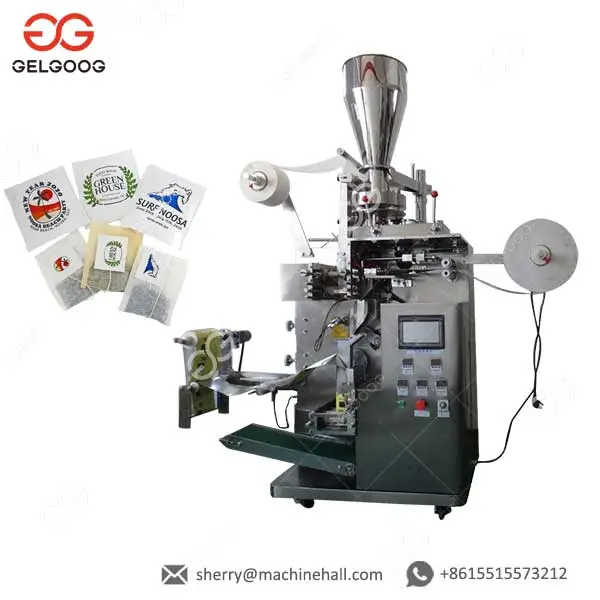

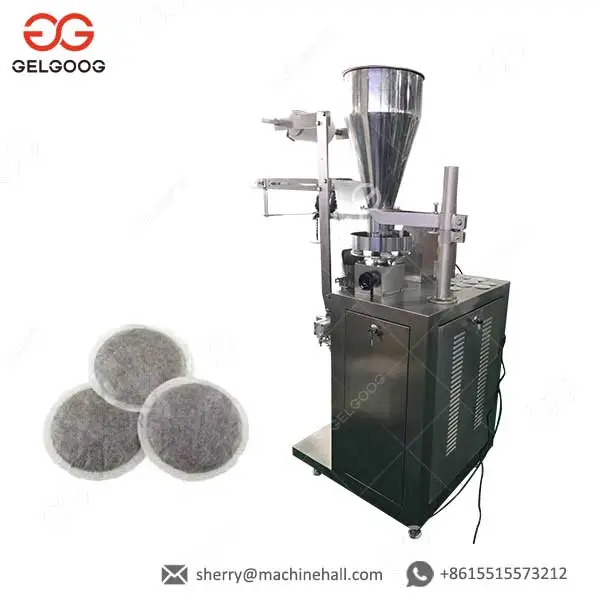

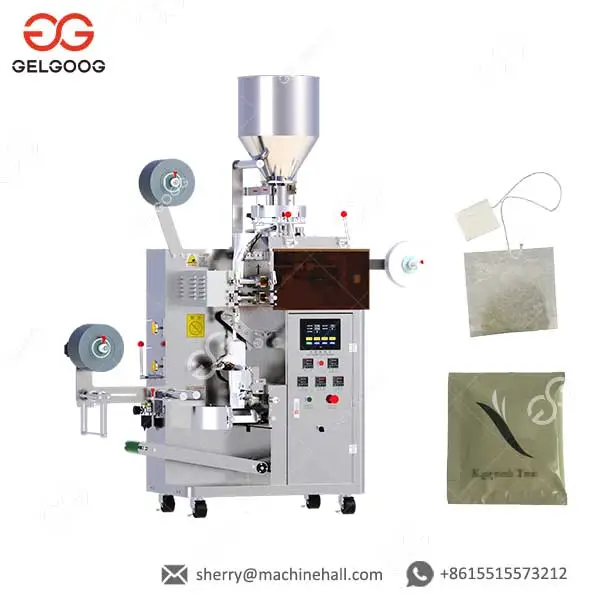

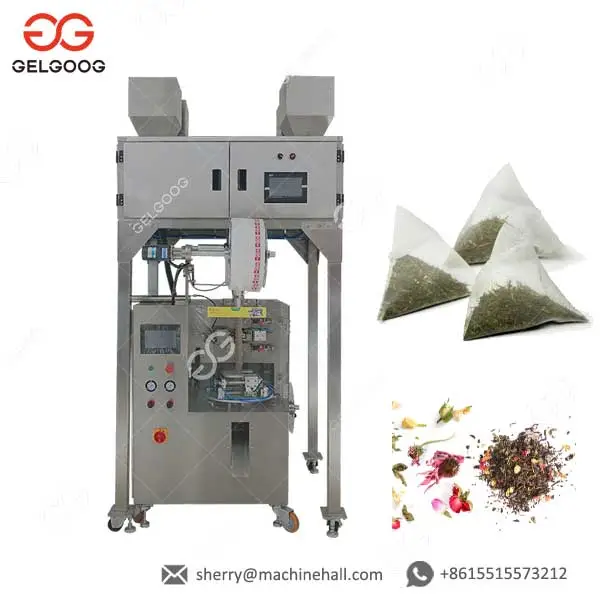

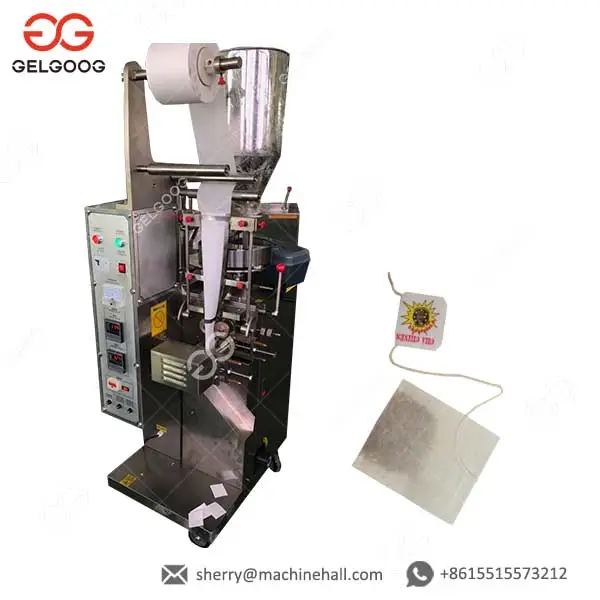

Small Scale Tea Bag Machine Round tea Bag Packing Machine Pyramid tea Bag packaging

wooden packing as export standard

Tea Bag Packing Machine is a kind of machine used for packing tea seeds, medical, health-care and tea industries granular shaped ingredients. All of these items could be packed with envelops, and with thread and tag at the same time.

The processes of bag making measuring, filling, sealing, cutting, counting and hot pressing code can be done automatically. Handling thread and tag would be a specific point of this machine, which would be a good convenient for customers while drinking tea.

There are different types of tea bag packing machines, including pyramid tea bag packing machine, round tea bag packing machine, inner and outer tea bag packing machine, etc.

The tea packing machine can be used for packing green tea, flower tea, herbal tea, etc.

Tea Bag Packaging Machine Features：

1. The machine is suitable for green tea, black tea, scented tea, coffee, Chinese tea, health tea, herbal tea, granule.

2. Outer sealing paper is controlled by the stepper motor,stable bag length and accurate positioning.

3. The machine can automatically finish

the load, measuring, bag making,sealing, cutting, counting, finished product conveyor, and other functions.

4. Adopt the importedultrasonic sealing, use the electronic scale metering to cutting-stock, perfect sealing,cutting-stock accuracy

5. Packing material: filter paper,thread,composite membrane.

Automatic Tea Bag Packing Machine:

1. Envelope is controlled by stepping motor, accurate bags size and positioning accurately.

2. PID adjust temperature controller.

3. The whole machine is controlled by PLC, touch screen, very easy to operate.

4. All parts contact with materials adopt SS304, up to GMP standard.

5. Some of cylinders adopt imported brand, which can ensure working accurate and stable.

6. Can equip with printers, flat cutter or easy-opening etc.

7. Bag size can be changed by different formers.

Tea Bag Packing Machine Composition:

1. Bag Forming Unit

Pack material into inside bag,then put it into outer bag. Finish two bags at the same time.

2.Volum Cup

Volume cup can acutomatically complete the products of measuring, simple for operation; Adjust volume cup measuring system with gih weighing precise by granule packaging.

3.Safe Plastic Case

Avoding operator touch rotating blade accidentally, more safe.

4.Touch Screen

PLC controlling system, intelligeny control, self-correction,operate more steadily. Using PID temperature controller,  make heat balance better.

5.Controlling System

Fix step motor controller, more precise and intelligent, needless adjust other parts.

6. Photoelectricity Control System

Get the complete trademark desgin by color control system.
