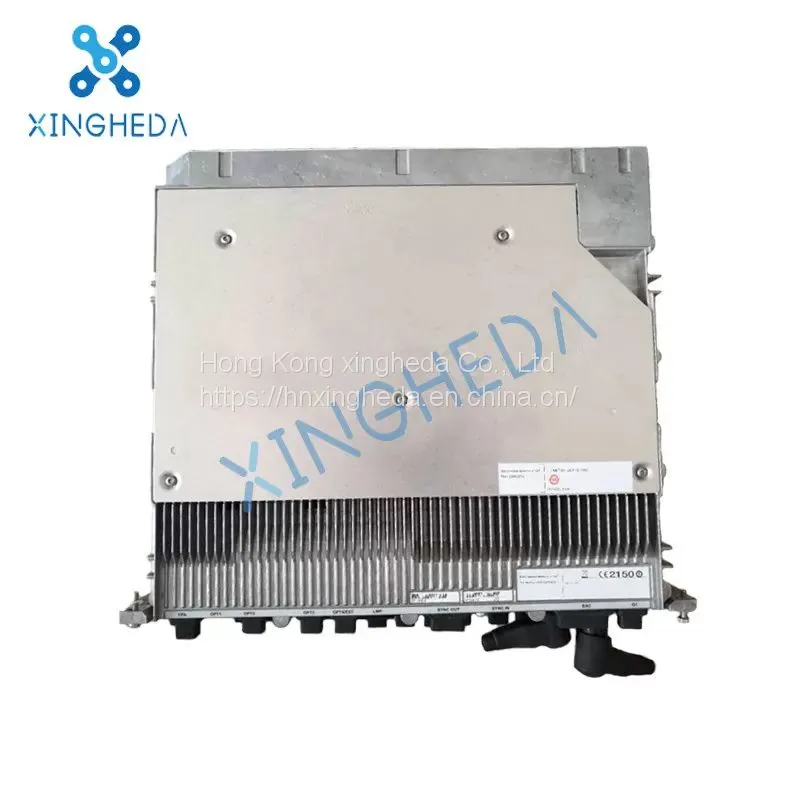

NSN Flexi Multiradio System Module(18TRX) NOKIA ESMB 472109A

Product Description

Nokia Siemens Networks NSN Base Station BBU Flexi Multiradio System Module(18TRX)

ESMB 472109A/472109A.101/472109A.102

New Flexi Multiradio BTS units

This section describes the new units in Flexi Multiradio BTS, The details of other, already existing units reused in Flexi Multiradio Solution (e.g. FSMx, Transmission Modules and other optional units) can be found in the respective Product Description documents for Flexi EDGE and Flexi WCDMA.

Flexi EDGE 18/36 TRX System Module

The new Flexi EDGE 18/36 TRX System module provides the GSM/EDGE specific functionality within the Multiradio BTS. It stores and runs the GSM/EDGE BTS SW and provides the GSM/EDGE specific external and internal BTS functions.

There are two variants of Flexi Multiradio System Module; with integrated baseband processing capacity: ESMB for up to 18 and ESMC for up to 36 GSM/EDGE TRX capacities. The ESMC provides maximum capacity, however in most applications the capacity of ESMB is sufficient. As the ESMB can be duplicated and chained, operator can start the site build-out either with ESMB or ESMC with both tracks providing expansion path to maximum system capacity (36TRX/BCF).

EDGE System Module has following main functions:

• GSM/EDGE BTS O&M,

• Abis and transport,

• OBSAI connectivity,

• power distribution to the radios,

• GSM/EDGE baseband

• BTS synchronization.

The BTS O& function in Flexi Multiradio System module unit takes care of Radio Software management, Configuration management, alarm handling and recovery, reference clock management and externals alarms and controls.

ESMB/ESMC has an integrated transport unit which provides the physical transmission interfaces and the transport functionality of the BTS. Six different network interface alternatives are offered: E1 symmetrical, E1 unsymmetrical, T1, Fast Ethernet, Gigabit Ethernet and Flexbus.

These transport interface variants are same as with Flexi EDGE System Module ESMA.

GSM/EDGE specific configurations

Following GSM/EDGE configurations are possible:

• Up to 12 cells.

• Up to 12 GSM/EDGE TRX/cell

• Up to 36 TRX BTS (BCF) level configurations for GSM/EDGE.

• Up to 108 TRX (36+36+36) site level configurations with Multi BCF/common BCCH.

• IDD (Intelligent Downlink Diversity) and 4-way UL Diversity

• Dual band configurations

We have NOKIA ESMB 472109A for sale, both refurbished and new, at prices typically up to 90% less than the original vendor price. Our super fast turnaround times and high quality stock located all around the world, mean we can ship same-day replacements exactly to where they are needed, minimising network downtime as much as possible.

The NOKIA ESMB 472109A like all of our hardware, is fully inspected and repackaged in our ESD and OEM compliant facility by our expert team and comes backed by a comprehensive warranty as standard.Whether you require a brand new product or one that has been refurbished, we source only the highest quality and environmentally-green market equipment. This is all available at the best possible prices, passing the substantial cost benefits directly back to you.

The NOKIA ESMB 472109A represents only one item available from our world class portfolio of hardware. This portfolio includes very well known industry names like Nokia, Huawei,ZTE,Siemens, Nortel,  Ericsson,  Alcatel, Lucent and many more. With almost one million parts in stock, we are grateful to be able to share it with our clients
