Product Description

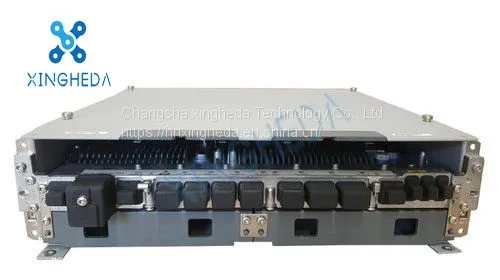

Flexi Multiradio 10 Base Station System Module FSMF is equipped with two integrated transport interfaces: electrical Gigabit Ethernet (GE) interface (EIF1) and optical interface
(EIF2/RF/6).
The latter is SW configurable for transport purposes or for RP3-01 interface. To operate
in either (transport or RP3-01), it requires a Small Form-factor Pluggable (SFP). Both
Ethernet interfaces provide a physical interface to the backhaul network.
Note: In WCDMA and LTE the optical interface (EIF2/RF/6) is available as transport
interface EIF2 if not used for RP3-01 connection.
Note: In GSM the optical interface (EIF2/RF/6) is available as transport interface EIF2
if the optional transmission sub-module (FTIF) is not deployed.
Flexi Multiradio 10 System Module FSMF is optimized for Ethernet Transport, and the
HW supports the following integrated transport functions (without the optional
transmission sub-module):
• 1 x 100/1000Base-T Ethernet port
• 1 x optional optical SFP (depends on configuration)
• Ethernet based chaining and switching across up to two interfaces
•
IEEE1588-2008, Synchronous Ethernet, 1PPS and 2.048MHz 1)
• LTE S1/X2, or WCDMA Iub/IP, or GSM Packet Abis over Ethernet backhaul
interfaces
Flexi Multiradio 10 Base Station System Module and transport interfaces
We have Nokia FSMF 472181A for sale, both refurbished and new, at prices typically up to 90% less than the original vendor price. Our super fast turnaround times and high quality stock located all around the world, mean we can ship same-day replacements exactly to where they are needed, minimising network downtime as much as possible.
The Nokia FSMF 472181A like all of our hardware, is fully inspected and repackaged in our ESD and OEM compliant facility by our expert team and comes backed by a comprehensive warranty as standard.Whether you require a brand new product or one that has been refurbished, we source only the highest quality and environmentally-green market equipment. This is all available at the best possible prices, passing the substantial cost benefits directly back to you.
The Nokia FSMF 472181A represents only one item available from our world class portfolio of hardware. This portfolio includes very well known industry names like Nokia, Huawei,ZTE,Siemens, Nortel, Ericsson, Alcatel, Lucent and many more. With almost one million parts in stock, we are grateful to be able to share it with our clients
