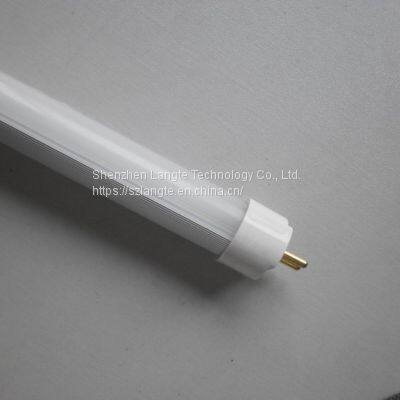

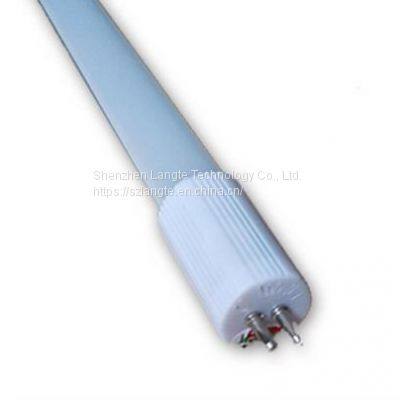

5 Years Guarantee 110v 220V 12W 3Ft T5 led tube light
Model |
Wattage |
Length |
Ra |
Lumen |
LED Type |
Voltage |
Power factor
|
LT-T5-5W |
5W |
300mm/1FT |
70/80 |
500lm± 10% |
SMD2835 |
AC85-265V |
0.5/0.9 |
LT-T5-9W |
9W |
600mm/ 2FT |
70/80 |
900lm± 10% |
SMD2835 |
AC85-265V |
0.5/0.9 |
LT-T5-14W |
14W |
900mm/ 3FT |
70/80 |
1400lm± 10% |
SMD2835 |
AC85-265V |
0.5/0.9 |
LT-T5-18W |
18W |
1200mm/ 4FT |
70/80 |
1800lm± 10% |
SMD2835 |
AC85-265V |
0.5/0.9 |
T5 led tube specifications and model parameters
No. Length Power Lum Efficacy Lum Flux Number of Lamp CRI Color Temperature Remarks
1 0.6m 9W 105lm/W 900lm 48 80 2700-6500K length 549mm without needle
2 0.9m 12W 110lm/W 1320lm 72 80 2700-6500K length 849mm without needle
3 1.2m 16W 120lm/W 1920lm 96 80 2700-6500K length 1149mm without needle
4 1.5m 22W 125lm/W 53400lm 120 80 2700-6500K length 1549mm without needle
0.7mm thick 1175mm100g thick aluminum material, large-area heat dissipation, high-efficiency heat conduction, to ensure that the temperature rise of LED lamp
beads is less than 15 degrees, the thermal conductivity of aluminum is 237, far exceeding the thermal conductivity of 0.2-1 of glass and plastic;
T5 led tube features
Life and Warranty: Three or five years, 40,000-50,000 hours
Drive electrolytic capacitor: high reliability and long life drive, the actual life is more than 100,000 hours
Aluminum substrate and heat dissipation: 1.2mm high thermal conductivity aluminum substrate
Wire: 0.27 square tinned copper wire
Drive power: classic inductor constant current, 92% efficiency
Pressure-sensitive and anti-surge level: lightning protection and anti-surge level 2500V
5 Years Guarantee 110v 220V 12W 3Ft T5 led tube light
T5led tube is usually used with T5 bracket (double tube, single tube, flat cover with cover), T5 grille light plate, T5 tri-proof light, T5 purification
light, and can also be used in light box with T5 lamp pin (T5 lamp foot wire) use;
T5LED fluorescent tubes are suitable for almost all occasions such as factory workshop station and assembly line lighting, shopping malls and supermarket
lighting, residential and complex property underground garages, libraries and school lighting. Purify the lamp to use.

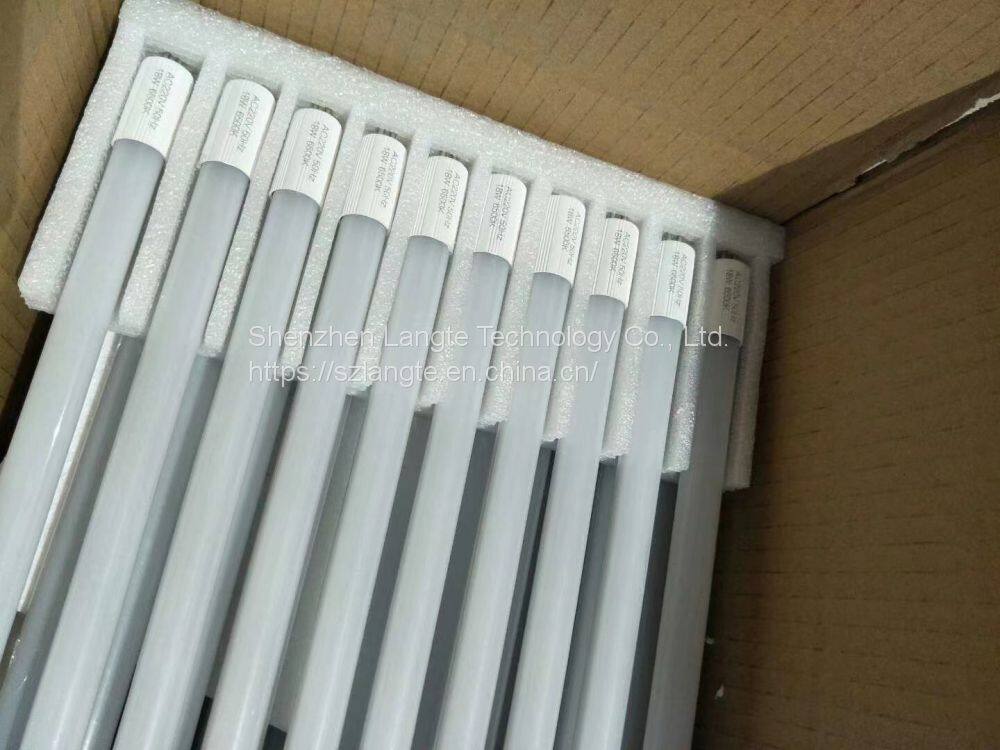

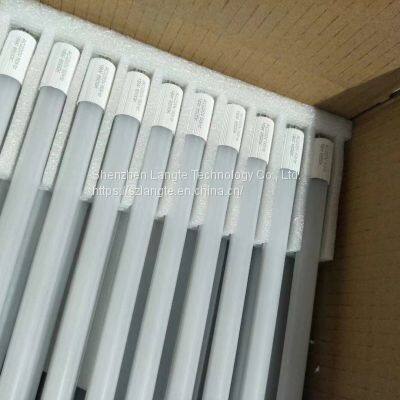

Packaging Details
led tube
1. Packing(CM):61x21x18cm,91x21x18cm, 121x21x18cm, 151x21x18cm
2. G.W: 4.3KG, 5.4KG,7.1KG,8.3KG
3. Qty per CTN: 25pcs
4. Neutral packing.
5. Design as discussed with clients.
Product Specification;
1.AC85-265V 50/60Hz
2.100lm/w CRI 75 82
3.3 years warranty
4.CE ROHS FCC approved
5. SMD 2835 chips, 0.2w each one, high luminous efficiency, thermal performance and stable.
6. No dark point, No light spot, brightness evenly
7. Removable structure, convenient
