Help CenterAutmatic Sauce Pan And Pots-Jacketed Pot-Mixer Pot
Related Products
-
Aloe Vera Peeling Machine Automatic Aloe Vera Peeler Processing Machine Aloe Vera Gel Separator MachineUS$ 4999 - 9999MOQ: 1 Set -
Professional Cactus Aloe Vera Cutting Machine Aloe Vear Dicer Machine Aloe Vear Cutter MachineUS$ 4999 - 7999MOQ: 1 Set
-
Automatic Aloe Vear Washing Machine Aloe Vear Washer Machine in Aloe vera gel manufacturing machineUS$ 3999 - 7999MOQ: 1 Set
-
Industrial 16 Heads Mango Peeler MachineUS$ 19999 - 59999MOQ: 1 Set
-
Automatic Garlic Peeling Machine Garlic Peeler Machine Factory PriceUS$ 900 - 1100MOQ: 1 Set

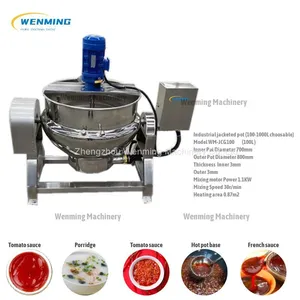

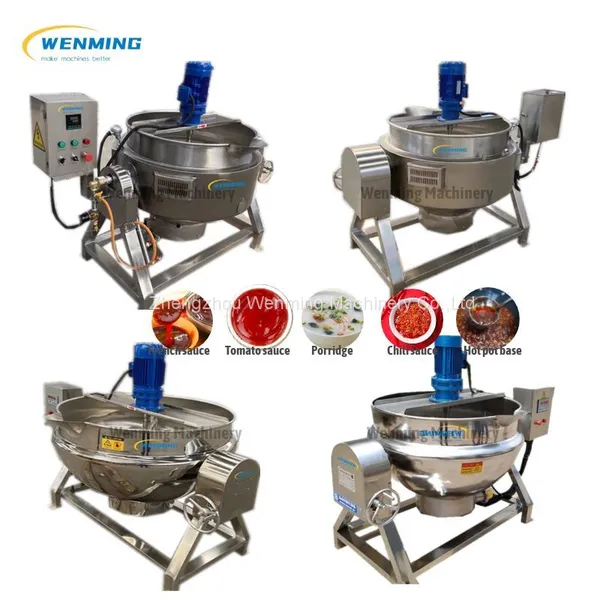

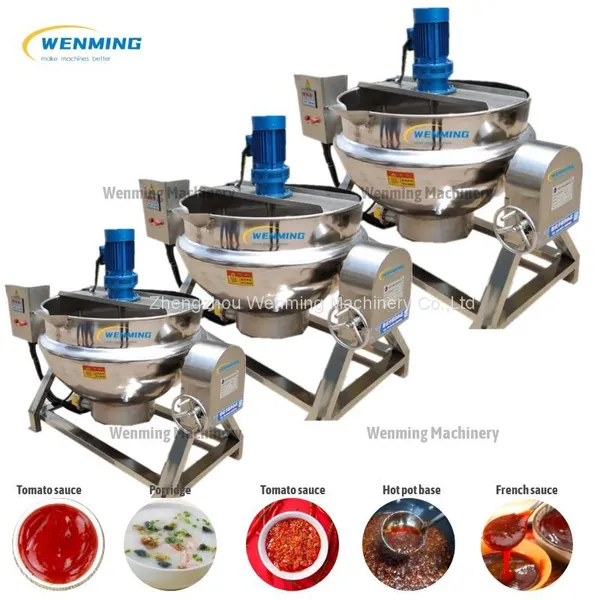

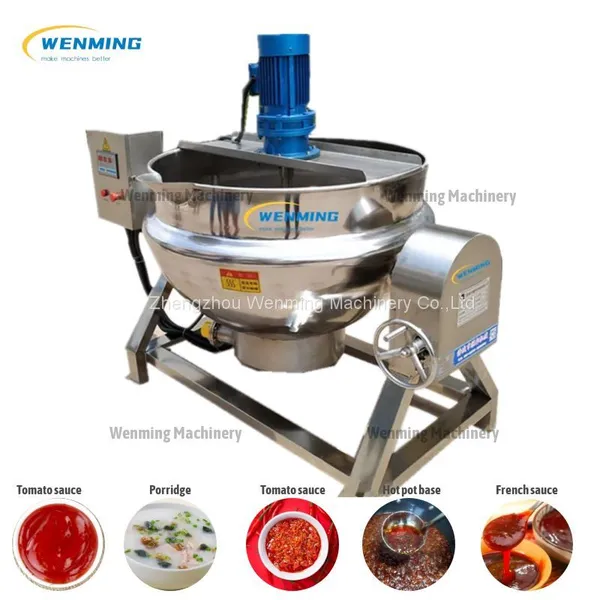

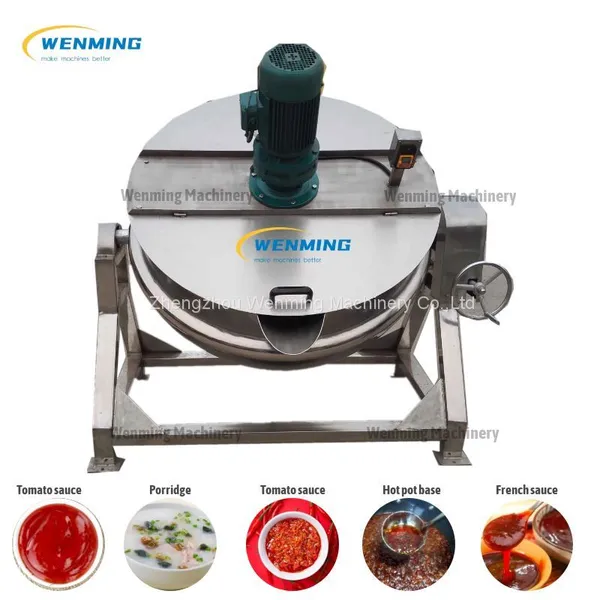

This Cooking port is desgin for mixing and cooking of many kind fruits paste, liquid,etc. It can also be used in large restaurants or canteens to make soup, cooking, stewing and porridge. This cooking port is electrical heating, has the large heating area, high thermal efficiency, uniform heating temperature, heating time is short and easy to control; No dead Angle, material stirring evenly; Pot body shell made in stainless steel material, conform to the requirements of the health and safety, the attachment is complete, good appearance, convenient installation and simple operation, safe and reliable.
1, Control cabinet: Accurate temperature control;
2, reducer with direct-type reducer, the use of national standard motor, power 1.1KW, speed ratio: 1: 59, speed 30r per minute;
3, bracket: all stainless steel tilting, stirring shaft with a new bold design, higher strength, effectively eliminate the friction phenomenon of the mixing shaft, the turbine is ductile iron, the worm for the national standard 45 # carbon steel, hand wheel for Q235 carbon Structural steel chrome plated with stainless steel shield;
4, electric tube: 304 seamless steel pipe made of connection for the threaded connection, disassembly, easy maintenance.
5, stir cage: all stainless steel production.
2.Jacketed pot Technical parametersModel |
WM-JCG100 |
WM-JCG200 |
WM-JCG300 |
WM-JCG400 |
WM-JCG500 |
Inner Pot Diameter |
700mm |
800mm |
900mm |
1000mm |
1100mm |
Outer Pot Diameter |
800mm |
900mm |
1000mm |
1100mm |
1200mm |
Thickness |
Inner 3mm Outer 3mm |
Inner 3mm Outer 3mm |
Inner 3mm Outer 3mm |
Inner 3mm Outer 3mm |
Inner 3mm Outer 3mm |
Mixing motor Power |
1.1KW |
1.1KW |
1.5KW |
1.5KW |
2.2KW |
Mixing Speed |
30r/min |
30r/min |
30r/min |
30r/min |
30r/min |
Heating area |
0.87m2 |
1.23m2 |
1.65m2 |
1.99m2 |
2.21m2 |
Heat transfer oil amount |
35L |
45L |
56L |
70L |
85L |
Total Power |
15Kw |
15Kw |
18Kw |
18Kw |
27Kw |
Dimension |
1000*1000*1200mm |
1100*1100*1200mm |
1200*1200*1500mm |
1400*1400*1500mm |
1500*1500*1500mm |
weight |
105kg |
135kg |
160kg |
195kg |
250kg |
Remarks,
if do not need mixer funcation, the price will be $275 cheaper.
if do not need pourable dump out fucntion, the price will be $200 cheaper.
3. Jacketed pot Pictures & Videos |
|
|
|
|
|
|
|
