Coconut is rich in various nutrients and has strong processability, so it can be processed in rich varieties. It is reported that there are more than 200 varieties of more than 30 categories in the domestic coconut processing product market, mainly including coconut water, coconut flour, coconut jelly, coconut candy, coconut oil and so on.
Our company Zhengzhou Wenming machinery LTD，have been developing coconut preprocessing machines since 2002 have designed many coconut preprocesssing machines such as Coconut cutter machine，coconut dehusking machine，coconut extraction machine，coconut peeling machine，coconut extractor machine etc.

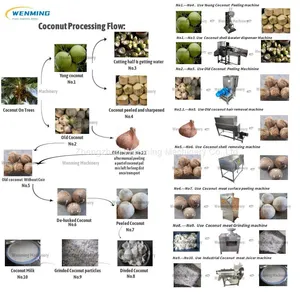

For the coconut pre-processing，here is the processing methord：
Coconut Processing Machines Coconut Milk Processing Line
1.Young Coconut Peeling Machine
Product introduction:
Apply young coconut peeling, get on top of the cone shape coconut; Structure characteristics and working principle: this machine frame, main axis, control system, transmission, cylinder, paring knife, etc. Work, the coconut as to the axis of rotation, press the start button, side cutting knife and taper knife work, to the side of the coconut peel and top peel into a cone, the motor stop running automatically, and then artificial remove coconut, then use knife cut at the bottom of the flat; The equipment outside the parer high speed steel, durable.
Technical parameters & Quotation
Model |
|
Application |
(100~230)*h(100~300)mm |
Size of Coconut after peeling |
(100~180)*h(100~180)mm,can adjustable |
Voltage |
220V |
Power |
0.75kW |
Speed |
5-6cps/min |
|
paring knife
|
2(Side cut and loss relative to center) |
|
Peel control mode
|
Automatic program control, without human operation paring knife |
2.Young Coconut shelling&water dispenser Machine
Product introduction:
Structural features and working principle: The machine is mainly composed of frame, conveyor chain, juice hopper, slag hopper, dial frame, transmission reducer and other important components
composition. After manually placing the coconut on the baffle plate of the conveyor chain, it is driven by the driving shaft to move upward, and the dial frame runs along with it. The machine is slowly lifted and transported to the bottom of the dial. The top of the machine is equipped with a fixed blade, so that the coconut is cut in half under the action of the mutual force between the blade and the dial. The half-cut juice flows into the juice hopper, and a row of blocking bars are installed above the juice hopper to prevent the coconut shells from falling into the juice hopper.
The equipment is made of stainless steel except for the transmission parts.
Technical parameters & Quotation
Model |
WM-PKQS1000 |
Application |
coconut |
Machine size |
3000*1000*2300mm |
Voltage |
380V |
Power |
2.2kW |
Speed |
800-1000pcs/h |

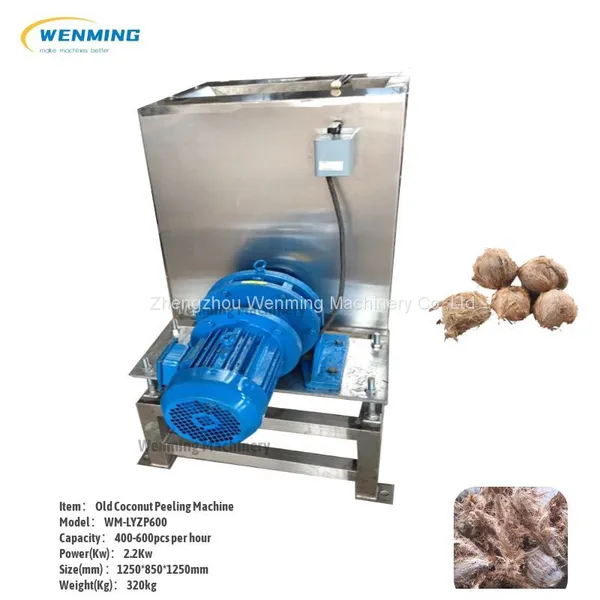

3.Old Coconut Peeling machine
Product introduction:
Structural features and working principle: The machine consists of transmission part, reducer, peeling driving roller, peeling driven roller, peeling bucket, frame and other parts.
become. When working, the motor is driven by the sprocket to make the driving roller rotate, and the driving roller drives the driven roller to rotate through the gear. The old coconut is manually placed between the two rollers, and the coconut is lightly pressed to make the old coconut roll on the peeling roller, so as to achieve peeling. Effect;
The equipment is made of all carbon steel, or made according to customer requirements. Except for the transmission parts, the rest are made of stainless steel.
Technical parameters & Quotation
Model |
WM-LYZP600 |
Capacity |
400-600pcs per hour |
Power(Kw) |
2.2Kw |
Size(mm) |
1250*850*1250mm |
Weight(Kg) |
320kg |

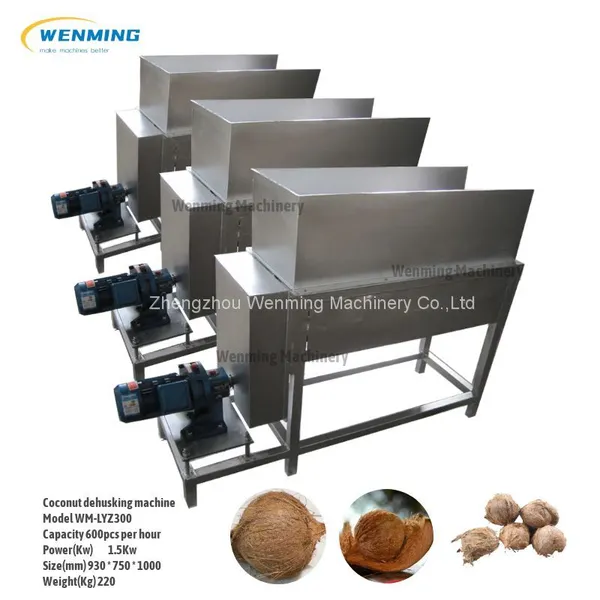

Old Coconut De-hairing machine
Product introduction:
This machine is suitable for coconut hair removal;
Structural features and working principle: The machine consists of a transmission part, a reducer, a hair removal driving roller, a hair removal driven roller, a hair hopper, a frame and other parts.
become. When working, the motor is driven by the sprocket to make the driving roller rotate, the driving roller drives the driven roller to rotate through the gear, the coconut enters between the two rollers, and passes through the depilating teeth on the roller to rotate and depilate, so as to achieve the effect of depilation.
The equipment is made of all carbon steel, or made according to customer requirements. Except for the transmission parts, the rest are made of stainless steel.
Technical parameters & Quotation
Model |
WM-LYZ300 |
Capacity |
600pcs per hour |
Power(Kw) |
1.5Kw |
Size(mm) |
930 * 750 * 1000 |
Weight(Kg) |
220 |
5.Coconut Shell removing machine
Product introduction:
Structural features and working principle: The machine is mainly composed of cutter head, cutter teeth, transmission parts, frame, etc. When working, the motor is driven by the sprocket.
The main shaft is rotated, so that the two cutter heads installed at both ends of the main shaft can be rotated. Several cutter teeth are installed on the cutter head. The cutter teeth are detachable and easy to replace. Place it on the tip of the top of the hulling rod, then slowly tilt the coconut onto the cutter plate for hulling treatment, and gently rotate the coconut until all the shells are removed;
Technical parameters & Quotation
Model |
Capacity |
Power |
Dimension |
Weight |
|
WM-YZPK400 |
200-400pcs/h |
1.5kw |
1000*800*1000mm |
260kg |
6.Coconut Meat suface Peeling machine
Product introduction:
It is suitable for removing the brown skin on the surface of the coconut meat after removing the coconut palm (fiber layer) and the hard shell. Compared with the traditional manual planer peeling method, it saves money
At the same time, the work efficiency is greatly improved;
Structural features and working principle: The machine is mainly composed of a frame, a peeling cutterhead assembly, a transmission and other parts. Manually hold coconut meat with hands while working
Stick to the peeling knife plate, and then turn the coconut meat quickly by hand to remove the skin on all surfaces of the coconut meat;
Except for the transmission parts, the equipment is made of aluminum-magnesium alloy and stainless steel.
Technical parameters & Quotation
Model |
WM-YRXP300 |
Capacity |
500pcs per hour |
Power(Kw) |
1.1Kw |
Knife |
3 |
Size(mm) |
650*550*1220mm |
Weight(Kg) |
220/380v |
7.Automatic Coconut Grinding Machine
Product introduction:
Coconut grinding machine(also called coconut shredding machine, coconut grating machine) is newly developed equipment for grinding the coconut meat into powder with size of 1-4mm, it is suitable to be used for industrial production for coconut powder, and it is a necessary equipment in the line for making coconut milk and coconut oil production.With the force generated by the cone and spirality,the coconut meat in the grinding chamber was pressed by the teeth-shaped knives which are evenly inlaided on the cone-shaped rotator, the coconut meat will be shredded while the high speed knives keep cutting, beating and grinding.
Technical parameters & Quotation
Model |
Capacity |
Power |
Dimension |
Weight |
|
WM-YZ055 |
800-1200kg/h |
5.5kw/380v |
900*880*1030mm |
320kg |
|
WM-YZ075 |
1500-2000kg/h |
7.5kw/380v |
1000*880*1030mm |
350kg |
|
WM-YZ110 |
2500-3000kg/h |
11kw/380v |
1150*900*1130mm |
400kg |
