| Technical Parameter | ||||
| Screw diameter | mm | 50 | 55 | 60 |
| Shot weight | gram | 447 | 540 | 643 |
| Injection capacity | cm3 | 491 | 594 | 707 |
| Injection pressure | kg/cm2 | 2150 | 1780 | 1490 |
| Screw stroke | mm | 250 | ||
| Screw torque | N.m | 1510 | ||
| Heating power | kw | 16.6 | ||
| Clamping force | ton | 200 | ||
| Opening stroke | mm | 500 | ||
| Mould height | mm | 190~530 | ||
| Space between tie bars | mm | 505×505 | ||
| Ejector force/stroke | ton/mm | 5.31/125 | ||
| Oil pump motor | kw | 18.5 | ||
| Packing size | m | 5.9×1.5×2.0 | ||
| Machine weight | ton | 6.8 | ||
| Specifications |
| LCD computer control with big display screen. |
| Hydraulic double proportional Valve |
| Hard chrome plated high tensile strength steel tie bars. |
| Generous space for fitting large moulds. |
| Large opening stroke.. |
| Two transducers to control Clamping and Injection |
| Four stages of injecting, independent velocity and pressure control |
| Hydraulic gear mould height adjustment device. |
| Screw cold-start prevention device |
| Melt decompression control |
| Screw back pressure control |
| Multiple hydraulic ejection |
| Differential area high speed clamping |
| Automatic lubrication system, |
| Centralized lubrication system |
| Low pressure mould protection device |
| Mechanical safety interlock |
| Double electrical safety interlock. |
| Oil filter system |
| Oil tank with inner stainless steel container |
| Many Optional features according to your requirement |
| Component Origin | ||
| Name | Brand | Origin |

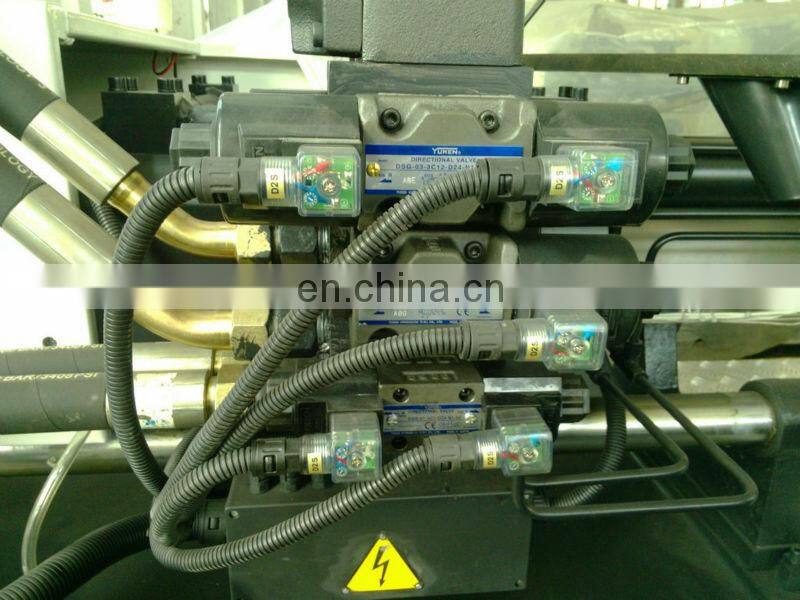

| Reversal Hydraulic Valve | YUKEN | JAPAN |
| Proportional Hydraulic Valve | YUKEN | JAPAN |
| Hydraulic Oil Pump | YUKEN | JAPAN |
| Hydraulic Motor | ZY | Italy-China |
| Hydraulic Hose | KIMBERLEY | GERMANY |
| Sealing Rings | VALQUA | JAPAN |
| Computer | JINGHUA | TAIWAN |
| Display Screen | HITACHI | TAIWAN |
| Linear Transducer | WOOG | JAPAN |
| Limit Switch | National | JAPAN |
| Proximity Switch | FORTEK | TAIWAN |
| Solid State Relay | FORTEK | TAIWAN |
| Contactor | LG | KOREA |
| High-temperature Wire | JAPAN | |
| Air-break Switch | LG | KOREA |
| Main Motor | Specialization | CHINA |
| Automatic Lurication | SANLANG | CHINA |
