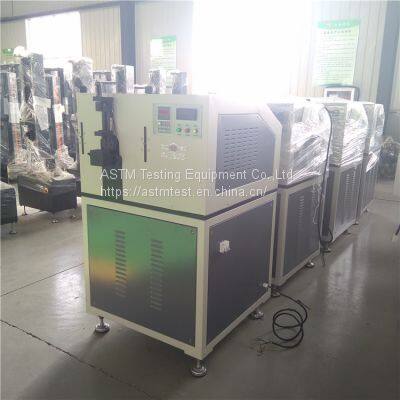

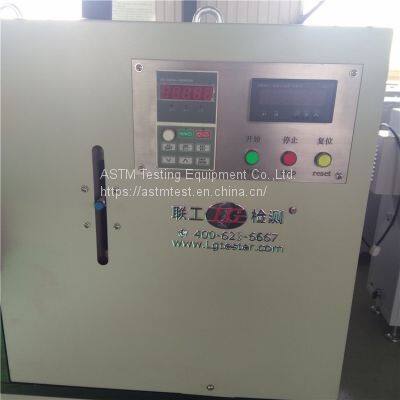

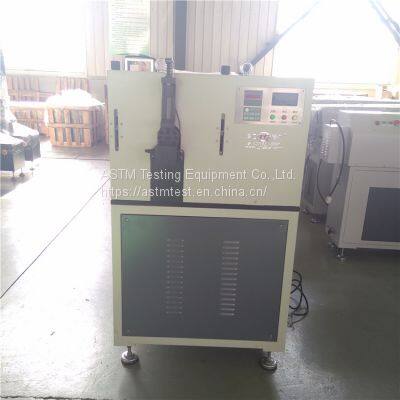

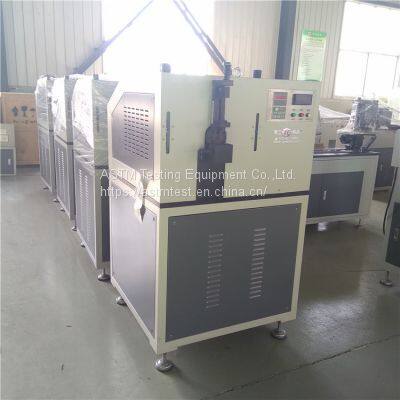

Metal Wire Steel Wire Cable Wire Power-Driven Repeated Bending Testing Machine Price Manufacturer Provide

1. Usage

This test machine is mainly used for repeated bending test of metal wire to test the performance of the metal wire in repeated bending to withstand the plastic deformation and displayed defects;

Meet the test standard GB / T 238-2013 metal wire repeated bending test method;

This machine is widely used in steel, construction industry, prestressed steel wire, wire rope, wire and cable production and user manufacturers;

The machine is equipped with special fixtures by extension, can also do other specifications metal sheet bending test.

2.Main technical parameters

2.1, wire sample diameter: φ0.3mm to φ10mm;

2.2, wire sample length: ≥ 200 mm;

2.3, repeated bending angle: 90 ° ± 1 ° (plane bending);

2.4, counting range: 1 to 99999;

2.5, Display: digital display;

2.6, counting method: automatic recording of bending times;

2.7, bending frequency: ≤ 60 / min ;

2.8, motor power: 4.0kW;

2.9, power: three-phase, 380V, 50Hz;

2.10, Overall dimensions: 1300*900*800mm;

2.11, host weight: about 380 kg;
