Home > Products > Fenders > High Impact Absorption d Fender Customized Extruded Rubber Seals Strip Fender Marine Systems
High Impact Absorption d Fender Customized Extruded Rubber Seals Strip Fender Marine Systems
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
D-type Rubber Fender at Ss12 18meters Extruded Rubber Marine Fender
-
Marine Dock Fender Wharf Fender D150 Rubber Fender For Sale
-
Boat Hollow d Rubber Fender Price
-
Extruded Rubber Fenders D-type Fenders for Small/medium-sized Vessel Berthings
-
Special Corner Fenders Large Bow/stern Tugboat Rubber Fender for Pontoon Protection
-
Fender Solutions Dia 600mm 800mm Marine Tugboat Rubber Fender
Product Description

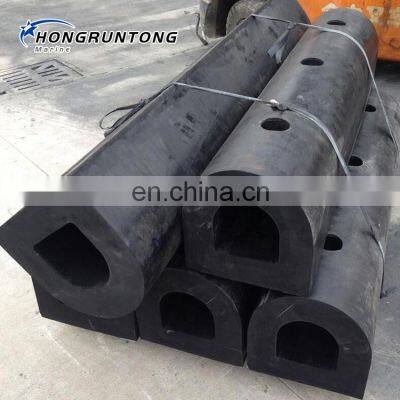

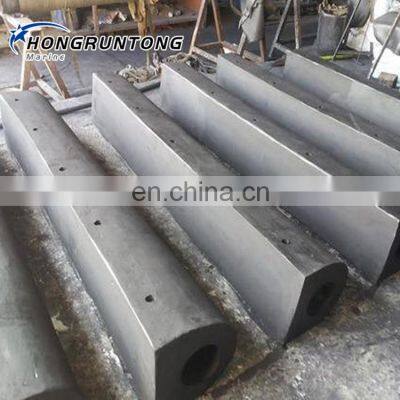

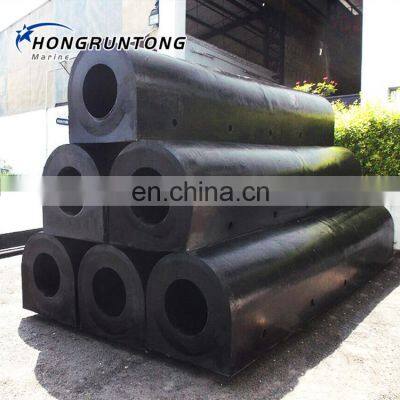

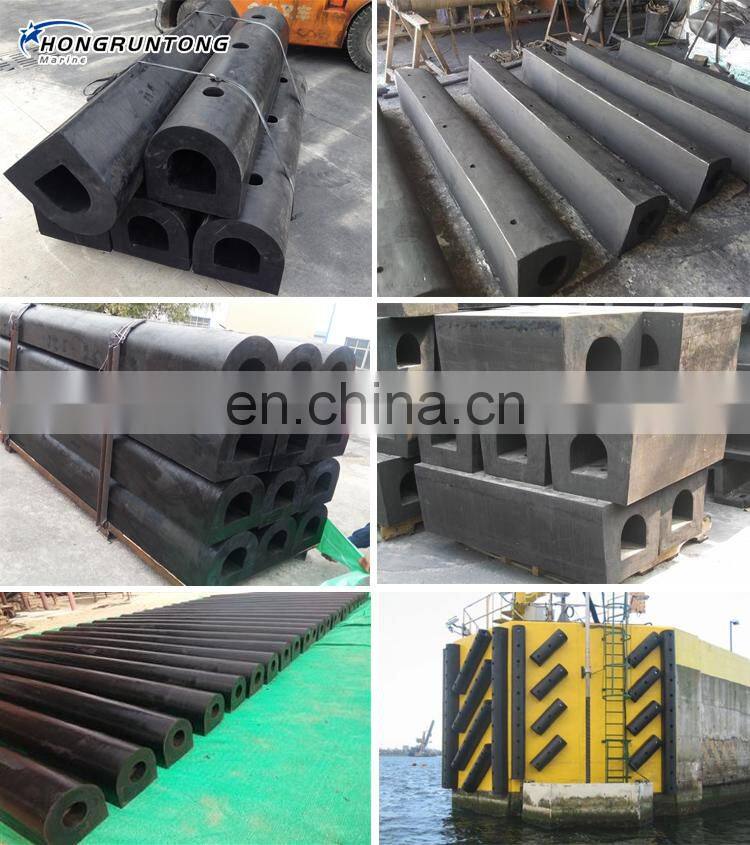

Extruded Fenders

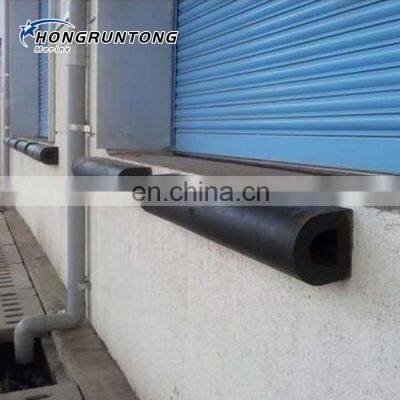

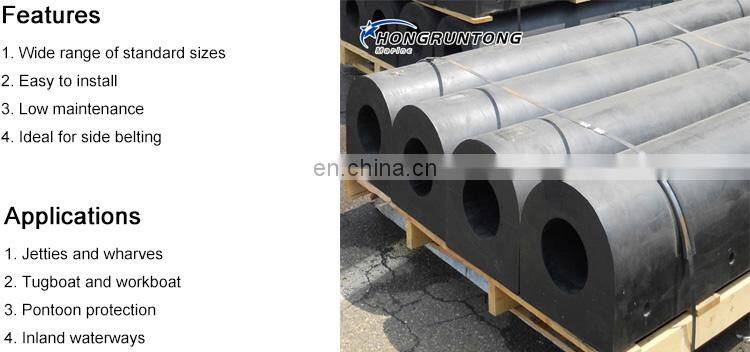

Hongruntong Extruded Fenders are used on Tugs/Ocean-going Vessels. Extruded Fenders are also used for extensive applications on small jetties and fishing harbours. Extruded fenders (also known as D-type fenders and Square fenders) are used for smaller vessels, Tug Boat and lighter applications. They are usually bolted to the structure, either through the top or sides of the fender. Available in various sections including D shape, Square shape and Wing type, they can be supplied in almost any length then cut and drilled as needed.
Fender can be divided into four types below: E-DC, E-SC, E-DD, E-SD.
Product Description
Specification

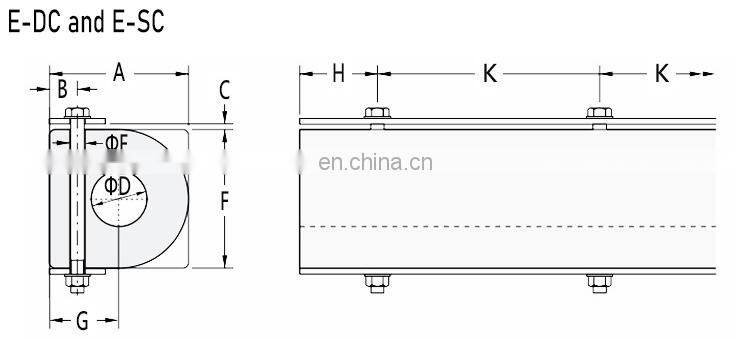

E-DC:
A | B | C | D | E | F | G | H | K | ||||||||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||||||||
100 | 25 | 10 | 30 | 15 | 100 | 50 | 90 - 130 | 200 - 300 | ||||||||
150 | 30 | 12 | 65 | 20 | 150 | 75 | 110 - 150 | 250 - 350 | ||||||||
200 | 45 | 15 | 75 | 25 | 200 | 100 | 130 - 180 | 300 - 400 | ||||||||
250 | 50 | 20 | 100 | 30 | 250 | 125 | 140 - 200 | 350 - 450 | ||||||||
300 | 60 | 25 | 125 | 30 | 300 | 150 | 140 - 200 | 350 - 450 | ||||||||
350 | 70 | 25 | 150 | 35 | 350 | 175 | 140 - 200 | 350 - 450 | ||||||||
400 | 80 | 30 | 175 | 35 | 400 | 200 | 140 - 200 | 350 - 450 | ||||||||
400 | 80 | 30 | 200 | 35 | 400 | 200 | 140 - 200 | 350 - 450 | ||||||||
500 | 100 | 30 | 250 | 35 | 500 | 250 | 140 - 200 | 350 - 450 | ||||||||
*Note: Other sizes can be customized according to the requirements. | ||||||||||||||||
E-SC:
A | B | C | D | E | F | G | H | K | ||||||||
[mm] | [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| ||||||||
100 | 25 | 10 | 30 | 15 | 100 | 50 | 90 - 130 | 200 - 300 | ||||||||
150 | 30 | 12 | 65 | 20 | 150 | 75 | 110 - 150 | 250 - 350 | ||||||||
200 | 45 | 15 | 75 | 25 | 200 | 100 | 130 - 180 | 300 - 400 | ||||||||
200 | 40 | 15 | 100 | 25 | 200 | 100 | 140 - 200 | 300 - 400 | ||||||||
250 | 50 | 20 | 100 | 30 | 250 | 125 | 140 - 200 | 350 - 450 | ||||||||
300 | 60 | 25 | 125 | 30 | 300 | 150 | 140 - 200 | 350 - 450 | ||||||||
350 | 65 | 25 | 150 | 35 | 350 | 175 | 140 - 200 | 350 - 450 | ||||||||
350 | 65 | 25 | 175 | 35 | 350 | 175 | 140 - 200 | 350 - 450 | ||||||||
400 | 70 | 30 | 200 | 35 | 400 | 200 | 140 - 200 | 350 - 450 | ||||||||
500 | 90 | 40 | 250 | 45 | 500 | 250 | 150 - 230 | 400 - 500 | ||||||||
*Note: Other sizes can be customized according to the requirements. | ||||||||||||||||
E-DD:
A | B | C | D | E | F | H | K | |||||||
[mm] | [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| |||||||
70 | 30 | 15 | 30 | 45 | 80 | 90 - 130 | 200 - 300 | |||||||
100 | 45 | 15 | 30 | 50 | 100 | 90 - 130 | 200 - 300 | |||||||
125 | 60 | 20 | 40 | 60 | 125 | 110 - 150 | 250 - 300 | |||||||
150 | 75 | 20 | 40 | 75 | 150 | 110 - 150 | 250 - 300 | |||||||
150 | 80 | 25 | 50 | 100 | 200 | 130 - 180 | 300 - 400 | |||||||
200 | 100 | 25 | 50 | 100 | 200 | 130 - 180 | 300 - 400 | |||||||
200 | 100 | 30 | 60 | 125 | 250 | 140 - 200 | 350 - 450 | |||||||
250 | 125 | 30 | 60 | 125 | 250 | 140 - 200 | 350 - 450 | |||||||
300 | 150 | 30 | 60 | 150 | 300 | 140 - 200 | 350 - 450 | |||||||
350 | 175 | 35 | 75 | 175 | 350 | 140 - 200 | 350 - 450 | |||||||
380 | 190 | 35 | 75 | 190 | 380 | 140 - 200 | 350 - 450 | |||||||
300 | 150 | 35 | 75 | 175 | 400 | 140 - 200 | 350 - 450 | |||||||
400 | 200 | 35 | 75 | 200 | 400 | 140 - 200 | 350 - 450 | |||||||
500 | 250 | 45 | 90 | 250 | 500 | 160 - 230 | 400 - 500 | |||||||
*Note: Other sizes can be customized according to the requirements. | ||||||||||||||
E-SD:
A | B | C | D | E | F | H | K | |||||||
[mm] | [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| [mm]
| |||||||
100 | 45 | 15 | 30 | 50 | 100 | 90 - 130 | 200 - 300 | |||||||
150 | 65 | 20 | 40 | 70 | 150 | 110 - 150 | 250 - 300 | |||||||
125 | 60 | 20 | 40 | 80 | 165 | 110 - 150 | 250 - 300 | |||||||
150 | 65 | 25 | 50 | 90 | 200 | 130 - 180 | 300 - 400 | |||||||
200 | 95 | 25 | 50 | 90 | 200 | 130 - 180 | 300 - 400 | |||||||
250 | 120 | 30 | 60 | 120 | 250 | 140 - 200 | 350 - 450 | |||||||
250 | 115 | 30 | 60 | 140 | 300 | 140 - 200 | 350 - 450 | |||||||
300 | 135 | 30 | 60 | 125 | 300 | 140 - 200 | 350 - 450 | |||||||
400 | 200 | 35 | 75 | 200 | 400 | 140 - 200 | 350 - 450 | |||||||
500 | 250 | 45 | 90 | 250 | 500 | 160 - 230 | 400 - 500 | |||||||
*Note: Other sizes can be customized according to the requirements. | ||||||||||||||
