SMJR338 Tunnelling Jumbo Drilling Rig for Face Drifting Drilling Covering Cross Section 160 m2

FOB Price

US$ 798000 - 850000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T
Delivery Detail40 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Split Mountain	Place of Origin	China
Model Number	SMJR338	Type	Other, development drilling
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1 year after using or 12+1 months after delivery	Weight	45000 KG
Dimension(LWH)	1800030003000(3860)	Power Type	Other, Electro-hydraulic
Voltage	380-660V	Usage	Ore
Condition	New	Power(W)	180kW Deutz TCD6.1L06 + 3*75kW ABB

Product Description

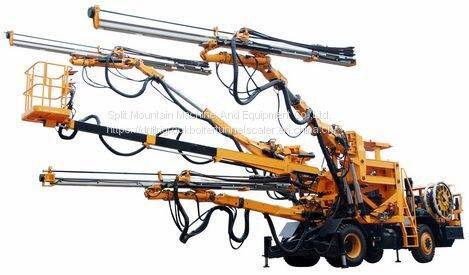

SMJR338 tunneling jumbo, Service basket for smooth and easy utility jobs

Quick Facts

» Drifter / rock drill: HC95LM, 21 kW,

» Feed 360-degree rollover and ±45° Swing,ideal for cross cutting and bolting,

» Hole diameter: 64 - 127 mm with HC95LM Rock Drill/Drifter,

» Coverage: 60 - 178 m2,

» Engine power: 180 kW/2200rpm Deutz,

» Motor power:75 kw ABB*3.

Features

- heavy-duty boom with double tripod suspension for accurate hydraulic parallel holding in all directions,

- heavy-duty aluminium feed with high bending and torsional resistance for maximum durability,

- FOPS/ROPS-certified cabin/canopy offers increased safety for operators,

- Troubleshooting, fault finding and maintenance made easy,

- Spare part commonality across product family.

Technical Specifications

Hydraulic Drifter/Rock Drill		Control System
Type	HC95LM x3	Anti-jamming control	Yes
Percussion power	21kW	Rotation control	Adjustable/Reversible
Percussion pressure	Max. 200 bar	Flushing control	Water flow and pressure
Percussion rate	54 - 62 Hz	Percussion control	Adjustable power
Rotation torque	764 Nm	Voltage	24V
Hole size (bolting)	∅64 - 127mm	Carrier
Shank adapter	T45 / T38 male	Type of carrier	Frame-steered
Boom		Carrier articulation	± 40°
Parallel holding	Complete	Rear axle oscillation	±10°
Lifting angle	Up55°,down 40°	Deutz TCD6.1L06	180 kW
Swing	left 35°,right 35°	Transmission Hydrodynamic	Dana 32000LD
Extension	2500 mm	Front / Rear Axles	DANA 114
Feed extension	1600 mm	Tires	14.00-24
Feed roll-over angle	360° Rotaty Actuator	Service brakes	Hydraulic wet disc
Hydraulic System		Parking and emergency brakes	SAHR fail safewet disc
Powerpack	3 x 75 kW + 1x 35 kW	Tramming speed	Max.15 km/h
Percussion pump	160 cc (variable)	Gradeability / sideways tilt	Max. 15° / 5°
Rotation pump	180 cc (gear)	Ground clearance	430 mm
Filtration	10 µ	Centralized greasing points	10 ports
Oil tank volume	490 liters	Air And Water System
Cooler for hydraulic oil	Oil-to-water 4 x 45 kW	Flushing	By water
Electric System		Water pump capacity	215 l/min
Standard voltages	380 - 690 V (± 10%), 50 or 60 Hz	Rock drill oil consumption	180 - 250 g/h
Total installed power	270 kW	Rock drill air consumption	360 l/min
Batteries(Chargeable)	2 x 12 V, 120 Ah	Air compressor	1.55 m³/min (7 bar)
Cable Reel	80m-100m	Overall with steels 20', others depending on options.
Cable reel lubrication	Manual	Weight	46900 kg
Cable reel mud clean	Manual	Transport length	17880 mm
Front lights	6 x 50W LED (4200 lm, 6000 K)	Tramming / drilling width	3000 mm / 3860 mm
Rear lights	4 x 50W LED (4200 lm, 6000 K)	Tramming / drilling height	3600 mm / 4900 mm
Percussion hour meters	Optional	Turning width(T-section)	4500 mm
Operator remote control	Optional	Turning radius(Inner/Outter)	R6300 / R11900 mm

Optimum operating coverage about 160 m2 with rods / steels 20'.

Tailor-made specifications accepted.
