SMJR15 for Small or Devision Tunnel and Narrow Vein Excavation With Headroom as Low as to 2 Meters
US$ 200000 - 220000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Split Mountain
Place of Origin:
China
Model Number:
SMJR15
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
40 days
Related Products
-
KJ321 Twin Two-boom Mining Jumbo Rig Cross-cut 4wd Four-wheel-drive Center Articulated CarrierUS$ 445000 - 460000MOQ: 1 Set -
KJ215 360-degree Rotation Automatic Parallelism Fast Easy Feed Positioning Accurate Face DrillingUS$ 238000 - 250000MOQ: 1 Set
-
Telescopic Drilling Feed KJ313 With Rotation Actuator Full Automatic Parallelism for BoltingUS$ 250000 - 260000MOQ: 1 Set
-
KJ421 Two-boom Jumbo Reaming Holes Cut Hole Underground Drilling ApplicationsUS$ 445000 - 460000MOQ: 1 Set
-
KJ421 Two Boom Face Drill Rig Jumbo Large Mining Applications Construction Projects Service BasketUS$ 445000 - 460000MOQ: 1 Set
Brand Name
Split Mountain
Place of Origin
China
Model Number
SMJR15
Type
Other, development drilling
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year after using or 12+1 months after delivery
Weight
6600 KG

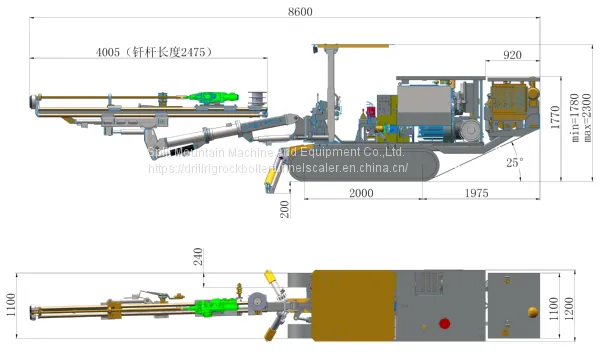

Dimension(L*W*H)
8600*1200*1780
Power Type
Other, Electro-hydraulic
Voltage
380-660V
Usage
Ore
Condition
New
Power(W)
60kW Cummins QSB-C80-31 + 45kW ABB

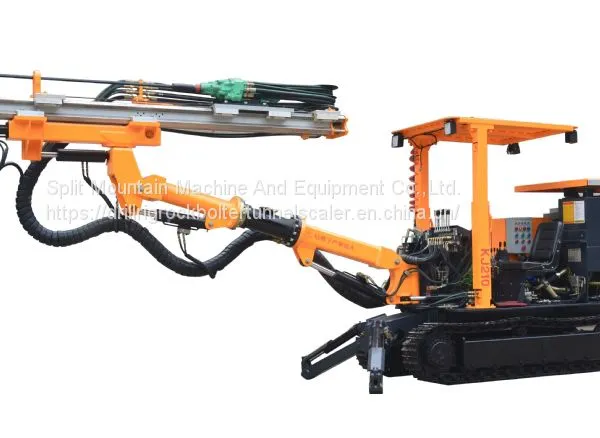

SMJR15 track mounted development drill rig
Features

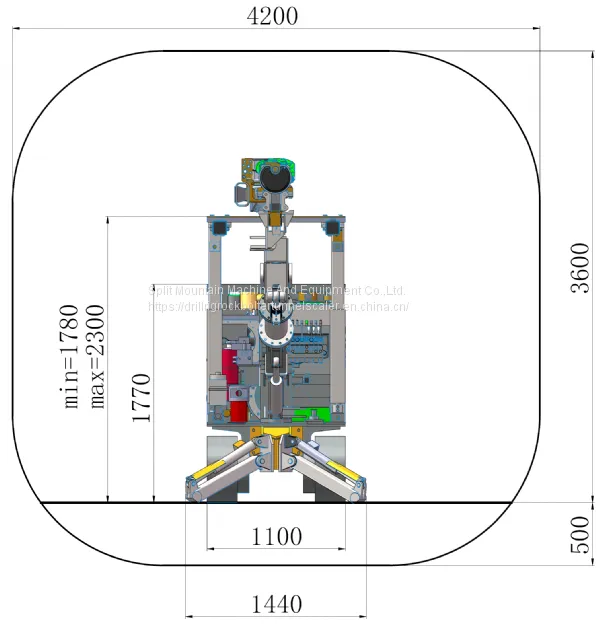

» Designed to work for small or devision tunnel and narrow vein excavation with headroom as low as to 2 meters. Bolting heigth as low as to 2.5 m, offers a good performance-to-cost ratio for 2.3x2.3-meter drifts, gives you tools to increase your productivity, improve safety and lower your operating costs with reliability,
» Past cross sections as small as to 1.5*1.8 m(W*H),
» 360-degrees rotation and full automatic parallelism for fast and easy face drilling,
» All the service points well-protected but easy to access.
Technical Specifications
