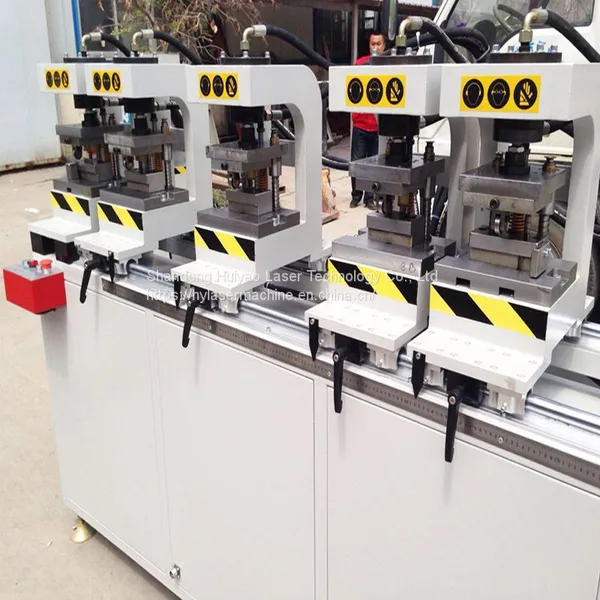

Automatic pv solar panel frame punching machine
Product Description
Aluminum Profile Processing Machine Features
Automatic pv solar panel frame punching machine is used for punching the aluminum frames of solar module.
The distance among the heads can be adjusted according to the user's request, make the distance between the fabrication hole and mounting hole more accurate,so make it easy to install.
The worktable can invoke the different mould at any moment, improving the working efficiency very much.
Automatic pv solar panel frame punching machine,High-precision molds to ensure the accuracy of stamping.
Automatic pv solar panel frame punching machine,Used for punching various process holes of the aluminum frame of photovoltaic modules.
Main Specification and Technical Parameter
Item |
Specification |
Voltage |
380V 50HZ |
Power |
4kw |
The max height of the mould |
200mm |
Pressure of oil pump |
16Mpa |
Capacity of tank |
20L |
Nominal pressure |
50KN |
Nominal pressur length |
60mm |
Size of worktable |
240×210mm |
Dimension |
2400mm×600mm×1200mm |
Weight |
850kg |
