«CRS-718C common rail injector test bench EPS815
stand with QR function optional add EUI/EUP, HEUI C7/C9 test system CRS718C
Product Description
common rail injector tester,
common rail injection pump test bench,
CRS-718C
CRS-718C test bench can test common rail pump & injector & piezo injector.
It test by flow sensor with more precise and stable measurement.
It can add EUI/EUP, C7/C9 test system to this machine(optional).
The data is obtained by computer.
19" LCD screen display.
Please scan the QR code,watch test bench using video
Characteristic
| Main drive adopts the speed change by frequency change. |
Controlled by industrial computer in real time, Windows operating system. Fulfill the remote assistance by internet and make the maintenance easy to operate. |
| Injector oil quantity is measured by high precise sensor and displayed on 19 LCD |
| Drive signal can be adjusted |
| Percentag e of drive signal can be adjusted. |
| Rail pressure can be tested in real time and controlled automatically, it contains the high-pressure protection function. |
| Data can be searched, printed and made into database. |
| Pulse and frequency of the injector drive signal can be adjusted. |
| injection time can be setted. |
| Protection function of short-circuit. |
| Oil temperature is controlled by forced-cooling system. |
| Plexiglass protective door, easy operation, safe protection. |
| Measure the flux of common rail pump by flow meter sensor. |
Functions
Common Rail Injector | Common Rail Pump |
1. test brands: all common rail injector | 1. test brands: all common rail pump |
2. test 1 piece of injectors at a time. | 2. test the sealing of common rail pump. |
3. test the max. oil quantity of high-pressure common rail injector. | 3. test the internal pressure of common rail pump. |
4. test the cranking oil quantity of high-pressure common rail injector. | 4. test the proportional electromagnetic valve of common rail pump. |
5. test the backflow oil quantity of high-pressure common rail injector. | 5. test the input pressure of common rail pump. |
6. test the average oil quantity of high-pressure common rail injector. | 6. test the flux of common rail pump. |
7. set the high-pressure common rail injector's injection state and oil quantity measurement. | 7. measure the rail pressure in real time. |
8. Data can be searched, printed and made into database. | 8. Data can be searched, printed and made into database. |
Test photos
« « Test CP3 Pump
Test Common rail injector » »
« « Test EUI/EUP
Test HEUI injector » »
« « Test HP0 Pump

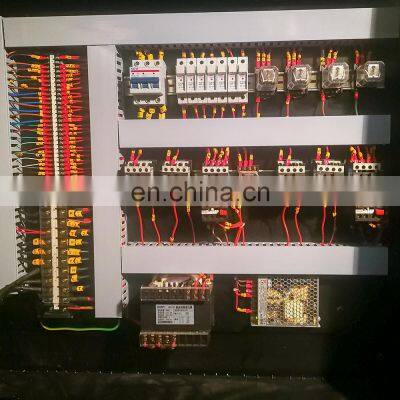

Detailed Images
Technical Parameters
Injection testing frequency | 50~3000 rpm |
Pulse width | 0.1~200 ms |
Continuous injection times | 0~1000 |
Fuel temperature | 40±2°C |
Supply oil quantity of common rail injector | 0~200cc/min 0.5% |
Rail high pressure | 0~1800 bar |
Test oil filtered precision | 5μ |
Input power | 380V/50hz/3phase or 220V/60hz/3phase |
Rotation speed | 0~4000RPM |
Oil tank capacity | 60L |
Flywheel inertia’s moment | 0.8KG.M2 |
Center height | 125MM |
Output power | 11KW |
Overall dimension(MM) | 1600×650×1300 |
Weight | 1000 kg. |
Payment & Shipping
We can accept T/T
Delivery Time:10-15days after received your payment.
Packaging Details:Plywood case.
