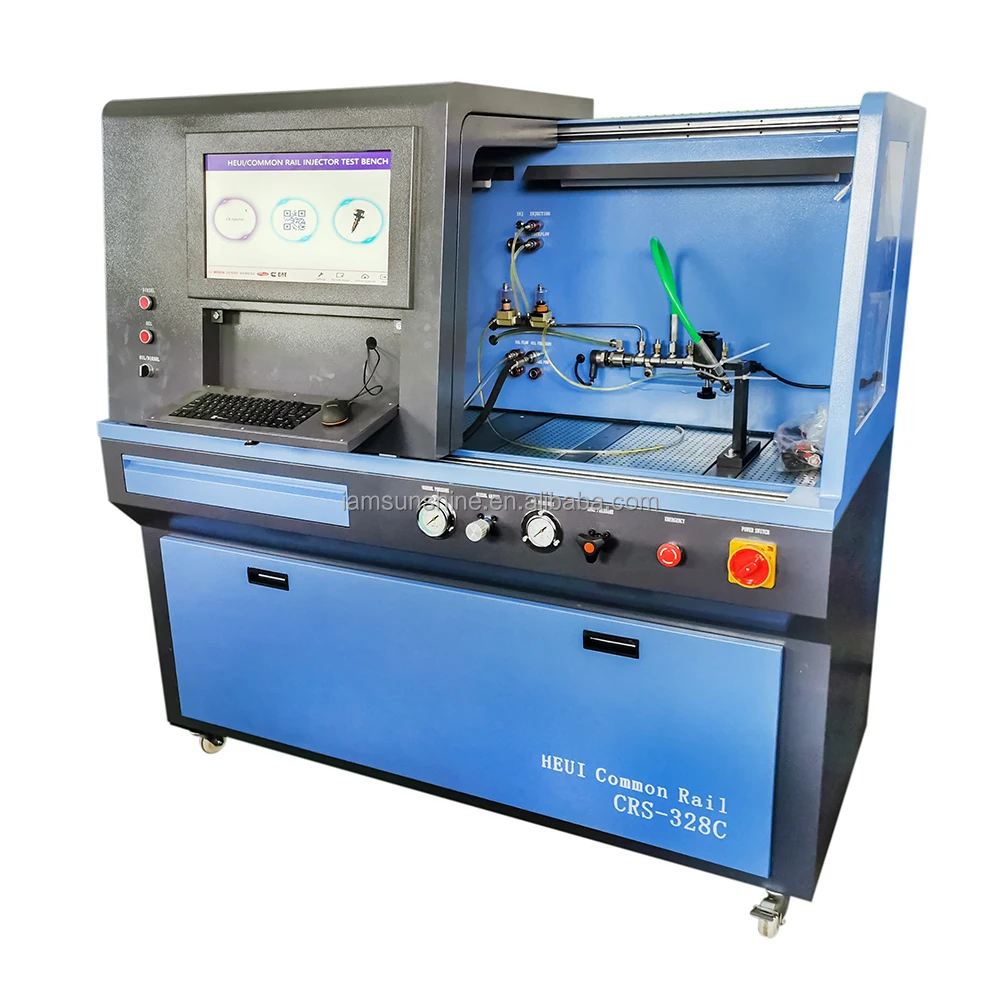

CRS-328C Common Rail Injector Tester
>>>CHARACTERISTIC
1.Main drive adopts the speed change by frequency change.
2.Controlled by industrial computer in real time.
3.Oil quantity is measured by flowmeter sensor and displayed on 19 LCD.
4.Rail pressure can be tested in real time and controlled automatically, it adopts closed-loop control system
5.Data can be searched, saved and printed (optional).
6.Pulse width of the injector drive signal can be adjusted.
7.Forced cooling system,it contains more than 600 kinds of injectors data by computer
8.Protection function of short-circuit.
9.Plexiglass protective cover, easy and safe operation.
10.it contains the high-pressure protection function.
Test common rail injector
Testing Piezo Injectors
Test the HEUI injector
Test the resistance and inductance of the solenoid valve of the ordinary injector
Test the capacitance of the piezoelectric injector
Can test the opening pressure of the injector
Doctor Den o Del pi code generation (optional)
Test 4-pin injector (optional)
Can be equipped with injector response time (optional)
Can detect oil/diesel leakage
Real-time display of fuel injection volume and fuel return volume
Test oil automatic heating/cooling control
Chinese, English, Spanish and other multi-language interface switching
Data upgrade, easy to update software
Can be remotely controlled
| Rail pressure: | 0~2300 bar |
| Pulse width: | 0.1~200 ms; |
| Test oil filtered precision: |
100~3000μ |
| Lub.oil pressure: | 0~25Mpa; |
| Rotation speed: | 0~2000RPM |
| Input power: | 380V/50hz/3phase or 220V/60hz/3phase |
| Fuel temperature: | 40±2℃ |
| Oil tank capacity: | 30L |
| Overall dimension(MM): |
1800×850×1580 |
| Weight: | 560KG. |
Taian Sunshine Industry CO.is specialized in the sell of diesel fuel injection systems parts for diesel engines.our main parts are Diesel Common Rail Nozzle, Diesel Common Rail Control Valves of different brands, Diesel Common Rail Sensor, SCV Valve, Common Rail Diesel Repair Kits, High Pressure Common Rail Injectors....Today we have established a professional working team under the spirit of “best quality and service in China”.
Taiansunshine expects to make prosperity together with you.
