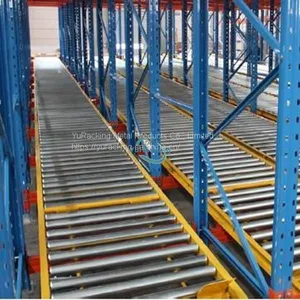

Pallet Flow Racking, also called Pallet Gravity Racking, or Gravity Roller Pallet Racking, is high density storage solution, FIFO (first in first out). The main parts of gravity flow pallet racking: frame, connect beam, rollers, the pallets go into the channel smoothly as the roller gravity design. In terms of such flow through racking, there is braking rollers in the middle parts and stopper rollers in the end. The gravity racks for pallets can keep the pallet in a stable speed, and make sure the safety of the whole system.
The Features of Pallet Flow Racking
·
Fewer Aisle, around 70% space saving;
8-9 pallets position in the depth direction;
Forklift no need go into the racking area, just put the pallets on the rollers;
Saving space and labor cost, forklift no need go into the aisle, few damages happens.
·
The Specification of Pallet Flow Racking
Material |
Steel Q235 |
Size |
Customized as the warehouse demands |
Thickness |
1.5mm-3.0mm |
Load Capacity |
1000-1500kg/pallet; 6000-18000kg/bay |
Surface |
Powder Coated or Galvanized |
Feature |
Anti-rust, Corrosion-protection |
Forklift Type |
Conventional forklift fixes the racking top pallets height |
Sample/OEM/ODM |
Available |
Packing |
Post: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet) |
Bracer: pallet size: L=bracer length*W1.1m*H1.1m | |
Delivery Time |
15 days after deposit |
Pallet Flow Racking Upright Frame Load Capacity
Upright Section Size (mm) | |||||||||
|
Beam Space (mm) |
Loading(kg) |
80*60*2.0 |
90*60*2.0 |
90*70*2.0 |
100*70*2.0 |
100*75*2.0 |
120*75*2.0 |
120*95*2.0 |
120*95*2.5 |
≧1500mm |
≦5000Kg |
≦7000Kg |
≦8500Kg |
≦10500Kg |
≦12000Kg |
≦14500Kg |
≦16500Kg |
≦18500Kg |
|
1400-1500mm |
≦6000Kg |
≦8000Kg |
≦9000Kg |
≦11500Kg |
≦13500Kg |
≦15500Kg |
≦18000Kg |
≦20000Kg |
|
≦1400mm |
≦8000Kg |
≦9000Kg |
≦10000Kg |
≦12500Kg |
≦14500Kg |
≦17500Kg |
≦19500Kg |
≦22000Kg |
|
There are many warehouse racking suppliers, but we are one of the best choices for you. We provide wide span shelving, pallet rack shelving, warehouse mezzanine rack and etc.
