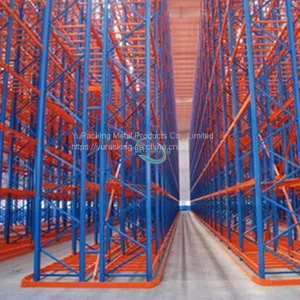

Narrow Aisle Pallet Racking is a high-density VNA Pallet Racking solution, ideal for the space limited warehouse, need less floor area for aisle (around 1.6-1.8m), and height can be up to 22m, save space greatly. The very narrow aisle (VNA) pallet racking system needs special side loading forklifts to load/unload pallets in the narrow aisle.
VNA Racking, this kind of very narrow aisle racking system, using the floor area greatly, cooperate with the special narrow aisle racking forklift, which is designed to work in the narrow aisle less than 1.6m, greatly saved space, moreover, our designer always fix the floor guide rails for the whole very narrow aisle pallet racking system, help the forklift drivers operate more easily, making the VNA Pallet Racking solution available.
Narrow Racking Aisle Advantages and Disadvantages
Narrow Aisle Pallet Racking Advantages
·
Same as selective pallet racking, 100% access to pallets;
··
Much less aisle, just need around 1.6m floor area for the aisle;
·
High density solution, can improve the space usage around 50%;
·
Floor space saving, cost effective solution.
Narrow Aisle Pallet Racking Disadvantages
·
Need special forklift for narrow aisle;
·
Compared with selective pallet racking, cost more;
·
Not commonly used in all warehouses.
The Specification of Narrow Aisle Pallet Racking
Material |
Steel Q235 |
Size |
Length: 1500-3600mm |
Width: 900/1000/1100/1200mm | |
Height: 2000-22000mm | |
Thickness |
1.5mm-3.0mm |
Load Capacity |
1000-4000kg/layer; 6000-25000kg/bay |
Surface |
Powder Coated or Galvanized |
Feature |
Anti-rust, Corrosion-protection |
Aisle Size |
Narrow aisle: 1600mm-1800mm |
Forklift Type |
Special Side Loading Forklift to Very Narrow Aisle Racking |
Sample/OEM/ODM |
Available |
Packing |
Post: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet) |
Bracer: pallet size: L=bracer length*W1.1m*H1.1m | |
Beam: pallet size: L=beam length*W1.1m*H1.1m-1.25m (GP/HQ container) | |
Delivery Time |
15 days after deposit |
All size can be customized as your demands | |
Box Beam Length (mm) | |||||||||
Section (mm) |
Loading (Kg) |
1500mm |
2300mm |
2400mm |
2500mm |
2700mm |
2800mm |
3000mm |
3300mm |
80*50*1.5mm |
3400Kg |
1400Kg |
1300Kg |
1200Kg |
900Kg |
800Kg |
700Kg |
600Kg |
|
100*50*1.5mm |
5600Kg |
2500Kg |
2300Kg |
1800Kg |
1500Kg |
1400Kg |
1250Kg |
1000Kg |
|
120*50*1.5mm |
8900Kg |
3700Kg |
3500Kg |
2700Kg |
2300Kg |
2100Kg |
1850Kg |
1500Kg |
|
140*50*1.5mm |
12000Kg |
5300Kg |
5000Kg |
3800Kg |
3300Kg |
3100Kg |
2700Kg |
2200Kg |
|
160*50*1.5mm |
13500Kg |
7400Kg |
6800Kg |
5300Kg |
4500Kg |
4200Kg |
3600Kg |
3000Kg |
|
140*50*2.0mm |
12800Kg |
7000Kg |
6500Kg |
5000Kg |
4300Kg |
4000Kg |
3500Kg |
2900Kg |
|
160*50*2.0mm |
15000Kg |
8000Kg |
7400Kg |
6900Kg |
6000Kg |
5500Kg |
4500Kg |
4000Kg |
|
Upright Section Size (mm) | |||||||||
|
Beam Space (mm) |
Loading (kg) |
80*60*2.0 |
90*60*2.0 |
90*70*2.0 |
100*70*2.0 |
100*75*2.0 |
120*75*2.0 |
120*95*2.0 |
120*95*2.5 |
≧1500mm |
≦5000Kg |
≦7000Kg |
≦8500Kg |
≦10500Kg |
≦12000Kg |
≦14500Kg |
≦16500Kg |
≦18500Kg |
|
1400-1500mm |
≦6000Kg |
≦8000Kg |
≦9000Kg |
≦11500Kg |
≦13500Kg |
≦15500Kg |
≦18000Kg |
≦20000Kg |
|
≦1400mm |
≦8000Kg |
≦9000Kg |
≦10000Kg |
≦12500Kg |
≦14500Kg |
≦17500Kg |
≦19500Kg |
≦22000Kg |
|
