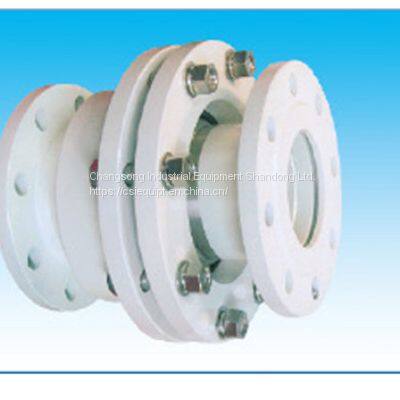

Help CenterEvaporative Cooling Rotary Joint For Walking Beam Furnace Spherical Rotary Joint
Related Products
-
Pipe Connection Rotary Joint MGL Type Rotary Pipe JointNegotiableMOQ: 1 Set -
CRIMPER Swivel Four-way Swivel Joint Rotary Joint for Metallurgical IndustryNegotiableMOQ: 1 Set
-
Swivel Joint High Speed Rotary Union Manufacturer Rotating Joint Stainless Connector Steel Pipe CouplingNegotiableMOQ: 1 Set
-
High Temperature Resistant Fiberglass Products High Purity Alkali Free Glass Fiber Buckle Type Silicone Fiberglass SleeveNegotiableMOQ: 1 Set
-
Plate Chain Steel Chain Plate Steel Conveyor Chain SupplierNegotiableMOQ: 1 Set
Spherical Rotary Joint DESCRIPTION
Working pressure：P＜1.8MPa；P＜2.5MPa；P＜4MPa
Operating temperature：T＜300℃
Maximum Angle of Oscillation：±15°
Rotate 360° on its axis
PN2.5MPa Table of shape and connecting dimension of Spherical Rotary Joint
PN | DN | Ball joint flanged joint | L | D | Do | D1 | n | d | Connecting pipe flanged label |
2.5 | 80 | JB/T82.1-94 | 262 | 195 | 160 | 135 | 8 | 18 | JB/T82.1-94CONVEX surface |
2.5 | 100 | JB/T82.1-94 | 300 | 230 | 190 | 160 | 8 | 23 | JB/T82.1-94CONVEX surface |
2.5 | 125 | JB/T82.1-94 | 308 | 270 | 220 | 188 | 8 | 25 | JB/T82.1-94CONVEX surface |
2.5 | 150 | JB/T82.1-94 | 306 | 300 | 250 | 218 | 8 | 26 | JB/T82.1-94CONVEX surface |
2.5 | 200 | JB/T82.1-94 | 400 | 360 | 310 | 272 | 8 | 26 | JB/T82.1-94CONVEX surface |
PN4.0MPa Table of shape and connecting dimension of Spherical Rotary Joint
PN | DN | Ball joint flanged joint | L | D | Do | D1 | n | d | Connecting pipe flanged label |
4.0 | 80 | JB/T82.1-94CONVEX surface | 266 | 195 | 160 | 120 | 8 | 18 | JB/T82.1-94 |
4.0 | 100 | JB/T82.1-94CONVEX surface | 304 | 230 | 190 | 149 | 8 | 23 | JB/T82.1-94 |
4.0 | 125 | JB/T82.1-94CONVEX surface | 312 | 270 | 220 | 175 | 8 | 25 | JB/T82.1-94 |
4.0 | 150 | JB/T82.1-94CONVEX surface | 364 | 300 | 250 | 218 | 8 | 26 | JB/T82.1-94 |
4.0 | 200 | JB/T82.1-94CONVEX surface | 404 | 360 | 310 | 272 | 8 | 26 | JB/T82.1- |
It can provide other standard products according to User’s requirement.
Installation and maintenance：
1.Installationg ：The spherical rotary joint is directly installed in the pipeline in the form of flange connection. After installation, check whether the tightening bolt is loose. If it is loose, use a wrench to tighten the bolt symmetrically. The tightening force should be limited to keep the ball joint from leaking.
2.Maintenance：The above method can be used to tighten the bolts until the ball joint is no longer leaking after a long period of use.
