Home > Products > Hydraulic control valve > Spring Piston Type Pressure Reducing Valve
Spring Piston Type Pressure Reducing Valve
USD $1 - $1000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- SHANGHAI
- T/T L/C
- 20 days
You May Like
- Second Generation Of Reduced Pressure Regulator Valve
- Bellows type pressure reducing valve Lever type pressure reducing valve
- Manual Control Valve, Self-locking Manual Control Valve
- Kpf-16 Balancing Valve Type
- Water Supply Rotary Valve
- ZYC Self-reliance Type Differential Pressure Control Valve, ZLF-16 Self Balancing Valv
Product Details
Place of Origin: | China | Model Number: | Y410-10 Y416-16 Y425-25 Y42X | Material: | Casting |
Application: | General | Structure: | Control | Standard or Nonstandard: | Standard |
Pressure: | High Pressure | Power: | Pneumatic | Port Size: | DN20-DN400 |
Media: | Base | Temperature of Media: | Medium Temperature |
Product Description
Spring Piston Type Pressure Reducing Valve

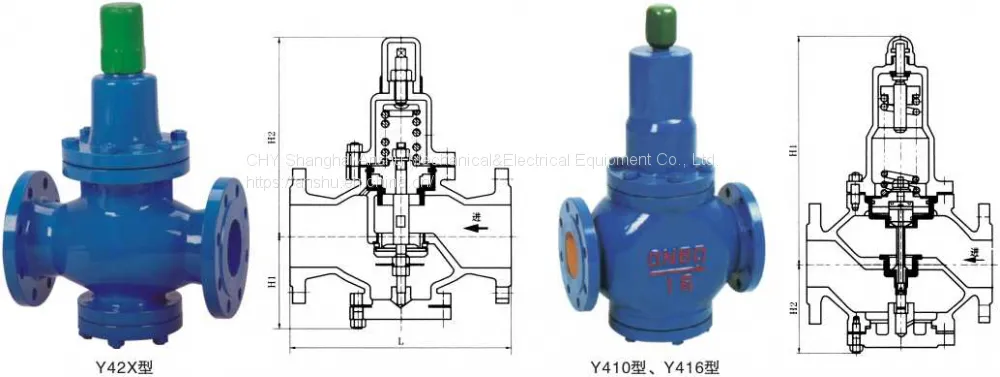

Main dimension
Type | size ( mm ) | ||||||||||||
Y410-10 Y416-16 Y425-25 | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 160 | 160 | 180 | 200 | 200 | 220 | 280 | 310 | 350 | 450 | 520 | 550 | |
H1 | 170 | 170 | 188 | 192 | 270 | 270 | 310 | 403 | 448 | 570 | 590 | 640 | |
H2 | 75 | 75 | 77 | 82 | 98 | 98 | 138 | 152 | 170 | 222 | 242 | 262 |
Y42X Main dimension
DN | L | H1 | H2 | ||||||||
PN16、25 | PN40 | PN64 | PN16 | PN25 | PN40 | PN64 | PN16 | PN25 | PN40 | PN64 | |
20 | 160 | 160 | 170 | 90 | 90 | 90 | 90 | 220 | 220 | 220 | 220 |
25 | 180 | 200 | 200 | 95 | 95 | 100 | 105 | 255 | 255 | 265 | 265 |
32 | 200 | 220 | 220 | 100 | 100 | 100 | 110 | 255 | 255 | 265 | 265 |
40 | 220 | 240 | 240 | 115 | 115 | 130 | 130 | 325 | 325 | 330 | 330 |
50 | 250 | 270 | 270 | 120 | 120 | 135 | 135 | 325 | 325 | 330 | 330 |
65 | 260 | 280 | 300 | 125 | 125 | 130 | 145 | 330 | 330 | 340 | 355 |
80 | 310 | 330 | 330 | 135 | 135 | 150 | 160 | 340 | 340 | 340 | 340 |
100 | 350 | 380 | 380 | 108 | 108 | 185 | 185 | 317 | 317 | 360 | 360 |
125 | 400 | 450 | 450 | 190 | 200 | 200 | 245 | 560 | 560 | 565 | 565 |
150 | 450 | 500 | 500 | 205 | 210 | 240 | 280 | 580 | 580 | 585 | 585 |
200 | 500 | 560 | 560 | 220 | 245 | 245 | 310 | 630 | 630 | 635 | 635 |
250 | 600 | 270 | 750 | ||||||||
300 | 800 | 310 | 780 | ||||||||
350 | 850 | ||||||||||
400 | 900 |
