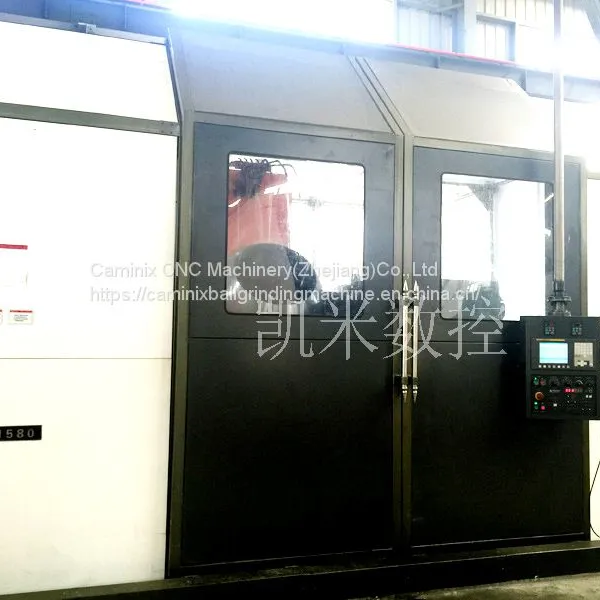

QM1580 CNC Ball Valve Grinding Machine 24''-42'' CAMINIX CNC

QM1580 CNC Ball Valve Grinding Machine 24''-42'' CAMINIX CNC thumbnail-1
QM1580 CNC Ball Valve Grinding Machine 24''-42'' CAMINIX CNC photo-1
US$ 150000 - 190000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CMXCNC
Place of Origin:
China
Model Number:
QM1580
Contact Supplier Request Quote Chat Now
Caminix CNC Machinery(Zhejiang)Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
150 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CMXCNC
Place of Origin China
Model Number QM1580
Type Surface Grinding Machine
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
Weight 15000KGS
Dimension(L*W*H) 7500*5500*3500
Voltage 380V 50HZ
Condition New
Power(W) 55
CNC or Not CNC
Max. Grinding Length 900-1580mm
Max. Grinding Diameter Ball Valve Grinding Machine

CAMINIX Ball Valve Grinding Machine Model List


Item

Unit

                                                                   Main Technical Parameters

QM100

QM380

QM580

QM880

QM1580

QM2280

Max   Grinding Outside Diameter

mm

Φ37-

φ160

Φ88-

φ320

Φ240-

φ560

Φ580-

φ1100

Φ900-

φ1580

Φ1500-

φ2400

Max   Grinding Inner Diameter

Inch

1/2″­­-4″

2″­­-8″

8″­­-16″

16″­­-30″

24″­­-42″

40″­­-64″

Center   Line to The table distance

mm

140

250

315

630

850

1400

Max   Ball Weight

Kg

50

200

1000

2000

8000

18000

Spindle   Motor Power

KW

5.5

15

37

45

55

75

Spindle   Speed

Rpm

100-2000

100～1800

100～1200

100～800

100～800

100～600

Headstock   Rotation Torque

NM

40

50

120

180

15KW

37

Headstock   Rotation Speed

Rpm

6-125

6-125

6-125

6-125

6-125

6-50

X/Z   axis Travel

mm

300/200

600/400

800/500

1000/800

1000/800

1100/900

Tailstock   Adjust Range

mm

/

200

300

600

900

900

Center   Distance Range

mm

40-200

100-500

240-800

500-1100

/

/

Headstock   & Tailstock Apex

Mohs   5#

Mohs   5#

Mohs   6#

Mohs   6#

Cylinder

Cylinder

X/Z   axis poisoning Accuracy

mm

0.02

0.02

0.02

0.02

0.02

0.02

X/Z   axis repeatability Accuracy

mm

0.01

0.01

0.01

0.01

0.01

0.01

Ball   Roughness

Ra

0.2

0.2

0.2-0.4

0.2~0.4

0.4

0.4

Ball   Roundness

mm

0.01

0.01

0.01

0.01~0.02

0.01~0.03

0.01~0.03

Overall   Dimension

(L*W*H)

mm

2400×2000×1800

2800×2400×

2600

3700×2000×

2600

5000×3850×

3200

7500×5500×

3500

11000×8000×3800

Net   Weight

Kg

3000

5000

7500

15000

50000

90000


If you need any more information, please contact us .


Best regards

Caminix CNC Machinery (Zhejiang)Co.,Ltd

Ivy Yu

Product Tags: Ball Valve Grinding Machine , Ball Grinder , Spherical Grinding Machine , Ball Grinding Machine , Valve Grinding machine , Sphere Grinding Machine
