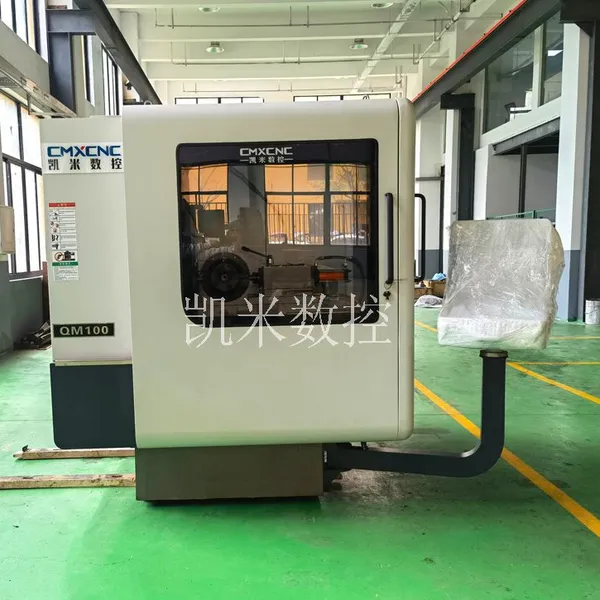

QM100 CNC Ball Valve Grinding Machine 1/2''-4''

FOB Price

USD $40000 - $50000 / Set

1 Set(Min.Order)

Product Details

Brand Name:	CMXCNC	Place of Origin:	China	Model Number:	QM100
Type:	Surface Grinding Machine	Certification:	ISO CE	After-sales Service Provided:	Engineers available to service machinery overseas
Weight:	3500KGS	Dimension(LWH):	240020002200	Voltage:	380V 50HZ
Condition:	New	Power(W):	5.5	CNC or Not:	CNC
Max. Grinding Length:	37-160mm	Max. Grinding Diameter:	Ball Valve Grinding Machine

CAMINIX Ball Valve Grinding Machine Model List

Item	Unit	Main Technical Parameters
Item	Unit	QM100	QM380	QM580	QM880	QM1580	QM2280
Max Grinding Outside Diameter	mm	Φ37- φ160	Φ88- φ320	Φ240- φ560	Φ580- φ1100	Φ900- φ1580	Φ1500- φ2400
Max Grinding Inner Diameter	Inch	1/2″-4″	2″-8″	8″-16″	16″-30″	24″-42″	40″-64″
Center Line to The table distance	mm	140	250	315	630	850	1400
Max Ball Weight	Kg	50	200	1000	2000	8000	18000
Spindle Motor Power	KW	5.5	15	37	45	55	75
Spindle Speed	Rpm	100-2000	100～1800	100～1200	100～800	100～800	100～600
Headstock Rotation Torque	NM	40	50	120	180	15KW	37
Headstock Rotation Speed	Rpm	6-125	6-125	6-125	6-125	6-125	6-50
X/Z axis Travel	mm	300/200	600/400	800/500	1000/800	1000/800	1100/900
Tailstock Adjust Range	mm	/	200	300	600	900	900
Center Distance Range	mm	40-200	100-500	240-800	500-1100	/	/
Headstock & Tailstock Apex		Mohs 5#	Mohs 5#	Mohs 6#	Mohs 6#	Cylinder	Cylinder
X/Z axis poisoning Accuracy	mm	0.02	0.02	0.02	0.02	0.02	0.02
X/Z axis repeatability Accuracy	mm	0.01	0.01	0.01	0.01	0.01	0.01
Ball Roughness	Ra	0.2	0.2	0.2-0.4	0.2~0.4	0.4	0.4
Ball Roundness	mm	0.01	0.01	0.01	0.01~0.02	0.01~0.03	0.01~0.03
Overall Dimension (LWH)	mm	2400×2000×1800	2800×2400× 2600	3700×2000× 2600	5000×3850× 3200	7500×5500× 3500	11000×8000×3800
Net Weight	Kg	3000	5000	7500	15000	50000	90000

If you need any more information, please contact us .
