Introduction

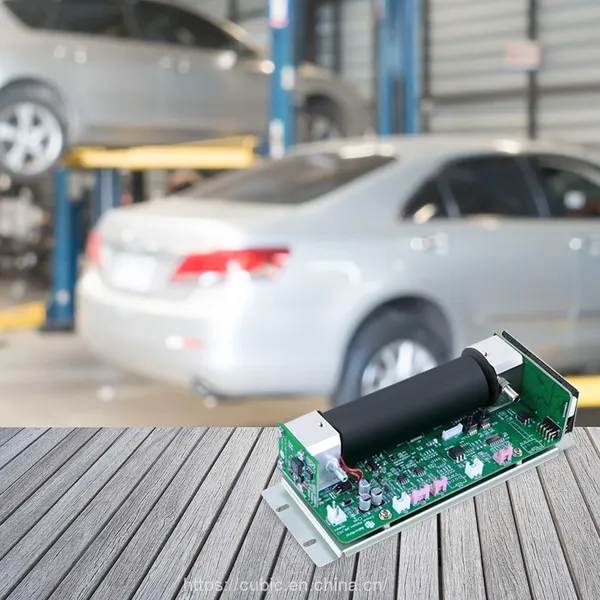

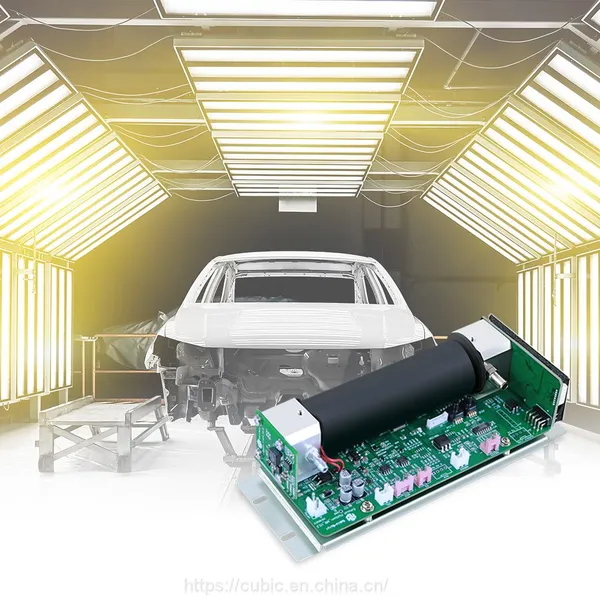

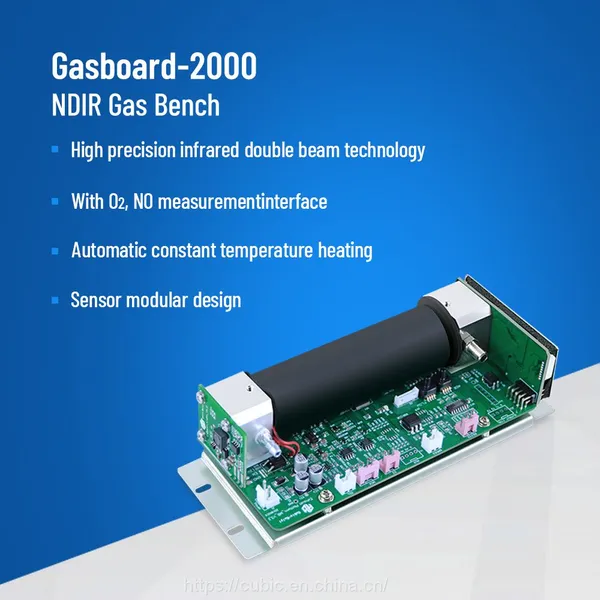

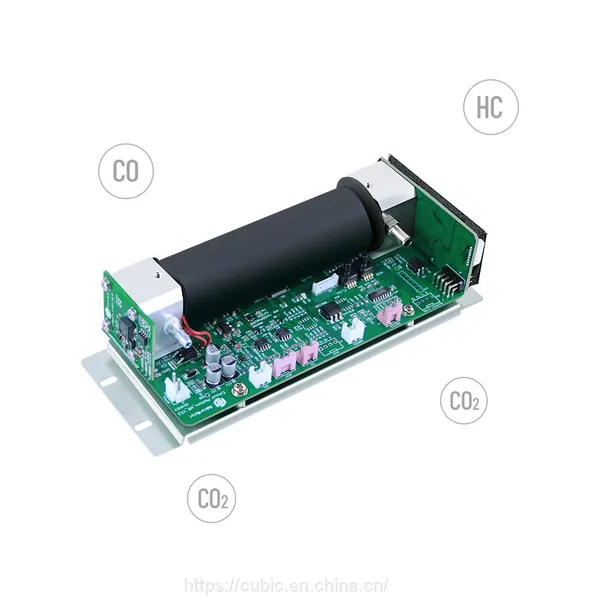

The Gasboard-2000 NDIR gas bench which is based on Dispersive Infra-Red (NDIR) sensing principle to measure CO, CO2, HC in exhaust gases from gasoline and petro engines. The Electrochemical O2 and NO sensors can be plug-in easily on Gasboard-2000. It complies with advanced international standards: OIML R99 Class 1, 0, 00 standards, and widely used by OEM integrators, automobile emission gas analyzer manufacturer due to its flexible integration, high quality and easy maintenance.
Features
1. One NDIR gas bench for CO, CO2, HC 3 gases detection ensures compact design
2. Ultra low range to ppm level measurement
3. Regulated temperature system avoid temperature impact
4. Cleanable gas chamber for easy maintenance
5. Upgradable O2 and NO sensor
6. Compatible with different OEM gas bench suppliers
Specifications
| Gas | HC CO CO2 |
| Measurement range | HC: (0~9999)×10-6 CO: (0.00-14.00)×10-2 CO2: (0.0-18.0)×10-2 |
| Accuracy |
HC: (0~2000)×10-6：Abs. error: ±4×10-6；Rel. error:±3%; (2001~5000)×10-6：Abs. error: --； Rel. error:±5%; (5001~9999)×10-6：Abs. error: --；Rel. error:±10% CO: (0.00~10.00)×10-2：Abs. error: ±0.02×10-2；Rel. error:±3%; (10.01~14.00)×10-2：Abs. error: --；Rel. error:±5% CO2: (0.0~16.0)×10-2：Abs. error:±0.3×10-2；Rel. error:±3%; (16.01~18.0)×10-2：Abs. error: --；Rel. error:±5% *Remark:Abs. error or rel. error whichever is greater |
| Resolution | HC：1ppm； CO2：0.01%； CO：0.01% |
| Response time | T90≤4.5s（NDIR） |
| Commumnication | RS-232 |
| Power supply | 12V±0.2V，3.2A |
