Introduction

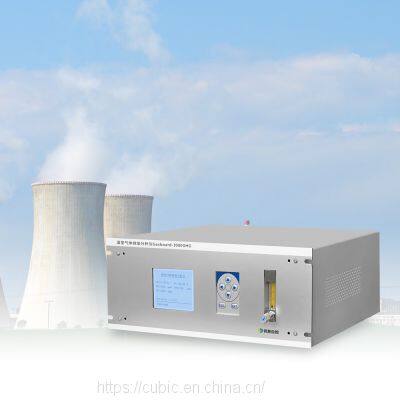

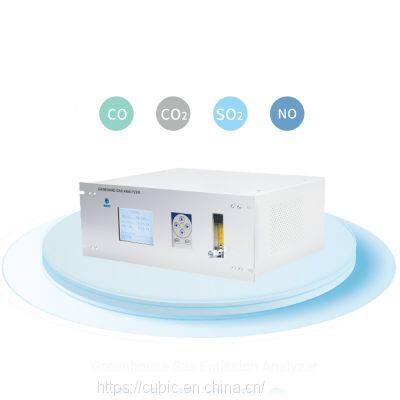

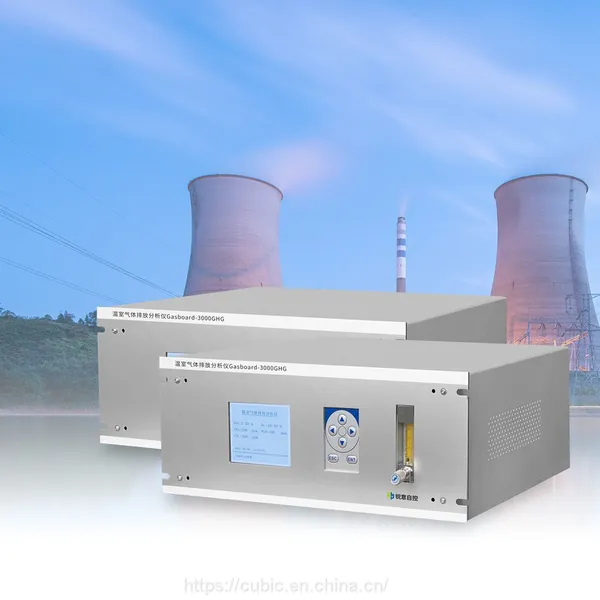

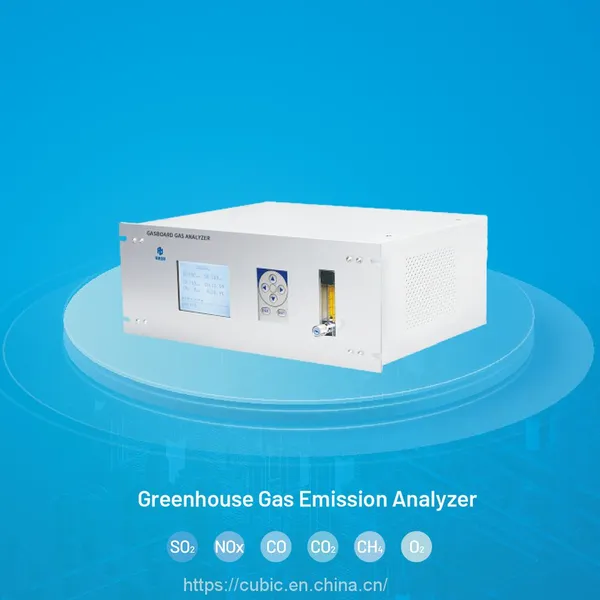

Cubic Instruments (a wholly-owned subsidiary of Cubic Sensor) independently developed Gasboard 3000GHG greenhouse gas emission analyzer.
Adoptting the independent intellectual property rights of Micro flow NDIR dual-chamber sensor technology (international PCT patent PCT/CN2018100767), Cubic-Ruiyi portable greenhouse gas emission analyzer Gasboard 3000GHG can accurately measure the greenhouse gases concentration change of CO2, CH4, N2O etc and CO gas in flue gas at the same time.
Features
1. PCT approved product based on micro-flow NDIR technology to measure low concentration gases. (US Authorization No.: US11079322).
2. One analyzer can simultaneously and continuously measure up to five gases such as CO2, CH4, N2O, CO and O2;
3. CO2, CH4, N2O, CO can choose the patented Microflow NDIR technology, the range can be as low as 200ppm, accuracy up to 1%F.S.;
4. Small drift, anti-moisture interference, good long-term stability;
5. Dual beam NDIR technology can be used to measure CO2 and CO for flexible collocation for medium and high concentration measurement requirements;
6. Both digital and analog signal output functions, simple data management;
Specifications
| Measuring components | CO2, CH4, N2O, CO, O2 |
| Measuring Principle | Micro-flow NDIR:CO2/CH4/N2O/CO Dual beam NDIR:CO2 (high range), CO (Middle or high range) ECD:O2 |
| Measurement range | CO2: Micro-flow NDIR: Range 0-500ppm, resolution: 1ppm Micro-flow NDIR: Range 20%, resolution: 0.01% Dual beam NDIR: Range 25%-100%, resolution: 0.01% CH4: Range 1000ppm, resolution: 1ppm N2O: Range 1000ppm, resolution: 1ppm CO: Micro-flow NDIR: Range 200-500ppm, resolution: 1ppm Dual beam NDIR: Range 1-5%, resolution: 0.001% O2: Range 0-25%, resolution: 0.01% |
| Measurement Precision | Micro-flow NDIR measurement CO2/CH4/N2O/CO: ±1%F.S. Dual beam NDIR measurement CO2/CO: ±2%F.S. Electrochemical measurement O2: ±2%F.S. |
| Repeatability | ≤±1% |
| Response Time | T90 ＜25s |
| Flow rate | (0.7-1.2) L/min |
| Inlet gas pressure | (2-50) kPa |
| Output signal | RS485/RS232, 4-20mA |
| Sample gas requirement | Water remove (non condensing), dust filter (1μm or smaller) |
