Maximum permissible tensile load of conductor: 15N/mm2.
Resistance to torsion test at normal temperature: 30℃10000 Cycles.
Resistance to torsion test at low temperature: -40℃ 2000 Cycles
Oil resistant
Ozone resistant
UV resistant
Resistance to damp and heat
Salt mist resistant
Flame-retardant (IEC60332-1)
Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Torsion Resistant Wind Power Cable Up To 26/35kV

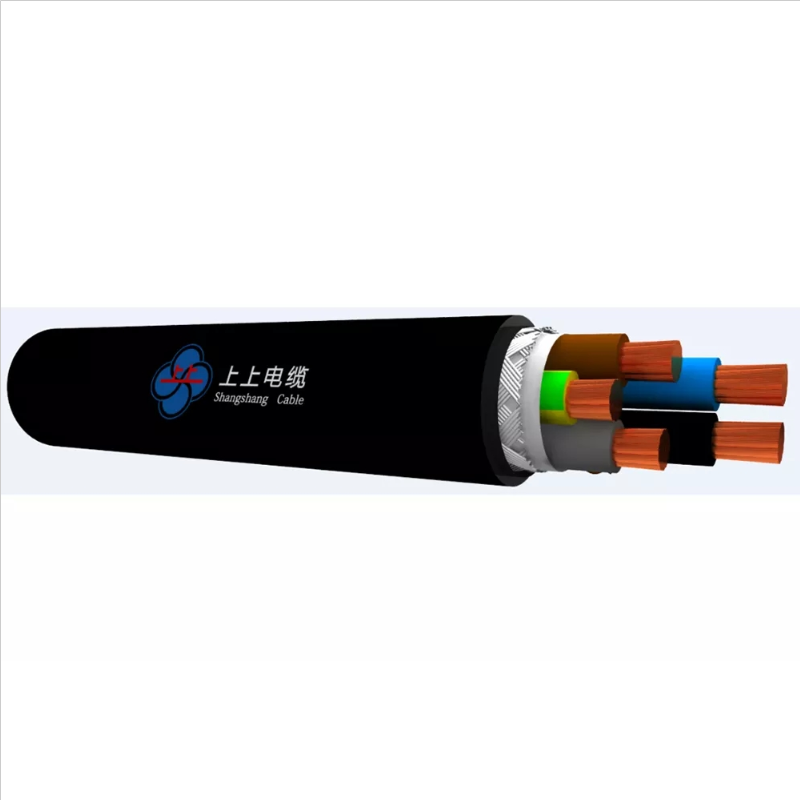

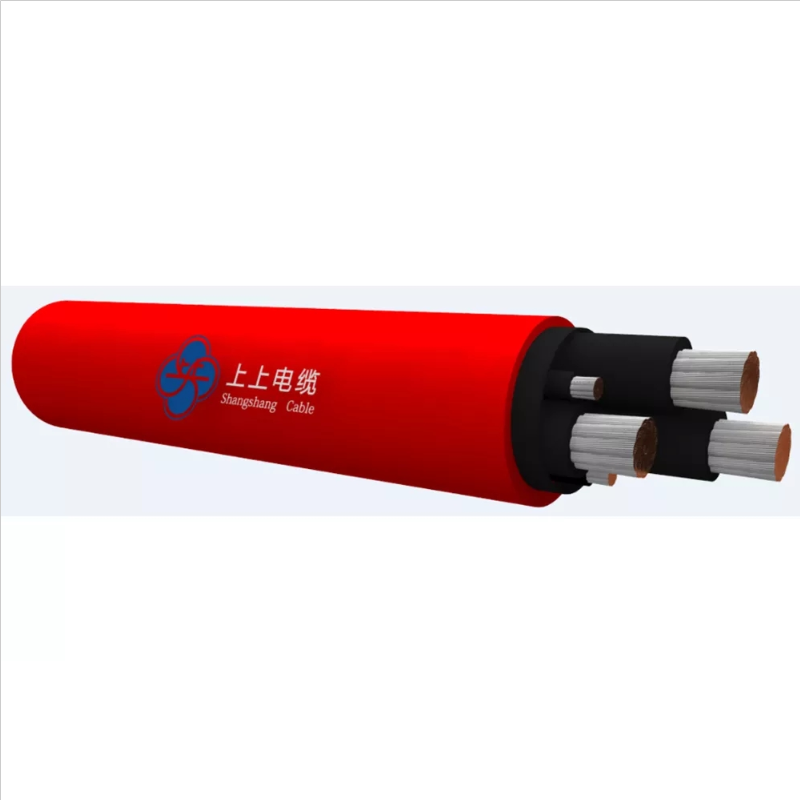

Torsion Resistant Wind Power Cable Up To 26/35kV
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non-Torsion Resistant Wind Control Cable 300/500VNegotiableMOQ: 1 Piece -
Non-Torsion Resistant Wind Data Control Cable(Twisted Pair) 300/500VNegotiableMOQ: 1 Piece
-
Torsion Resistant Wind Control Cable 300/500VNegotiableMOQ: 1 Piece
-
Torsion Resistant Wind Data Control Cable(Twisted Pair) 300/500VNegotiableMOQ: 1 Piece
-
Non-Torsion Resistant High Temperature Wind Power And Control CableNegotiableMOQ: 1 Piece
Brand Name
Jiangsu Shangshang Cable Group Co., Ltd
Place of Origin
China
APPLICATION:
These cables are used to transmit the power energy from the wind turbine generator to the transformer. Can be used in torsion resistant occasions in wind turbines.
These cables are used to transmit the power energy from the wind turbine generator to the transformer. Can be used in torsion resistant occasions in wind turbines.
STANDARD:
GB/T12706.3, IEC60228, Shangshang specifications, or other standards on request.
CONSTRUCTION:
Conductor: Tinned flexible copper wires, as per IEC60228 class 5.
Conductor screen: semi-conductive compound
Insulation: Ethylene propylene rubber (EPR)
Insulation screen: semi-conductive compound
Overall screen (optional): tinned copper wire braided(TCWB)
Sheath: neoprene rubber or similar elastomer, black or red
Conductor: Tinned flexible copper wires, as per IEC60228 class 5.
Conductor screen: semi-conductive compound
Insulation: Ethylene propylene rubber (EPR)
Insulation screen: semi-conductive compound
Overall screen (optional): tinned copper wire braided(TCWB)
Sheath: neoprene rubber or similar elastomer, black or red
RANGE OF SIZE:
3 phase cores + 3 earth cores: 3x25+3E ～ 3x120+3E
CORE IDENTIFICATION:
3C+3E: natural color, earth core: black or yellow/green
SHEATH COLOR:
Black, Red. etc.
SPECIAL FEATURES:
USAGE CHARACTERISTICS:
|
|
|
|
Max. conductor temp. in service |
Max. short circuit temp. (5s) |
Min. operating ambient temperature |
Min. bending radius |
