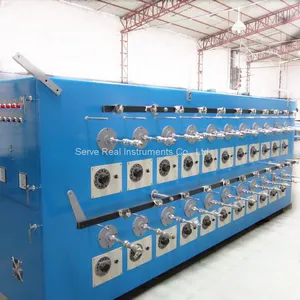

Annealing tin plating machine 4-80 heads
- 50 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A Other
- 120 days
- Tin melting furnace for cable wire tin plating
- High acceleration impact testing machine shock test equipment
- 1L 3L 5L Laboratory rotary evaporator LCD display PID control
- Class A certificated glass measuring cylinder
- Glass desiccators 150mm to 300mm brown white color Boro3.3
- High borosilicate Reagent bottles white brown color
Product Details
Brand Name: | WXSR | Place of Origin: | China | Model Number: | DG-TH5000 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Packaging Details
Polywood box
Product Description
Features
1.1 This equipment is an energy-saving equipment, and the daily electricity consumption is 320 degrees (the traditional model is about 600 degrees).
1.2 Continuous annealing and tinning can be performed at the same time. Low noise, fast speed and stable performance.
1.3 The annealing furnace and the tinning furnace are controlled by SCR+ temperature control table, and the temperature distribution in the furnace is uniform. High precision and energy saving.
1.4 Using 316# stainless steel (the heating wire is CR20Ni08 nickel-chromium wire) heating wire, the temperature is balanced and the heating is fast. Built-in Luyang thermal insulation cotton and aluminum silicate board for heat preservation and heat insulation.
1.5 Adopt stepless speed regulation, lead screw arrangement, and configure frequency converter and deceleration motor.

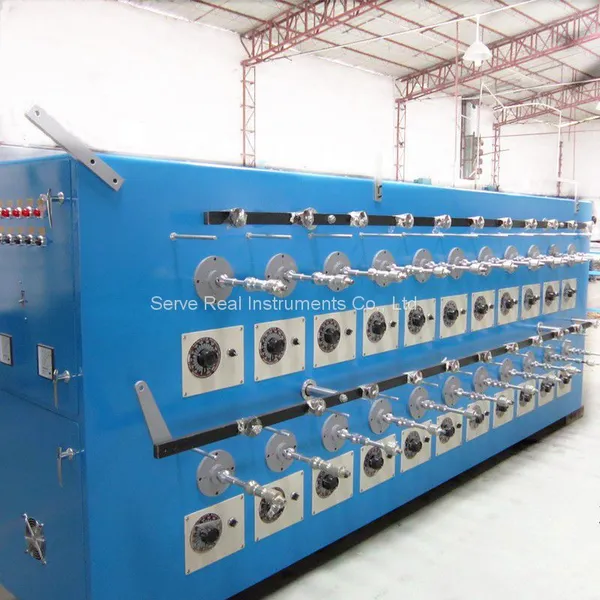

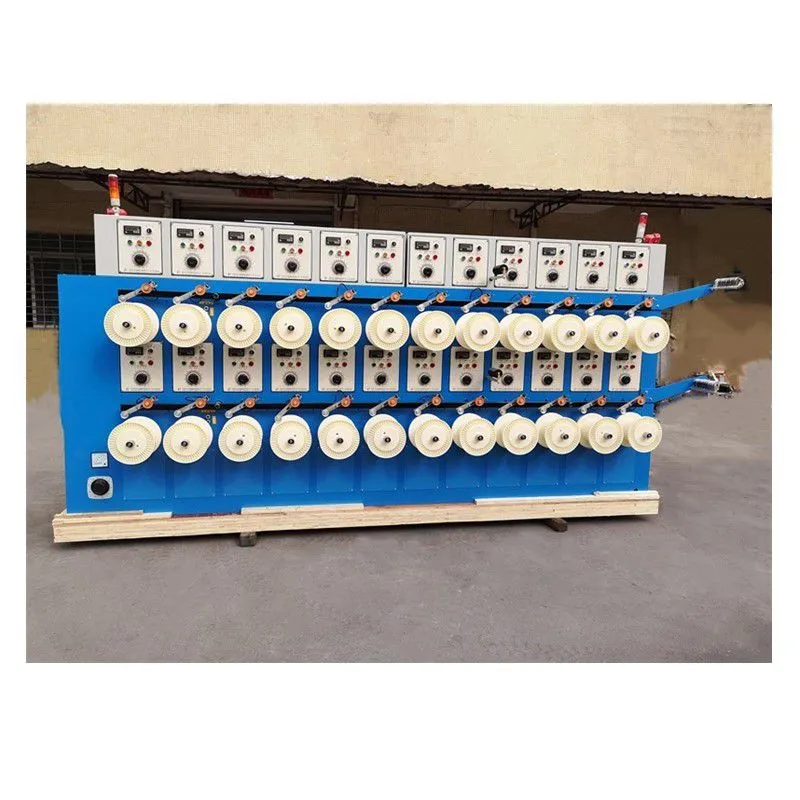

1.6 The wire take-up adopts the upper and lower two-layer integrated type, which can produce several wire diameters at the same time. Each section of each axis is equipped with independent switches, independent torque take-up and voltage regulation.
2. Annealing furnace
2.1 External furnace: It is made of national standard A3 plate by precision welding, with a total length of 9 meters and a thickness of 560 mm.
2.2 Inner tank: This equipment is an energy-saving product with a double tank structure. The inner tank is welded by national standard 304# stainless steel, with built-in Luyang thermal insulation blanket and fiber mechanism board for thermal insulation and heat insulation.
2.3 The hob is equipped with a heating wire to heat up quickly and the temperature is uniform. The total power is 54KW. (A heating tube is available, or specified by the customer.)
2.4 The furnace tube adopts stainless steel seamless tube, the specification is: ø14X2.25X9700mm.
2.5 Temperature control: use Taiwan temperature control meter, segmented temperature control, save energy
Specifications
Production specification | ø0.05-0.08mm, others can be customized |
Number of produced heads | 36 heads, 4-80 heads can be customized |
Applicable take-up reel | PT4—PT10 |
Applicable pay-off reel | Ø200—Ø300 reel |
Pay-off method | aluminum cover brush pay-off |
Annealing furnace tube | Ø14X2.25 stainless steel furnace tube |
Maximum number of modules | 36 (provided by the buyer) |
Extraction system | Porcelain spray drum, frequency conversion control |
Coiling method | 36 head integrated |
Tension control | single head control plus total control |
Wire guide pulley | Ø34 aluminum alloy anodized guide pulley |
Installation size | 18m in total length |
Use voltage | 380VAC, 50HZ |
Total capacity | 40KW |
