US$ 1 - 1000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Z41H Z11H Z61H Z41Y Z11Y Z61Y
Material:
Casting
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days
Related Products
Place of Origin
China
Model Number
Z41H Z11H Z61H Z41Y Z11Y Z61Y
Material
Casting
Application
General
Structure
Gate
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Pneumatic
Port Size
PN1.6 PN2.5 PN4.0 PN6.4MPa PN10.0 PN16.0MPa Class 800Lb
Media
Base
Temperature of Media
Medium Temperature

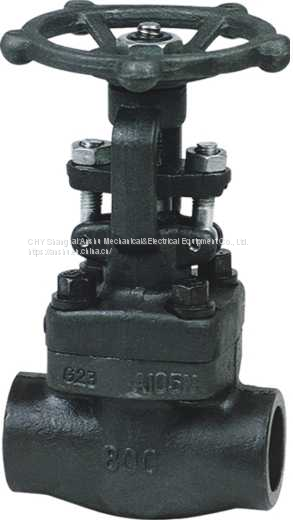

Forged Gate Valve
| Z41H-16C Z41H-25 Z41H-40 Z11H-16C Z11H-25 Z11H-40 Z61H-16C Z61H-25 Z61H-40 | 15 | 90 | 13 | 22.5 | 10 | 1/2“ | 15 | 151 | 118 | 6.9 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4“ | 17 | 182 | 130 | 9.8 | |
| 25 | 120 | 23 | 24.5 | 12 | 1 | 19 | 197 | 150 | 13.5 | |
| 32 | 130 | 28 | 43 | 14 | 11/4" | 21 | 212 | 180 | 19.5 | |
| 40 | 150 | 36 | 49 | 15 | 11/2" | 21 | 231 | 180 | 28.5 | |
| 50 | 155 | 45 | 61 | 16 | 2" | 25 | 253 | 180 | 30.3 | |
| Z41H-64 Z11H-64 Z61H-64 | 15 | 90 | 13 | 22.5 | 10 | 1/2“ | 15 | 151 | 118 | 7.7 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4“ | 17 | 182 | 130 | 11.3 | |
| 25 | 120 | 23 | 34.5 | 12 | 1" | 19 | 197 | 150 | 16.8 | |
| 32 | 130 | 28 | 43 | 14 | 11/4" | 21 | 212 | 180 | 21.2 | |
| 40 | 150 | 36 | 49 | 15 | 11/2" | 21 | 231 | 180 | 32.6 | |
| 50 | 155 | 45 | 61 | 16 | 2" | 25 | 253 | 180 | 35 |

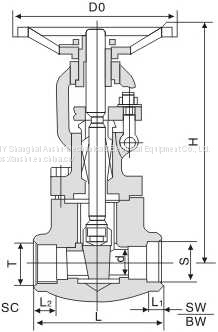

| Type | DN | PN10.0/16.0MPa Class 800Lb | WT (kg) | |||||||
| L | d | S | L1 | T | L2 | H | Do | |||
| Z41Y-100 Z11Y-100 Z61Y-100 | 15 | 90 | 13 | 22.5 | 10 | 1/2“ | 15 | 151 | 118 | 7.8 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4“ | 17 | 182 | 130 | 12.5 | |
| 25 | 120 | 23 | 24.5 | 12 | 1 | 19 | 197 | 150 | 17.5 | |
| 32 | 130 | 28 | 43 | 14 | 11/4" | 21 | 212 | 180 | 23.5 | |
| 40 | 150 | 36 | 49 | 15 | 11/2" | 21 | 231 | 180 | 38.5 | |
| 50 | 155 | 45 | 61 | 16 | 2" | 25 | 253 | 180 | 42.2 | |
| Z41Y-160 Z11Y-160 Z61Y-160 Z41Y-800Lb Z11Y-800Lb Z61Y-800Lb | 15 | 90 | 13 | 22.5 | 10 | 1/2“ | 15 | 151 | 118 | 8 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4“ | 17 | 182 | 130 | 13.6 | |
| 25 | 120 | 23 | 34.5 | 12 | 1 | 19 | 197 | 150 | 19.4 | |
| 32 | 130 | 28 | 43 | 14 | 11/4" | 21 | 212 | 180 | 25.1 | |
| 40 | 150 | 36 | 49 | 15 | 11/2" | 21 | 231 | 180 | 41.6 | |
| 50 | 155 | 45 | 61 | 16 | 2" | 25 | 253 | 180 | 49 | |
