The Dry Ice Cleaning does not cause any damage to the surface of the cleaning object, especially the metal surface, nor does it affect the smoothness of the metal surface.
the dry ice blast cleaning machine is mainly used: 1. In automotive industry - to clean carbon deposits inside the engine, mold, as well as wax and polyurethane residue on the car seat tooling. 2. In tire industry - to clean tire mold. 3. In power industry - to clean generator housings, fan blades and power distribution systems, as well as the surface of stators and rotors. 4. In food industry - to clean carbon deposits on conveyor belts, furnaces, baking trays, rollers, and other transport devices. 5. In printing industry - to clean ink and fuel deposits on gears, guides and nozzle.
Dry Ice Cleaning Machine PrincipleWhen the equipment is working, the dry ice is transferred into the ice mixing chamber at the discharge port of the funnel. There are grooves on the circumference of the ice cutter wheel inside the ice mixing chamber. The grooves can hold dry ice pellets,The mixed popsicle is driven by the motor to rotate,Dry ice is brought into a relatively closed space by rotating motion, mixed with high-pressure air flow, and then pushed by the air flow through the ice conveying pipe, and is constrained to a specific air flow line by the handle spray gun and sprayed out.It hits the dirt surface and instantly expands about 800 times.After its own volume peels the dirt ff the surface of the object, it is taken away by the airflow.Adjust the appropriate amount of ice output according to the strength of dirt adhesion.

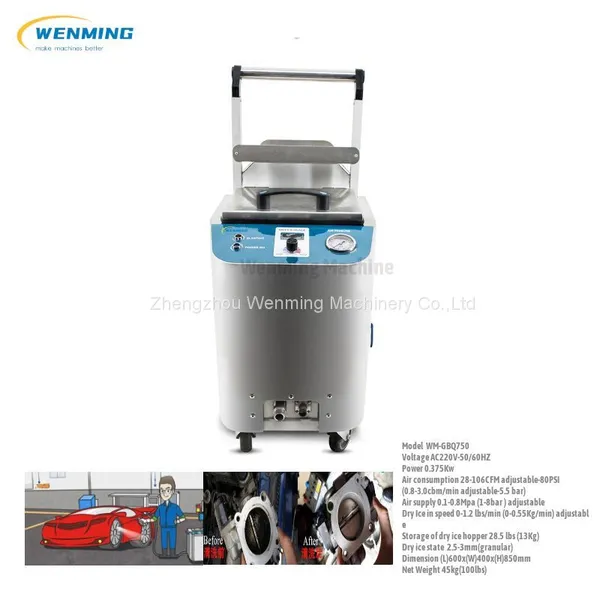

Model |
WM-GBQ700 |
WM-GBQ750 |
Voltage |
AC220V-50/60HZ |
AC220V-50/60HZ |
Power |
0.375Kw |
0.375Kw |
Air consumption |
28-106CFM adjustable-80PSI (0.8-3.0cbm/min adjustable-5.5 bar)
|
28-106CFM adjustable-80PSI (0.8-3.0cbm/min adjustable-5.5 bar)
|
Air supply |
0.1-0.9Mpa (1-9bar ) adjustable
|
0.1-0.8Mpa (1-8bar ) adjustable
|
Dry Ice in speed |
0-1.65 lbs/min (0-0.75Kg/min) adjustable |
0-1.2 lbs/min (0-0.55Kg/min) adjustable |
|
Storage of dry ice hopper |
23.5 lbs (10.5Kg)
|
28.5 lbs (13Kg) |
Dry ice state |
2.5-3mm(granular)
|
2.5-3mm(granular)
|
Protection class |
IP54 |
IP54 |
Drive Mold |
Direct drive |
Direct drive |
Dimension |
(L)510x(W)460x(H)960mm |
(L)600x(W)400x(H)850mm |
Net Weight |
55kg(121lbs) |
45kg(100lbs) |

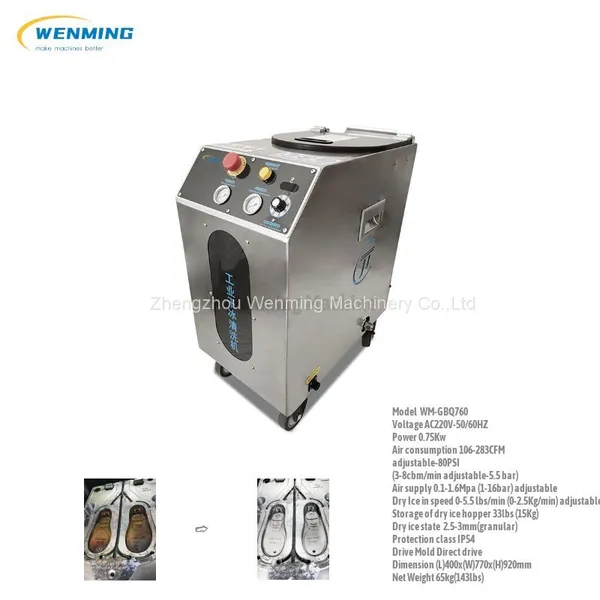

GBQ760 dry ice blaster for Cars and industrial （Click to see more detsails of this model）

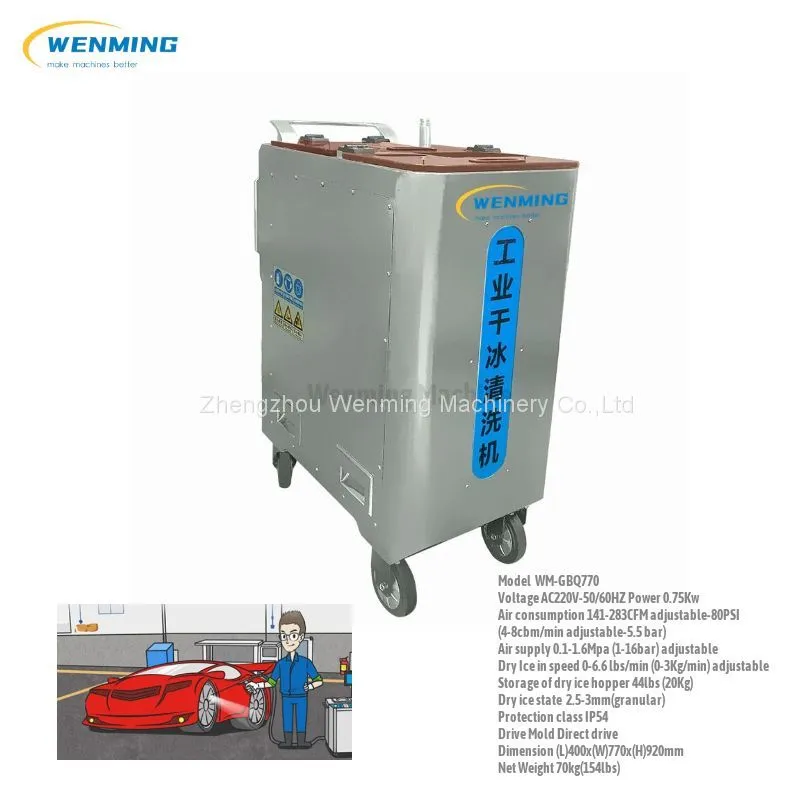

GBQ770 dry ice blasting machine dry ice car cleaner （Click to see details of this model）
Model |
WM-GBQ760 |
WM-GBQ770 |
Voltage |
AC220V-50/60HZ |
AC220V-50/60HZ |
Power |
0.75Kw |
0.75Kw |
Air consumption |
106-283CFM adjustable-80PSI (3-8cbm/min adjustable-5.5 bar)
|
141-283CFM adjustable-80PSI (4-8cbm/min adjustable-5.5 bar)
|
Air supply |
0.1-1.6Mpa (1-16bar) adjustable
|
0.1-1.6Mpa (1-16bar) adjustable
|
Dry Ice in speed |
0-5.5 lbs/min (0-2.5Kg/min) adjustable |
0-6.6 lbs/min (0-3Kg/min) adjustable |
|
Storage of dry ice hopper |
33lbs (15Kg) |
44lbs (20Kg) |
Dry ice state |
2.5-3mm(granular)
|
2.5-3mm(granular)
|
Protection class |
IP54 |
IP54 |
Drive Mold |
Direct drive |
Direct drive |
Dimension |
(L)400x(W)770x(H)920mm |
(L)400x(W)770x(H)920mm |
Net Weight |
65kg(143lbs) |
70kg(154lbs) |

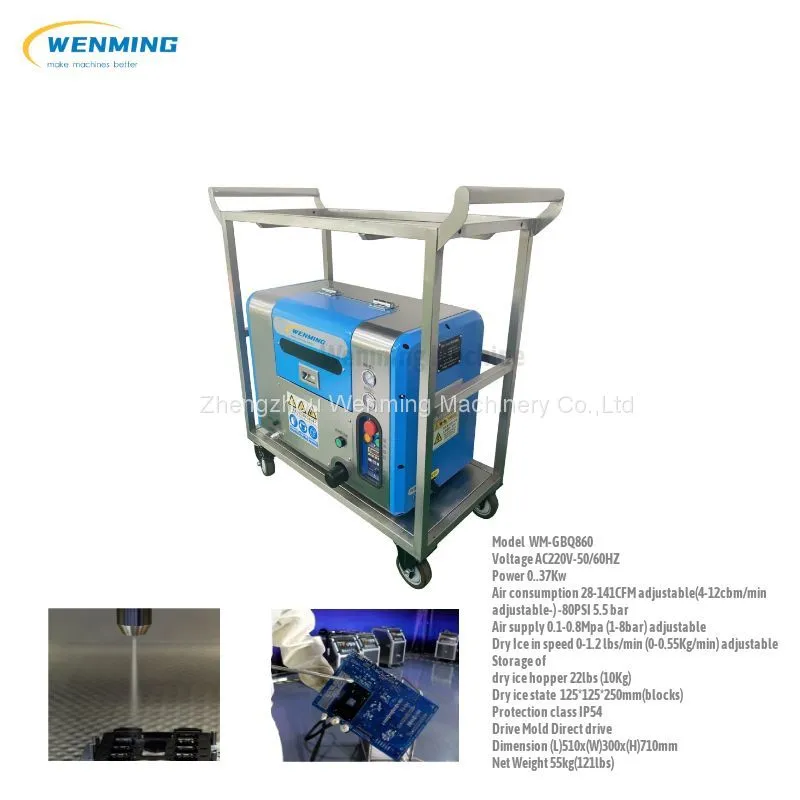

GBQ860 Automatic dry ice blaster machine for 3C industry and molds industry（Click to see more detsails of this model）
Model |
WM-GBQ860 |
Feature |
Voltage |
AC220V-50/60HZ |

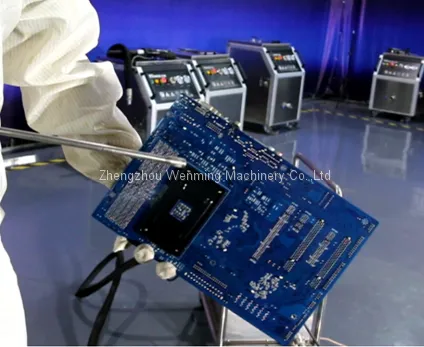

This Dry Ice cleaning system sprays the dry ice of 0.1-0.2mm diameter, is equipped with the function of pressure adjustment and ice volume adjustment. It is special designed for fine operation condition, widely used in deburring of 3C industry and molds industry. It has a high degree of modification, connect with the manipulator, it can realize automatic spraying operation, then cleaning more reliable, more sophisticated |
Power |
0..37Kw |
|
Air consumption |
28-141CFM adjustable(4-12cbm/min adjustable-) -80PSI 5.5 bar |
|
Air supply |
0.1-0.8Mpa (1-8bar) adjustable
|
|
Dry Ice in speed |
0-1.2 lbs/min (0-0.55Kg/min) adjustable |
|
|
Storage of dry ice hopper |
22lbs (10Kg) |
|
Dry ice state |
125*125*250mm(blocks)
|
|
Protection class |
IP54 |
|
Drive Mold |
Direct drive |
|
Dimension |
(L)510x(W)300x(H)710mm |
|
Net Weight |
55kg(121lbs) |

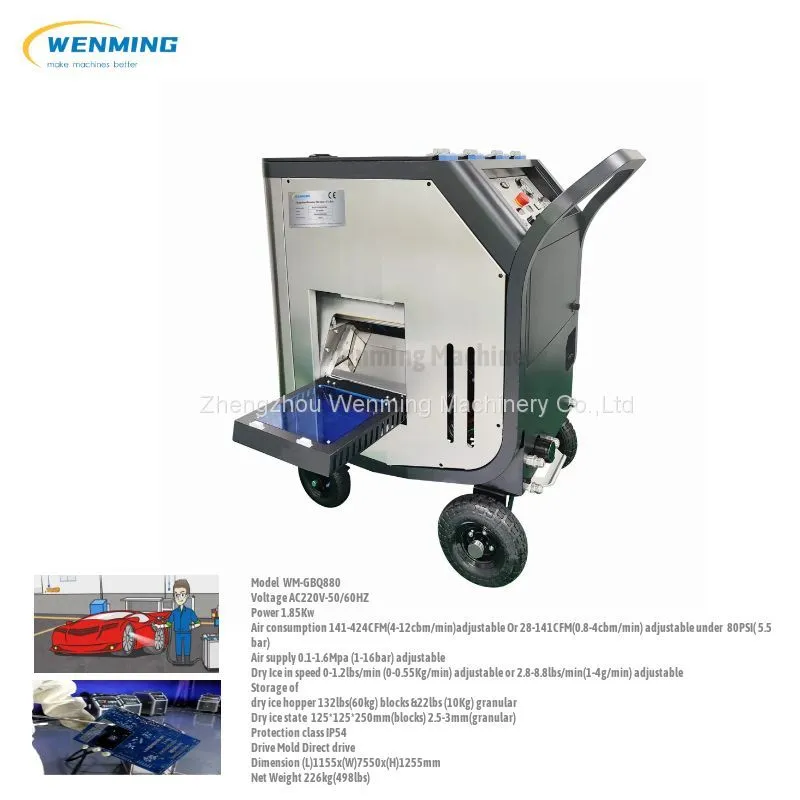

GBQ880 Multifunction Dry Ice Cleaning Machine for dry ice engine cleaning and 3c cleaning can do same time （Click to see more detsails of this model）
Model |
WM-GBQ880 |
Feature |
Voltage |
AC220V-50/60HZ |
Both block&granular dry ice ok，and at the same time. Dual-purpose and can work online at the same time. Spray gently or strongly according to needs. can use any series of dry ice cleaner nozzles as：
|
Power |
1.85Kw |
|
Air consumption |
141-424CFM(4-12cbm/min)adjustable Or 28-141CFM(0.8-4cbm/min) adjustable under 80PSI( 5.5 bar) |
|
Air supply |
0.1-1.6Mpa (1-16bar) adjustable
|
|
Dry Ice in speed |
0-1.2lbs/min (0-0.55Kg/min) adjustable or 2.8-8.8lbs/min(1-4g/min) adjustable |
|
|
Storage of dry ice hopper |
132lbs(60kg) blocks &22lbs (10Kg) granular |
|
Dry ice state |
125*125*250mm(blocks) 2.5-3mm(granular)
|
|
Protection class |
IP54 |
|
Drive Mold |
Direct drive |
|
Dimension |
(L)1155x(W)7550x(H)1255mm |
|
Net Weight |
226kg(498lbs) |

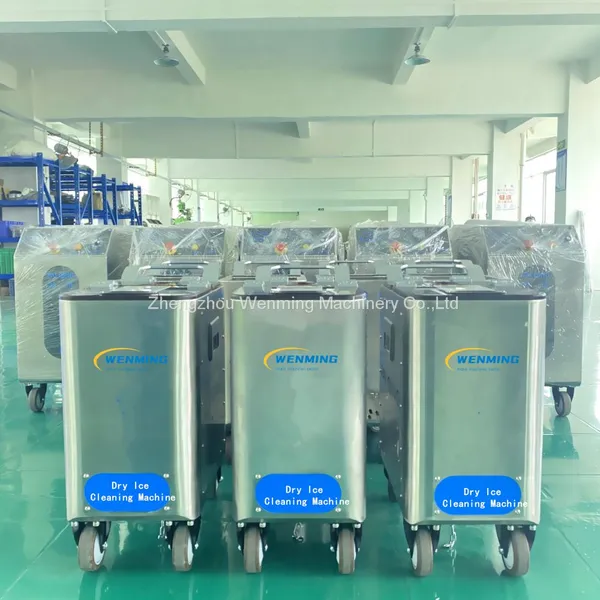

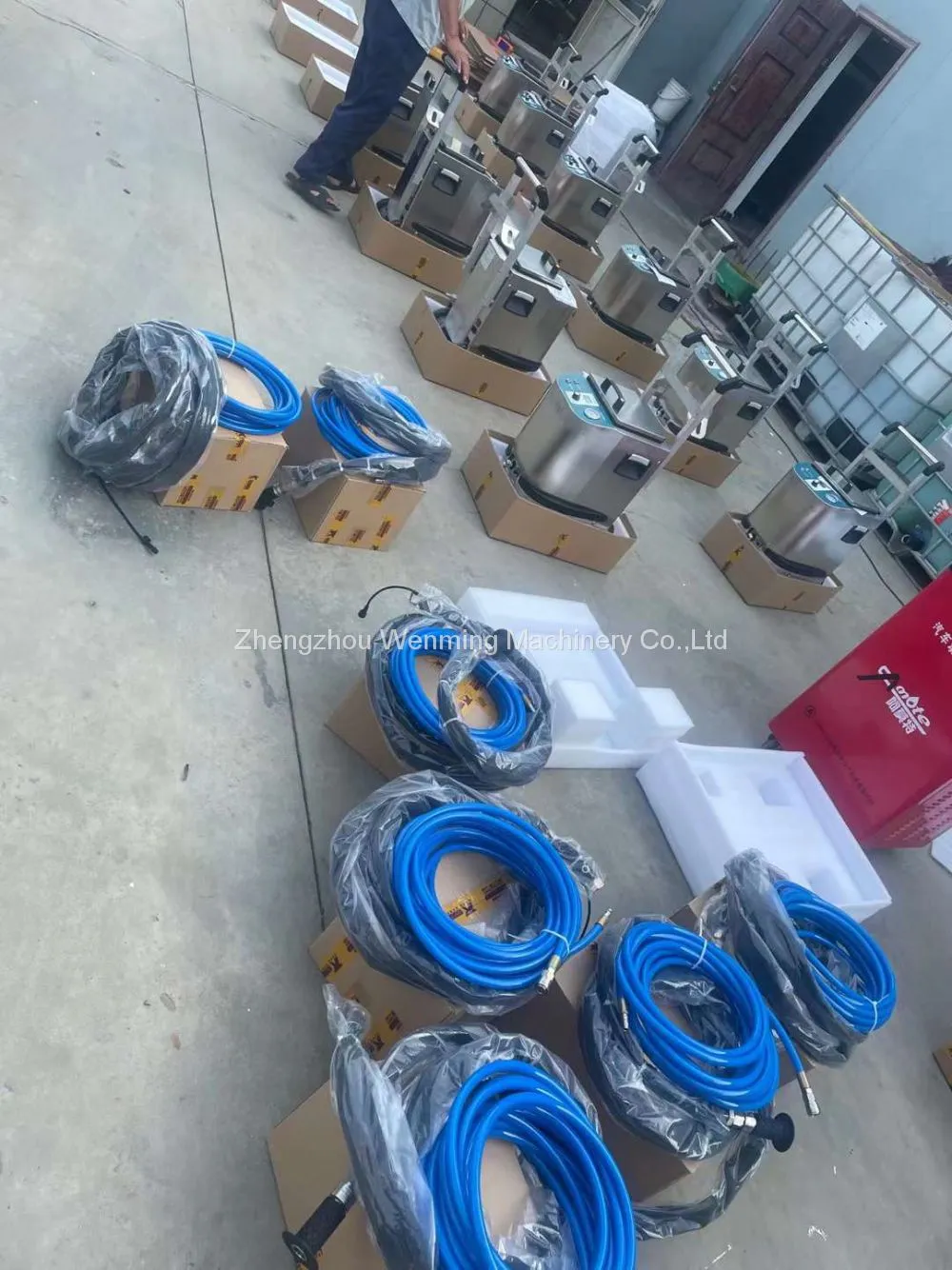

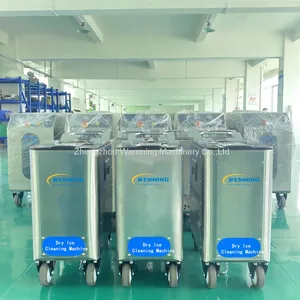

Dry Ice Cleaning Machine in our warehouse
