Chinese New 1.0ton Crawler Digger Mini Excavator for Sale
US$ 3880 - 4490
MOQ: 6 Sets
Key Specifications
Get Latest Price
Brand Name:
Bitsman
Place of Origin:
China
Model Number:
BSM10
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2022 New Design 1.6ton Front Wheel Loader With ImplementsUS$ 7500 - 8500MOQ: 1 Set -
2022 New Design 1.6ton Front Wheel Loader With ImplementsUS$ 7500 - 8500MOQ: 1 Set
-
2.5ton Integral Chassis Frame Backhoe LoaderUS$ 29900 - 50000MOQ: 1 Set
-
2.5ton Articulated Chassis Frame Backhoe LoaderUS$ 29900 - 50000MOQ: 1 Set
-
Genuine Rexroth Hydraulic A4VG90DG Piston Pump Rexroth Parker Genuine New Excavator Hydraulic Vane Gear Oil PumpNegotiableMOQ: 1 Piece
Brand Name
Bitsman
Place of Origin
China
Model Number
BSM10
Certification
CE
After-sales Service Provided
Overseas service center available
Condition
New
Machine Weight
910kg
Moving Type
Crawler Excavator
Rated Speed
15
Maximum Digging Depth
1681mm
Maximum Digging Height
1784mm
Bucket capacity
0.025cbm
Operating Weight
1000kg

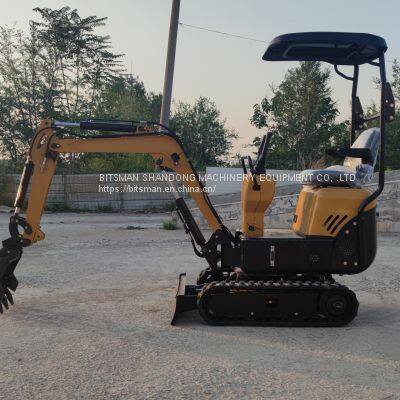

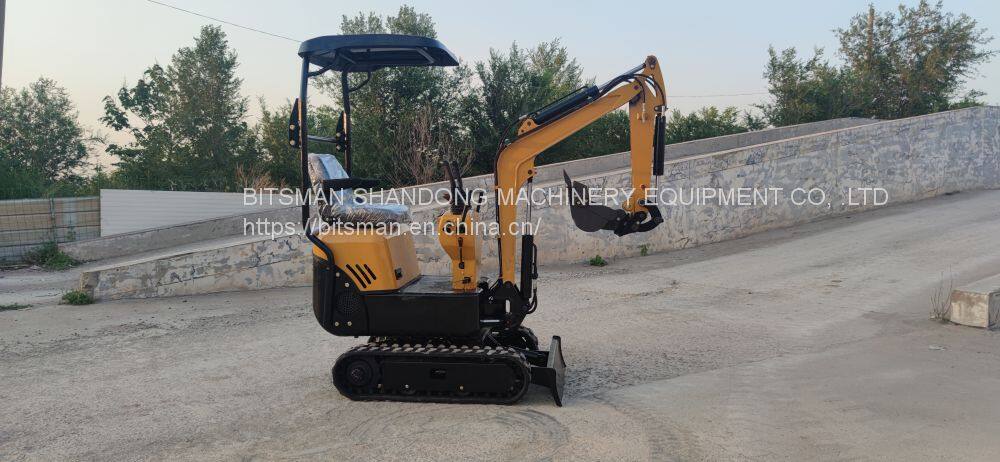

Chinese new 1.0ton Crawler Digger Mini Excavator for sale
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
| No. | Item | Model | Unit | BSM10 (Euro 5) |
| 1 | Basic | Operating weight | kg | 910 |
| 2 | Bucket capacity | m³ | 0.025 | |
| 3 | Engine model | KOOP KD192F-1 | ||
| 4 | Rated power | kw/r/min | 7.0/3000 | |
| 5 | Hydraulic System | Hydraulic pump model | China Brand | |
| 6 | Max.flow | L/min | 18 | |
| 7 | Working pressure | Mpa | 17 | |
| 8 | Control valve model | China Brand | ||
| 9 | Swing motor model | RMR-315 | ||
| 10 | Travel motor model | R6K-310 | ||
| 11 | Capacity | Fuel tank capacity | L | 8.3 |
| 12 | Hydraulic oil tank capacity | L | 15.3 | |
| 13 | Working Range | Travel speed | km/h | 1.9 |
| 14 | Swing speed | r/min | 13 | |
| 15 | Max. climbing degree | % | 58 | |
| 16 | Arm digging force | KN | 4.6 | |
| 17 | Bucket digging force | KN | 7.2 | |
| 18 | Average grounding pressure | Kpa | 20 | |
| 19 | Dimensions | A-Overall length | mm | 2949 |
| 20 | B-Overall width | mm | 930 | |
| 21 | C-Overall height (to top of boom) | mm | 1095 | |
| 22 | D-Overall height (to top of cab) | mm | 2219 | |
| 23 | E-Counterweight ground clearance | mm | 362 | |
| 24 | F-Min. ground clearance | mm | 134 | |
| 25 | G-Tail swing radius | mm | 834 | |
| 26 | H-Track Ground Length | mm | 900 | |
| 27 | J-Track length | mm | 1233 | |
| 28 | K-Track gauge | mm | 740 | |
| 29 | L-Track width | mm | 920 | |
| 30 | M-Track shoe width | mm | 180 | |
| 31 | N-Turntable width | mm | 917 | |
| 32 | O-Max. digging height | mm | 2637 | |
| 33 | P-Max. dumping height | mm | 1784 | |
| 34 | Q-Max. digging depth | mm | 1681 | |
| 35 | R-Max. vertical wall digging depth | mm | 1569 | |
| 36 | T-Max. digging reach | mm | 3084 | |
| 37 | U-Max. digging reach at ground level | mm | 3003 | |
| 38 | V-Min. swing radius | mm | 1390 | |
| 39 | X-Distance between center of rotation and tail length | mm | 833 | |
| 40 | Z-Height of counterweight | mm | 530 | |
| 41 | A1-Ground length (in transportion) | mm | 2348 | |
| 42 | Arm length | mm | 798 | |
| 43 | Boom length | mm | 1480 |
