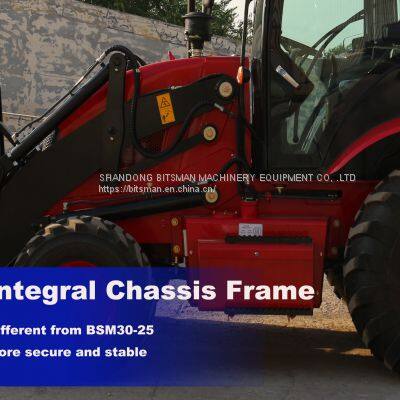

Help Center2.5ton Integral Chassis Frame Backhoe Loader
Related Products
-
2.5ton Articulated Chassis Frame Backhoe LoaderUS$ 29900 - 50000MOQ: 1 Set -
2022 New Design 1.6ton Front Wheel Loader With ImplementsUS$ 7500 - 8500MOQ: 1 Set
-
2022 New Design 1.6ton Front Wheel Loader With ImplementsUS$ 7500 - 8500MOQ: 1 Set
-
Chinese New 1.0ton Crawler Digger Mini Excavator for SaleUS$ 3880 - 4490MOQ: 6 Sets
-
Original Sany Backhoe Excavator Loader 240160 Rims 61019658 for Sany Backhoe Loader PartsUS$ 455.82 - 701.26MOQ: 2 Pieces
i. The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking
ii. Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.

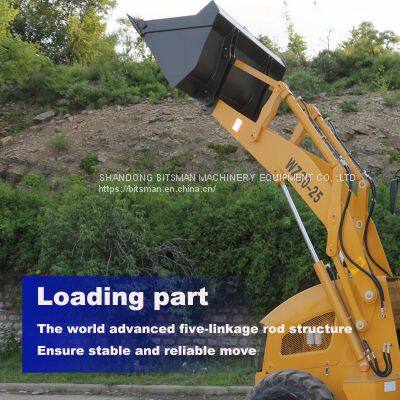

iii. Mining, loading function all lead control, light and flexible, high operating efficiency.

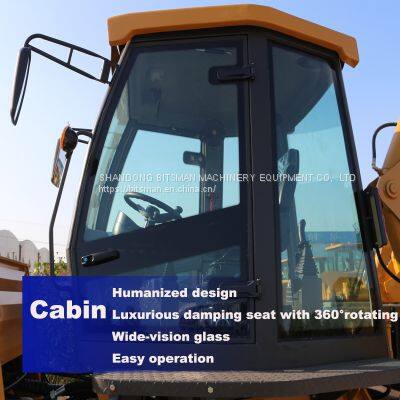

iv. Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.
v. Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.
vi. The design of the front flip cover greatly improves the maintenance of the entire machine.
vii. A variety of accessories can be selected to complete a variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations
| Item | Model | BSM38 |
|
| Transport Dimension | Overall Operating Weight | 8200KG | |
| L*W*H | 6230×2365×3752 | ||
| Wheel base | 2200mm | ||
| Min. Ground Clearance | 300mm | ||
| Bucket Capacity | 1.0m3 | ||
| Breakout Force | 38KN | ||
| Loading Lifting Capacity | 2500KG | ||
| Bucket Dumping Height | 2650mm | ||
| Bucket Dumping Distance | 1025mm | ||
| Digging Depth | 52mm | ||
| Backhoe Capacity | 0.3 m3 | ||
| Max. Digging Depth | 4085mm | ||
| Swing Angle of Excavator Grab | 190o | ||
| Max. Pulling Force | 39KN | ||
| Engine | Model | YC4A105Z-T20 | |
| Type | turbocharging four-stroke | ||
| Cylinder-Inside Diameter*Stroke | 4—105 | ||
| Rated Power | 75KW/100HP | ||
| Rated Speed | 2400r/min | ||
| Min. Fuel Consumption | 235g/kw.h | ||
| Max.Torque | 310NM | ||
| Displacement | 4.3L | ||
| Steering System | Model of Steering Device | BZZ5-250 | |
| Steering Angle | ±36 o | ||
| Min. turning radius | 6581mm | ||
| Pressure of the system | 12Mpa | ||
| Axle | Manufacturer | Feicheng Axle Factory | |
| Main Transmission Type | Double Reduction | ||
| Final Reducer | Single Stage Final Reducer | ||
| Rated Loader of Axle | 4/18.5t | ||
| Transmission System |
Torque Converter |
Model | YJ280 |
| Type | Single-stage Three Elements | ||
| Max. Efficiency | 84.40% | ||
| Inlet Pressure | 0.4Mpa—0.55 Mpa | ||
| Outlet Pressure | 1.2Mpa—1.5 Mpa | ||
| Cooling Method | Oil-cooling Pressure Circulation | ||
| Gearbox | Type | Fixed Shaft Power Transmission | |
| Oil Pressure of Clutch | 1373Kpa—1569 Kpa | ||
| Gears | Two Gears Ahead, Two Gears Astern | ||
| Max.Speed | 22Km/h | ||
| Tyre | Model | 14-17.5/19.5L-24 | |
| Pressure of Front wheel | 0.22 Mpa | ||
| Pressure of Back Wheel | 0.22 Mpa | ||
| Brake System | Service Brake | Air Over Oil Caliper Brake | |
| External Type | |||
| Self-regulation | |||
| Self-balance | |||
| Emergency Brake | Operation Power Implementing brake | ||
| Manual Operation Power Terminating Brake | |||
| Hydraulic System | Digging Power of Excavator Grab | 46.5KN | |
| Digging Power of Dipper | 31KN | ||
| Bucket Lifting Time | 5.4S | ||
| Bucket Lowering Time | 3.1S | ||
| Bucket Discharge Time | 2.0S | ||
