Home > Instruments & Meters > Test Instrument > Test Machine > 2000kN Digital Display Concrete Compressive Strength Testing Machine YES-2000
2000kN Digital Display Concrete Compressive Strength Testing Machine YES-2000
US$ 4000 - 9800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ASTM
Place of Origin:
China
Model Number:
YES
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Related Products
-
2000kN Hydraulic Concrete Press Test Machine + Compression Testing Machine YESUS$ 4000 - 9800MOQ: 1 Set -
Computer Control Full Automatic Concrete Brick Tile Compression and Bending Strength Tester YAW-300CUS$ 7000 - 15000MOQ: 1 Set
-
Concrete Brick Tile Universal Compression and Flexural Strength Tester YAW-300CUS$ 7000 - 15000MOQ: 1 Set
-
Cement Concrete Compression Tester / Automatic Compression Testing Machine YAW-300CUS$ 7000 - 15000MOQ: 1 Set
-
Cement Bending Compression Testing Machine/Cement Flexural & Compression Testing Machine YAW-300CUS$ 7000 - 15000MOQ: 1 Set
Brand Name
ASTM
Place of Origin
China
Model Number
YES
Power
Hydraulic
Usage
Compression Testing Machine

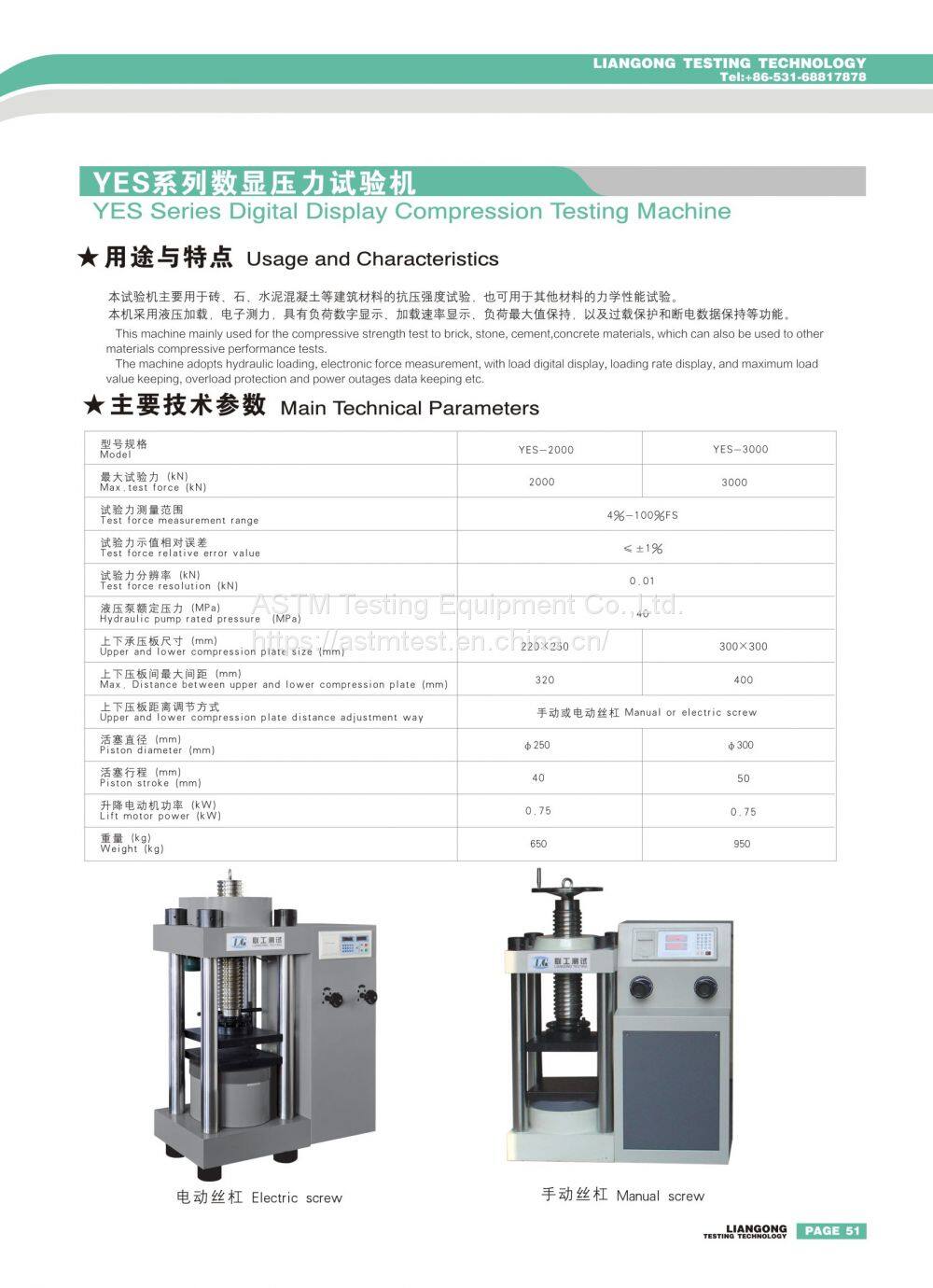

1 Function
This machine mainly used for the compressive strength test to brick, stone, cement, concrete materials, which can also be used to other materials compressive performance tests.

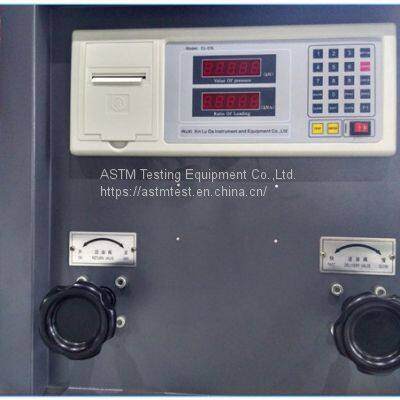

The machine adopts hydraulic add load, electronic force measurement, with load digital display, add load rate display, and keep the maximum load value, overload protection and power outages data keep etc.
2 Technical parameters
Max. testing force | 3000kN |
Measurement range | 4%-100%FS |
Relative error of test force value: | ±1% |
Leading screw adjusting mode | Electronic |
Motor power | 1.1 KW |
Pressure plate size | 500*500mm |
Max. distance between up and below pressure plate | 500mm |
Max. piston stroke | 100mm |
Piston diameter | φ250mm |
System work pressure | 40Mpa |
Host dimension(mm) | 1000*500*1500 |
Weight | 800Kg |
