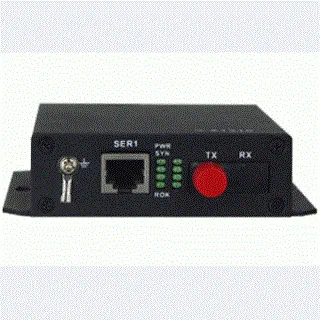

Help Center4channel Dry Contact Closure Over Fiber Converter Modem
Related Products
PRODUCT CHARACTERISTIC
Based on the integrated circuit intellectual property rights;
The input switch normally open and close automatically, when the input state, switch output that is why state, convenient opening;
The switch quantity of other switch state stability in the boot state or fiber no access, no chaos motion state;
Provide 1~4 way dry contact;
A switch interface lightning reaches IEC61000-4-5 (8/20 μ S) differential mode: 6KV, impedance (2); common mode: 6KV, impedance (2) standard;
The optional AC 220V, DC -48V, DC +24V, DC power supply positive and negative pole points (this device supports only DC +5V supply).Fiber Interface
Optical interface: SC/FC
Optical core: single fiber
Optical Wavelenth: 1310 nm/1550nm
Sending consumption: -8dBm/-14dBm
Receiving and dispatching module:>-6dBm
Optical receiver receiving sensitivity:
Dynamic range receiving: >-30dB
Optical code:NRZ
Transmit distance: single-mode with 20KM.Multi-mode with 2km
Dry contact
Response time:
Delay time: 0.5ms
Switch signal: 30VDC/0.5A
Connector: RJ45
Frequency response: 20HZ/S
Power supply
DC5V
Power Consumption:
environment condition
Operating temperature: 0C~+50 C
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
Dimension
103mm(L)
93mm(W)
28mm(H)
