Home > Products > ADF Series Multi-circuits Energy Meter > ADF400L Multi-circuits Energy Meter ADF400L-4H(2S)(6D)
ADF400L Multi-circuits Energy Meter ADF400L-4H(2S)(6D)
- 1000 Piece / Pieces per Month
- T/T Credit Card
- ADF400L Multi-circuits Energy Meter ADF400L-6H(3S)(9D)
- ADF400L Multi-circuits Energy Meter ADF400L-8H(4S)(12D)
- ADF400L Multi-circuits Energy Meter ADF400L-8H(4S)(12D)
- ADF400L Multi-circuits Energy Meter ADF400L-10H(5S)(15D)
- ADF400L Multi-circuits Energy Meter ADF400L-12H(6S)(18D)
- ADF400L Multi-circuits Energy Meter ADF400L-7S(21D)
Product Description
ADF400L-4H(2S)(6D) Multi-Circuits Energy Meter
Introduction
ADF400L series multi-channel energy meter,through the way of combination module can realize largest 36 circuits single-phase or 12 circuits three-phase,CT connect or direct connect . this series of energy meter with high accuracy, high concentrain, centralized management, installation flexibility, the advantages of each other noninterference by the community,schools enterprise of all areas. The series of meters support prepaid power function.
Production Descripion

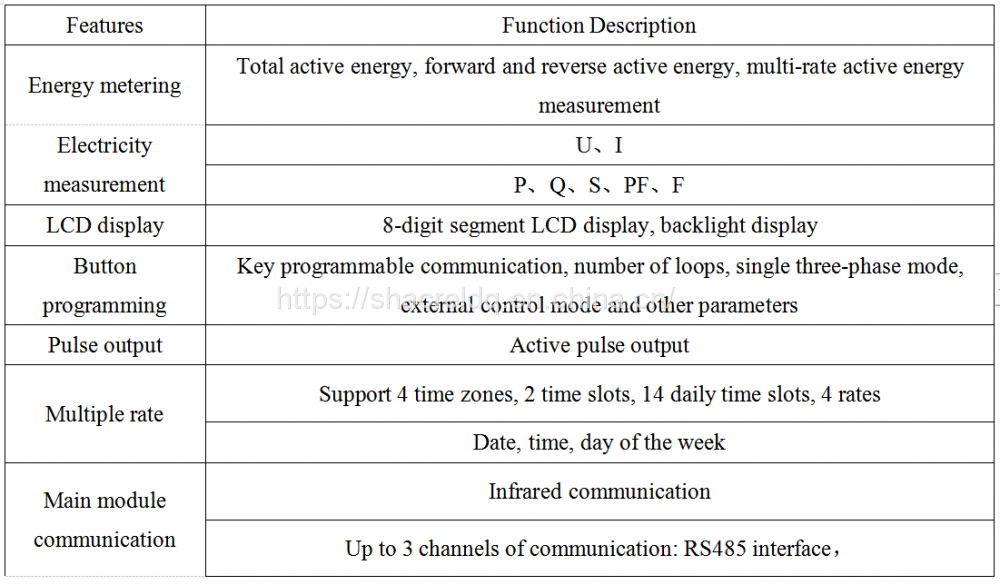

Main Function

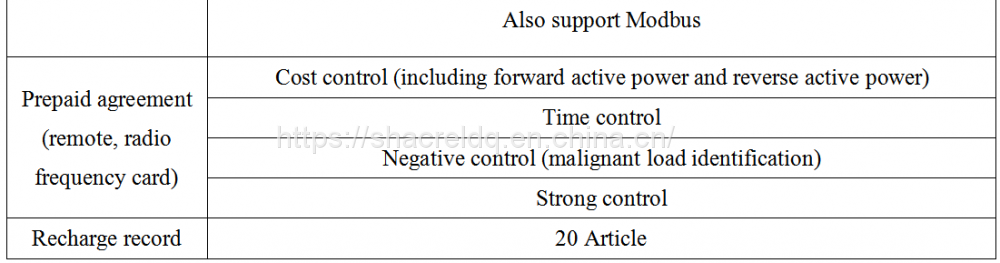

Prepaid

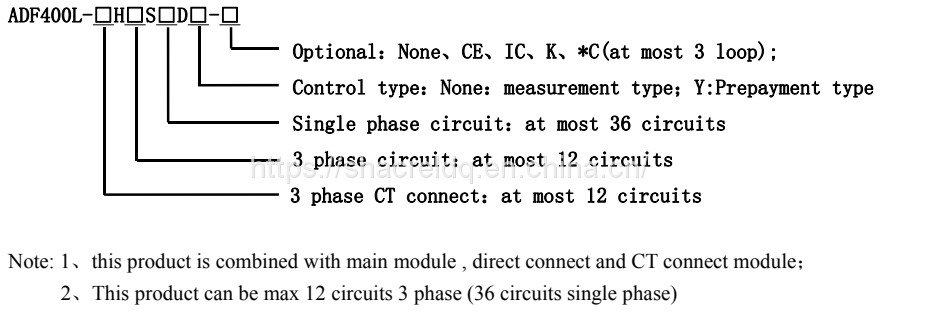

Metering Type

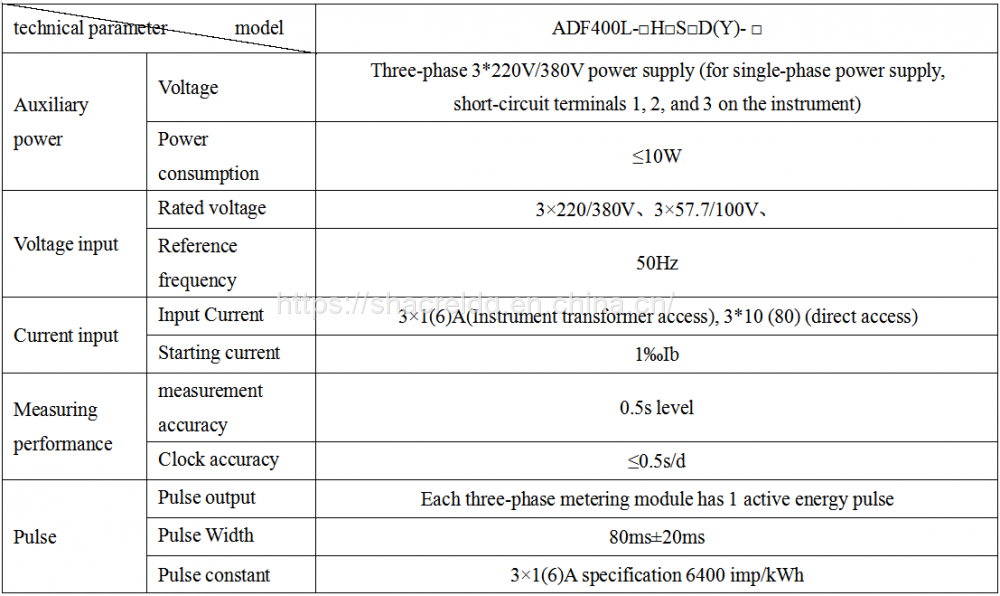

Technical parameter

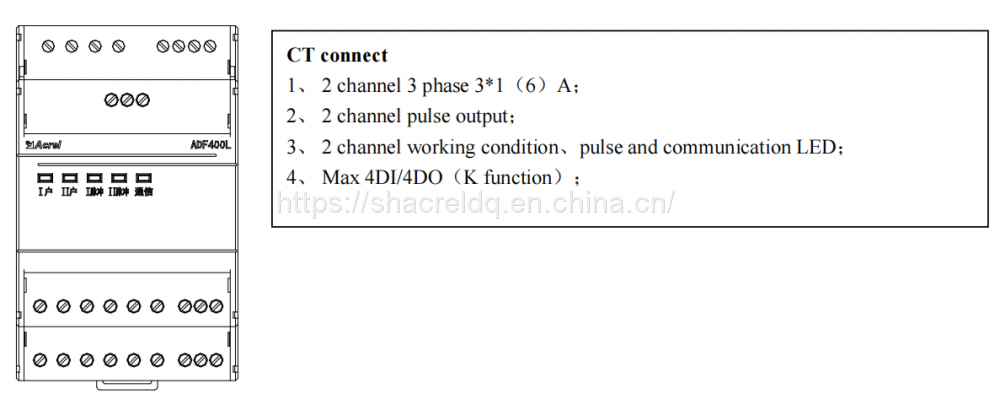

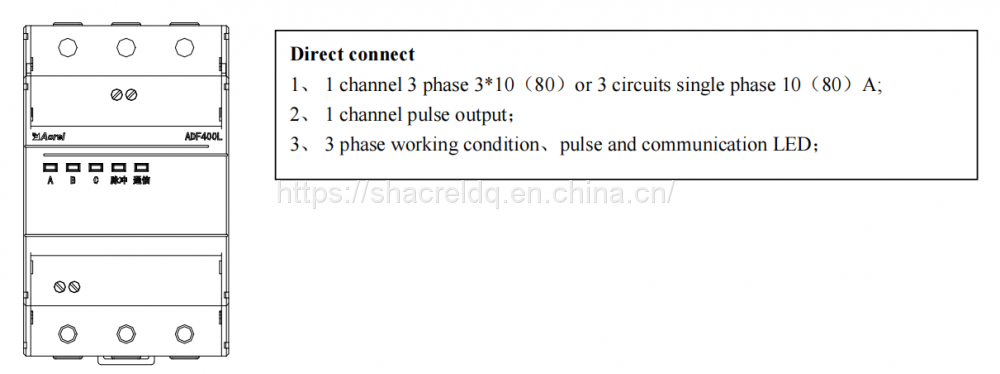

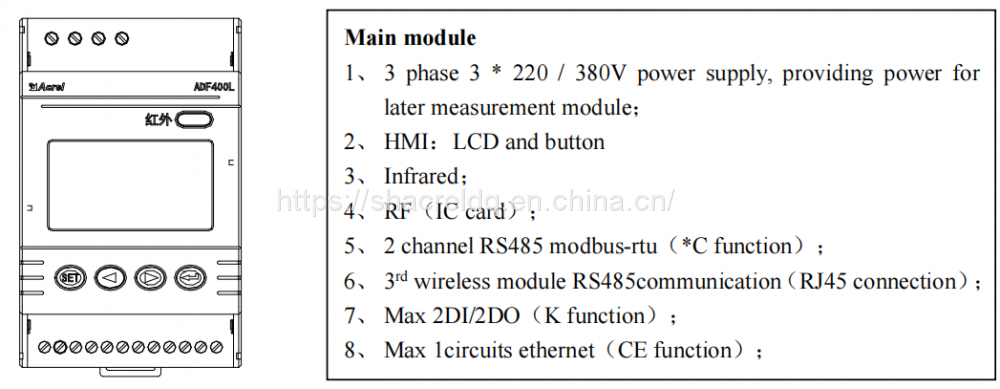

Product Description

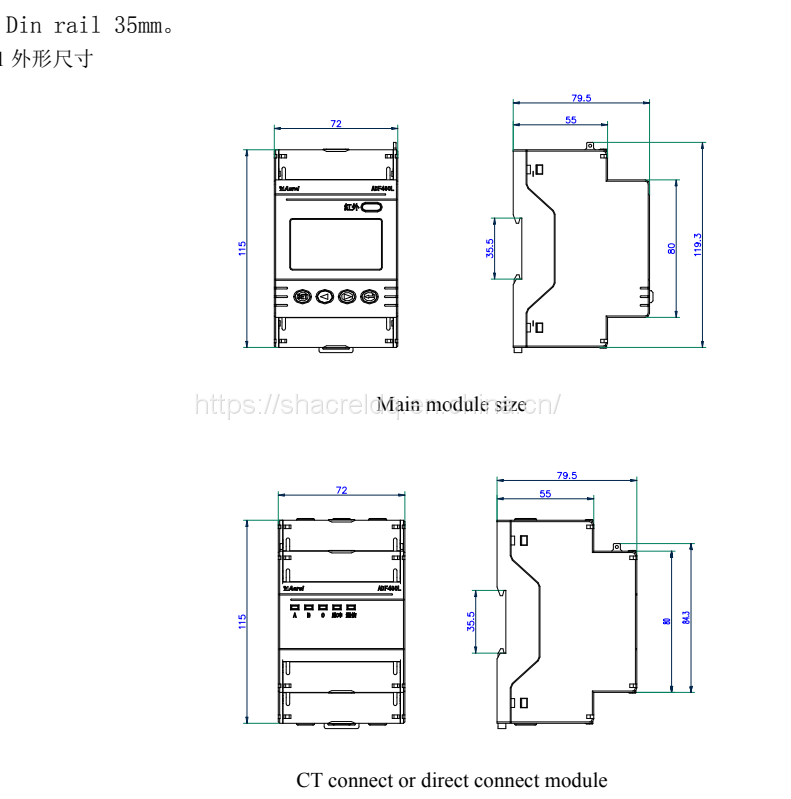

Size

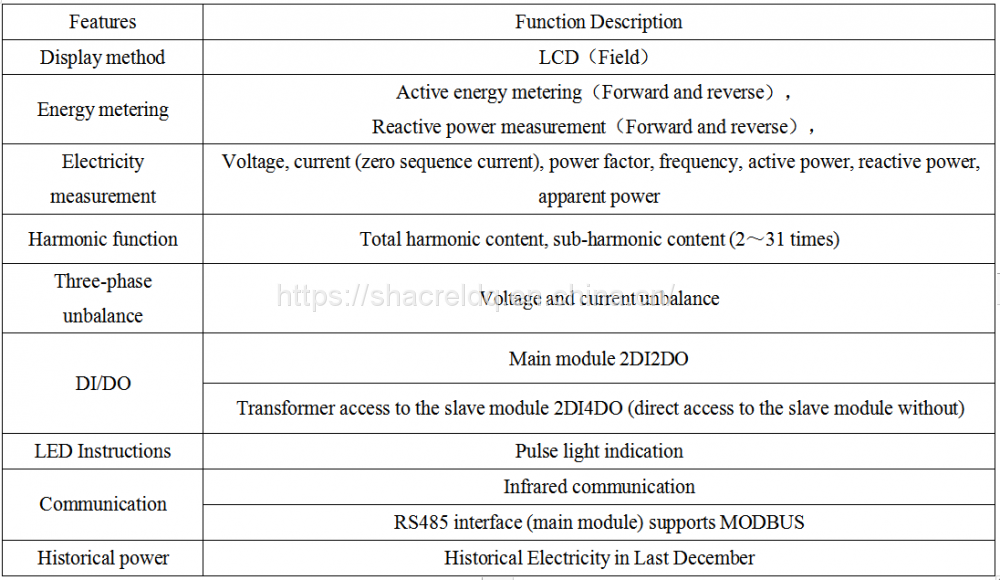

Characteristic
Model | ADF400L-2H(1S)(3D) | ADF400L-4H(2S)(6D) | ADF400L-6H(3S)(9D) | ADF400L-6D |
Channel | 2 channel 3 phase 1 channel 3 phase | 4 channel 3 phase 2 channel 3 phase 3 circuits single phase | 6 channel 3 phase 3 channel 3 phase 9 circuits single phase | 3 circuits single phase |
Current input | 3*1(6)A 3*10(80)A | 3*1(6)A 3*10(80)A 10(80)A | 3*1(6)A 3*10(80)A 10(80)A | 10(80)A |
Voltage input | 3*220/380V | 3*220/380V | 3*220/380V | 220V |
Price (FOB Shanghai) | $155 | $155 | $155 | $155 |
ADF400L | ADF400L-2H | ADF400L-6H(3 S)(9D) | ADF400L-8H(4S)(12D) | ADF400L |
3 phase | 2 channel 3 phase /1channel 3 phase /3 circuits single phase | 6 channel 3 phase/ 3 channel 3 phase / 9 circuits single phase | 8 channel 3 phase/ 4 channel 3 phase/ 12circuits single phase | 3 Phase |
3*220/380V | 3*1(6)A /10(80)A | 3*1(6)A 3*10(80)A 10(80)A | 3*1(6)A 3*10(80)A 10(80)A | 3*220/380V |
$74 | $148 | $296 | $370 |
