Acrel ADF400L Multi Circuits Single Phase Up to 36 or 12 Circuits Prepaid Postpaid For Industrial Din Rail Electricity Meter
US$ 51.8 - 74
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADF400L
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ADF400L Multi-circuits Power Meter Multi Channel Energy Meter Prepaid Optional Single/Three Phase Din Rail Energy MeterUS$ 51.8 - 74MOQ: 1 Piece -
Acrel DIN Rail RS485 ADF400L Prepaid Meter 3 Phase and Single Phase Combination Multi Circuits Energy Meter With CE CertificateUS$ 51.8 - 74MOQ: 1 Piece
-
Multi-circuits Prepaid Smart Energy Meter DIN Rail 4G WiFi LoRa Optional 220 380V (50Hz) 3 Phase Electricity Meter Pre PaidUS$ 51.8 - 74MOQ: 1 Piece
-
Acrel ADF400L Multi-circuits Prepaid Power Meter 80A AC Direct Connection RS485 Ethernet Infrared Din Rail Electricity MeterUS$ 51.8 - 74MOQ: 1 Piece
-
Multi-circuits Prepaid Energy Meter ADF400L 1-phase&3-phase Prepaid Postpaid Phase Electronic Energy Meter With High QualityUS$ 51.8 - 74MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ADF400L
Phase
Three Phase
Output Voltage
3*220/380V/230V
Operating Temperature
-20℃~+60℃
Dimensions
72*79.5*115mm
Display Type
Digital Only
Accuracy Class
0.5S
Measuring Energy Range
0-99999.9kWh

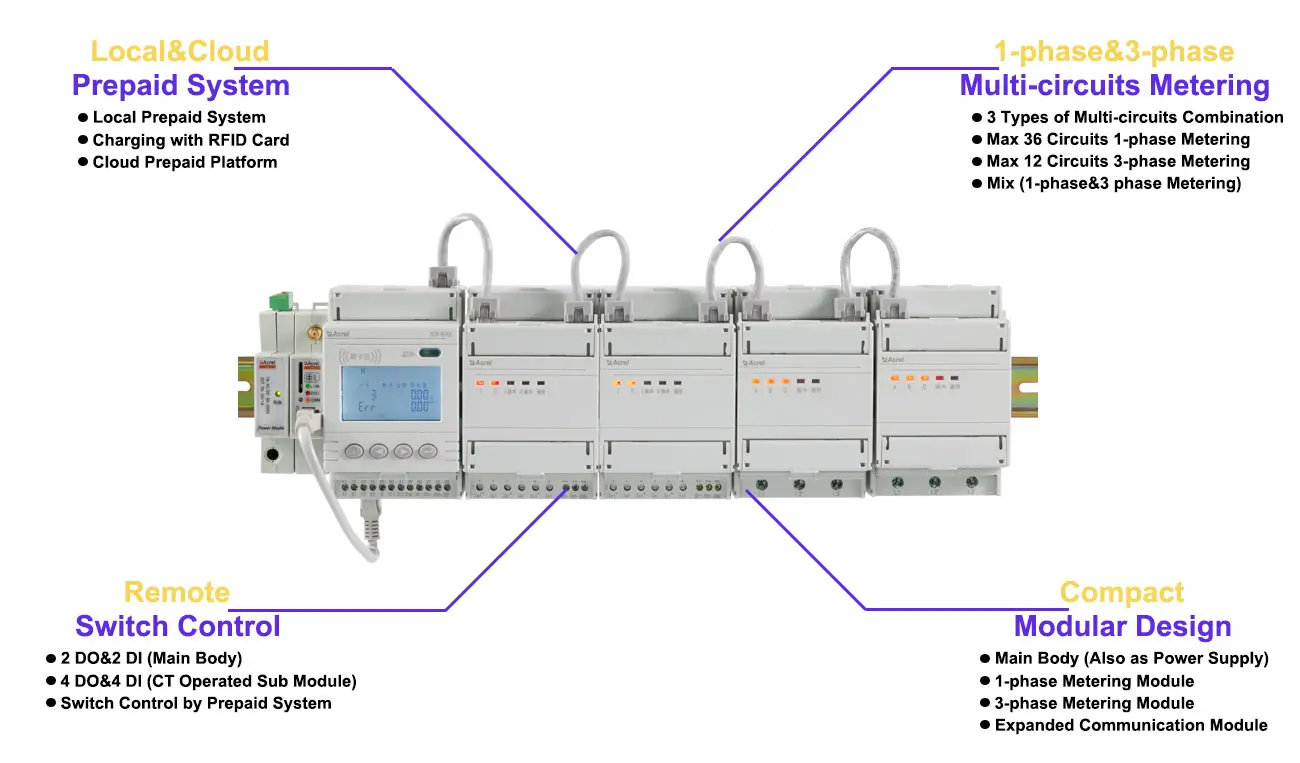

Multi-circuits Prepaid Energy Meter ADF400L (1-phase&3-phase)
The ADF400L series multi-user electric energy meter can achieve up to 12 three-phase or 36 single-phase direct access measurement or 12 three-phase mutual inductor access measurement, a hybrid of direct access and mutual inductor access through module combination measurement method. This series of electric energy meters are popular among communities, schools, enterprises, etc. due to their high accuracy, centralized installation, centralized management, high installation flexibility, and non-interference.
● Application: Prepaid&Postpaid (See about Acrel Prepaid Solution)
● Monitoring: Up to 36 Circuits 1-phase or 12 Circuits 3-phase or Mixed
● Measurement: 1-phase&3-phase kWh (Class 0.5S), kVarh, Active Power, Reactive Power, Current, Voltage and etc
● Rated Voltage: 3x220/380V (50Hz)
● Rated Current: 80A AC (direct connection); 3x1(6)A AC (via CTs)
● Communication (Main Body): RS485 (MODBUS-RTU); Ethernet; Infrared
● Communication (Expanded): 4G; WiFi; LoRa
● Remote Control: DO&DI
● Installtion: 35mm DIN Rail
● Power Supply: 3*220/380V or 220V AC
● Standard&Certificate: CE
