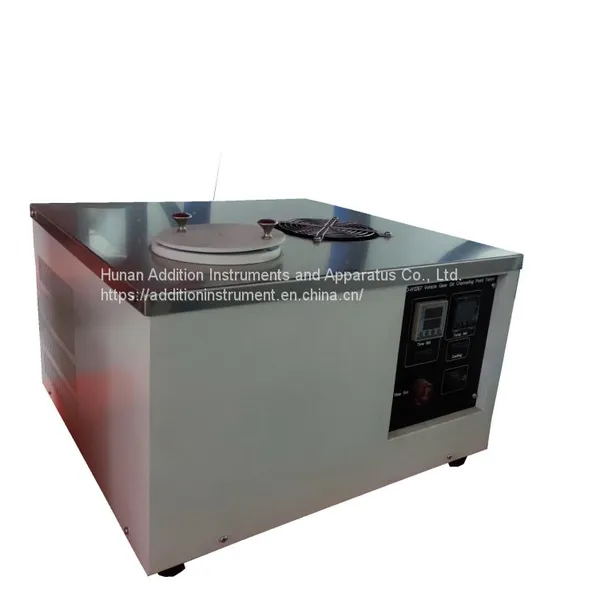

Help CenterLubricant Gear Oil Channel Point Tester SH/T0030
Related Products
-
Evaporation of Rust Preventive Oils TesterNegotiableMOQ: 1 Set -
Lubricating Grease Relative Viscosity TesterNegotiableMOQ: 1 Set
-
Automatic Lubricating Oil Evaporation Loss Tester ASTM D5800NegotiableMOQ: 1 Set
-
Rusting Grease Oxygen Inhalation Tester JIS K2246NegotiableMOQ: 1 Set
-
Automatic Engine Oil Oxidation Stability Tester Thin Film Oxygen Absorption Method ASTM D4742NegotiableMOQ: 1 Set
Introduction
This instrument is mainly suitable for testing the groove-forming properties of lubricants. When using the instrument, store the container containing the sample at the test temperature for 18 hours, then use a steel sheet to scrape a groove on the sample to observe whether the sample flows back and completely covers the bottom of the container within 10 seconds to judge the grooved characteristics of the sample.
Technical Parameters
1. Applicable standard: SH/T0030
2. Temperature control method: high-quality PID digital temperature controller
3. Temperature control accuracy: -60±0.2℃
4. Refrigeration method: imported dual compressor refrigeration
5. Timing method: digital display timer
6. Power of the whole machine: 1000W
7. Working power supply: AC220V50HZ
8. Instrument size: 500*480*290mm
9. Net weight: 48KG
Functional characteristics
1. The instrument adopts the double-compressor cascade refrigeration from Danfoss in Germany, which is environmentally friendly refrigerant and has a fast cooling speed.
2. Double-layer stainless steel cold bath, built-in medium, no need to add coolant, good heat preservation effect.
3. Integral structure, easy to move.
4. The instrument is made of cold-rolled steel plate, and the surface is electrostatically sprayed, which has the functions of corrosion resistance and easy cleaning.
5. The instrument welding adopts touch welding technology, no solder joints, beautiful appearance and generous appearance.
