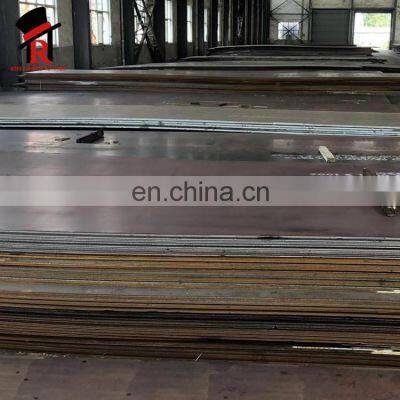

Help CenterCheap Price Surfacing Wear Resistant Carbon Steel Plates for Silos
Related Products
-
Hot Rolled Nm450/hardox450 Nm500/hardox500 Wear Resistant Steel Plate per TonNegotiableMOQ: 1 -
Hardox400 Hardox500 Wear Resistant Steel Plate / Overlay Steel SheetNegotiableMOQ: 1
-
Hardox450 Hardox500 Hardox600 Wear Resistant Steel Metal Plate SupplierNegotiableMOQ: 1
-
NM360 NM400 NM500 NM600 Wear Resistant Steel Plate on SaleNegotiableMOQ: 1
-
Galvanized Iron Pipe 6 Inch Diameter gi Pipes Galvanized Steel Pipe SectionsNegotiableMOQ: 1
|
Product Name |
Wear Resistant Steel Sheet / Wear Resistant Steel Plate |
|
Standard Grade
|
GB:NB300,NM360,NM400,NM450,NM500,NM550 |
|
ASTM:AR360,AR400F,AR400,AR500,AR500F |
|
|
JIS:HARD400,HARD450,HARD500,HARD600 |
|
|
DIN:XAR400,XAR450,XAR500,XAR600 |
|
|
SWE:HARDOX400,HARDOX450,HARDOX500,HARDOX600 |
|
|
Technique |
Hot rolled or cold rolled |
|
Surface Treatment |
Blasting, painting, cleaning or customized |
|
Length |
4m-12m for reference or customized |
|
Width |
0.6m-3m for reference or customized |
|
Thickness |
3mm-300mmfor reference or customized |
|
Thickness Tolerance |
±0.1mm |
|
Application
|
Widely used in a variety of architectural and engineering structures,such as |
| 1.) metal constructions such as buildings,bridges,ships; | |
|
2.) transmission tower, reaction tower; |
|
| 3.) lifting transportation machinery; | |
|
4.) industrial furnace;boilers |
|
|
5.) container frame, warehouse goods shelves, etc |
|
Mechanical Property |
||||
|
Grade |
Tensile strength |
Elongation |
Hardness |
-20℃ Impact energy |
|
(Mpa) |
(%)(min) |
(HBW) |
AKv/J (min) |
|
|
NM360 |
≥1100 |
12 |
330-390 |
24 |
|
NM400 |
≥1200 |
10 |
370-430 |
24 |
|
NM450 |
≥1250 |
7 |
420-480 |
24 |
|
Mechanical Property |
|||
|
Grade |
Yield strength (Mpa) |
Hardness (HB) |
Impact energy |
|
HARDOX400 |
900-1100 |
370-430 |
45J/-40℃ |
|
HARDOX450 |
1100-1300 |
425-475 |
50 J/-40℃ |
|
HARDOX500 |
1250-1400 |
470-540 |
37 J/-40℃ |
|
HARDOX550 |
525-575 |
30 J/-40℃ |
|
|
HARDOX600 |
550-640 |
||
|
Steel/Grade |
C |
Si |
Mn |
P |
S |
AL |
Cr+Ni+Mo |
Nb+V+Ti |
|
NM360/AR36 |
0.10-0.30 |
0.20-0.40 |
1.00-2.00 |
≤0.015 |
≤0.003 |
≥0.20 |
<0.6 |
Trace Amount |
|
NM400/AR40 |
0.10-0.40 |
0.20-0.40 |
1.00-2.00 |
≤0.015 |
≤0.003 |
≥0.20 |
<0.9 |
|
|
NM450/AR45 |
0.10-0.40 |
0.20-0.40 |
1.00-2.00 |
≤0.015 |
≤0.003 |
≥0.20 |
<1.2 |
|
|
NM500/AR50 |
0.10-0.40 |
0.20-0.45 |
1.00-2.00 |
≤0.015 |
≤0.003 |
≥0.20 |
<1.5 |
|
|
NM550/AR55 |
0.10-0.50 |
0.20-0.45 |
1.00-1.50 |
≤0.015 |
≤0.003 |
≥0.20 |
<2.0 |
|
|
NM600/AR60 |
0.10-0.50 |
0.20-0.45 |
1.00-1.50 |
≤0.015 |
≤0.003 |
≥0.20 |
<2.5 |
|
