Product Description

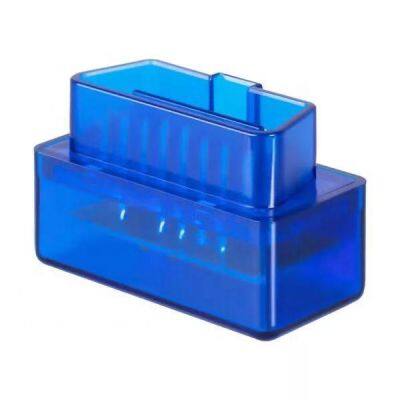

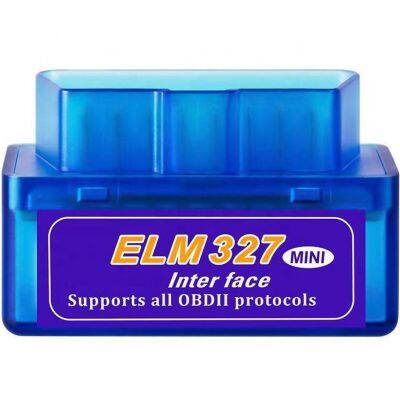

V1.5 Super Mini ELM327 OBD2 Scanner ELM 327 wireless connection For Multi-brands CAN-BUS Supports All OBD2 Model
Description:
ELM327 V2.1 OBD2 Software read diagnostic trouble codes, both generic and manufacturer-specific, and display their
meaning (over 3000 generic code definitions in the database).

Top Three Reasons to get Mini ELM327:
1. Software Version: V2.1
Hardware version: V1.5
2. Works with all OBD-II compliant vehicles
3. Wireless

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Parameters Which Could be Read From Your Vehicle:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code
definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
etc.
Specification
Item
OBD2 ELM327 blueteeth Wireless scanner
Function
Read diagnostic trouble codes， Clear trouble codes and turn off the MIL etc...
Firmware Version
V1.5
Support
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4
Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible software
Window : ScanMaster-ELM, , PCMSCAN ELM, etc.
Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
iOS: Auto Doctor, Mini OBDII

Symbian : OBDScope
Packing & Delivery
Packing list:
1* ELM327 V1.5 Diagnostic Interface

Package:
Polybag Package + Standard Carton case package or OEM as your request

Delivery Time:
3-7 working days for samples; 7-30 working days for bulk goods.
Alibaba Trade Assurance can assure all your benefits during the whole deal, contact sales to know more!
3 Colors Optional:
1. Blue
2. White
3. Black
